The A2 Physics Parallel Plate Experiment focuses on investigating the relationship between current and the area of overlap of parallel plates. It includes detailed questions and calculations related to electrical circuits, including the effects of varying plate area on current flow. This resource is designed for A-Level Physics students preparing for examinations, providing practical applications of theoretical concepts. The document encompasses various experimental setups, calculations, and graphing techniques essential for understanding electrical principles.
Key Points
Explores the relationship between current and plate area in parallel plate circuits.
Includes calculations for current and area overlap with uncertainties.
Covers graphing techniques for analyzing experimental data.
Discusses the impact of frequency and voltage on current flow.
This link leads to an external site. We do not know or endorse its content, and are not responsible for its safety. Click the link to proceed only if you trust this site.
FAQs of A2 Physics Parallel Plate Experiment Questions
What is the main objective of the A2 Physics Parallel Plate Experiment?

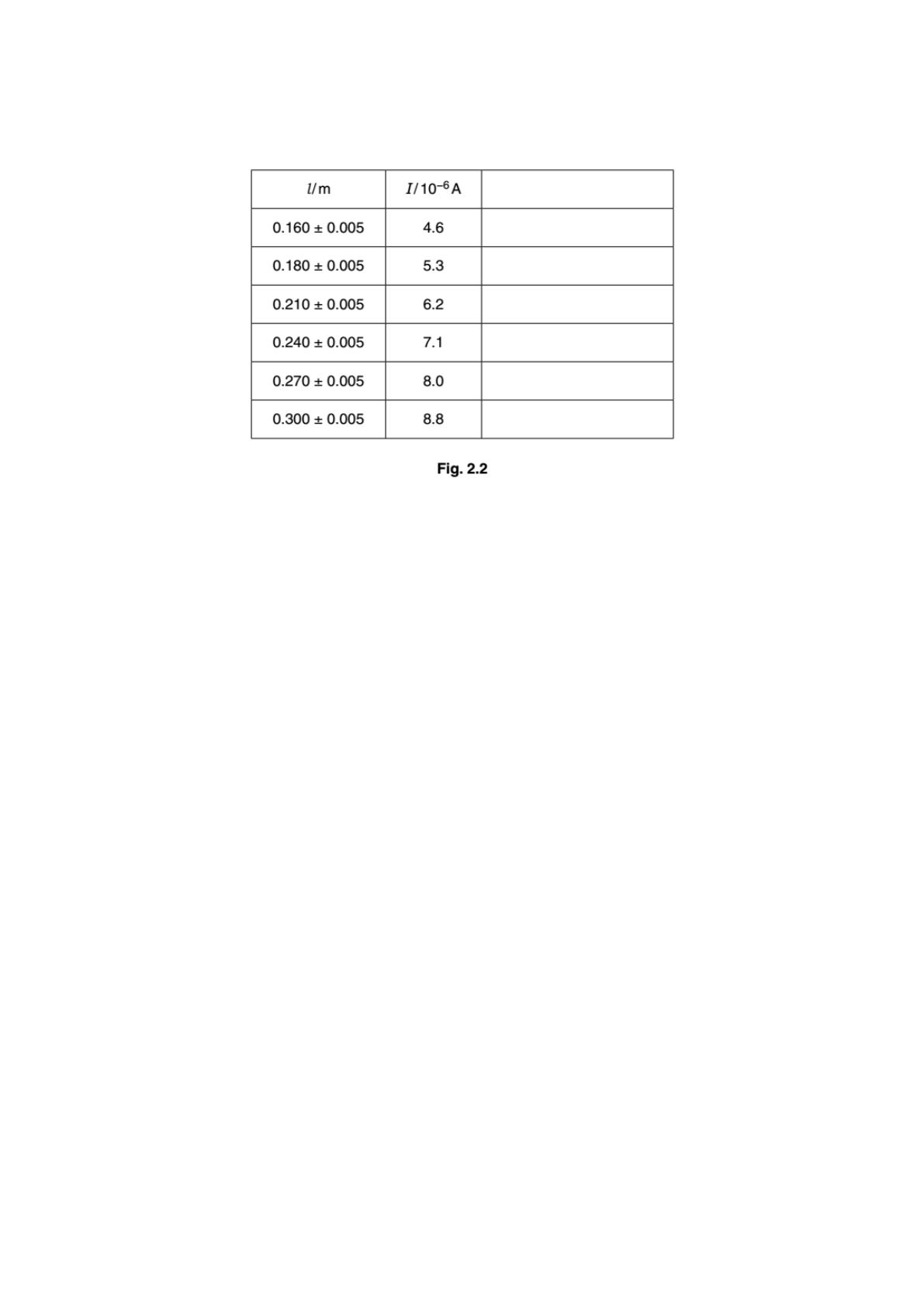

The main objective of the A2 Physics Parallel Plate Experiment is to investigate how the current varies with the area of overlap between two parallel plates. Students measure the current and the length of overlap to determine the relationship between these variables. This experiment helps in understanding fundamental concepts in electricity and circuit behavior, particularly in relation to the effects of plate area on current flow.
How do students calculate the area of overlap in the experiment?
Students calculate the area of overlap using the formula X = wl, where w represents the width of the plates and l is the length of overlap. This formula allows for the determination of the effective area that influences the current flowing through the circuit. Accurate measurements of both width and length are crucial for obtaining reliable results in the experiment.
What types of graphs are plotted in the A2 Physics experiment?

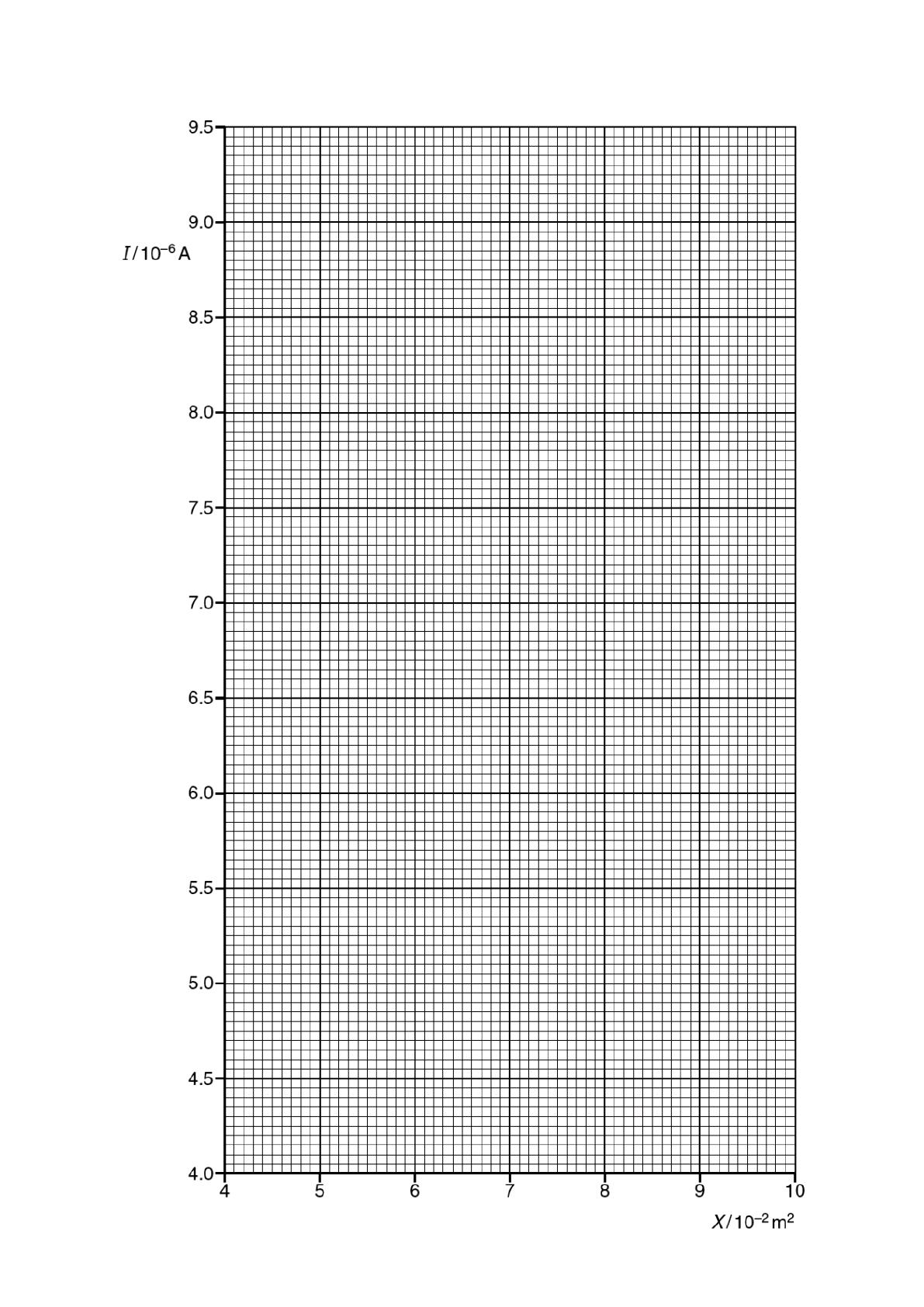

In the A2 Physics experiment, students plot graphs of current (I) against the area of overlap (X). These graphs help visualize the relationship between the two variables and allow for the determination of the gradient, which can be related to the physical constants involved in the experiment. Error bars are also included to represent uncertainties in measurements, providing a clearer understanding of the data's reliability.
What is the significance of the gradient in the experiment's graph?
The gradient of the graph plotted in the A2 Physics experiment represents the relationship between current and the area of overlap of the plates. It provides insights into how changes in the area affect the current, allowing students to derive important physical constants related to the circuit. Understanding this relationship is essential for grasping the principles of electrical circuits and their practical applications.
What additional factors are considered in the A2 Physics experiment?

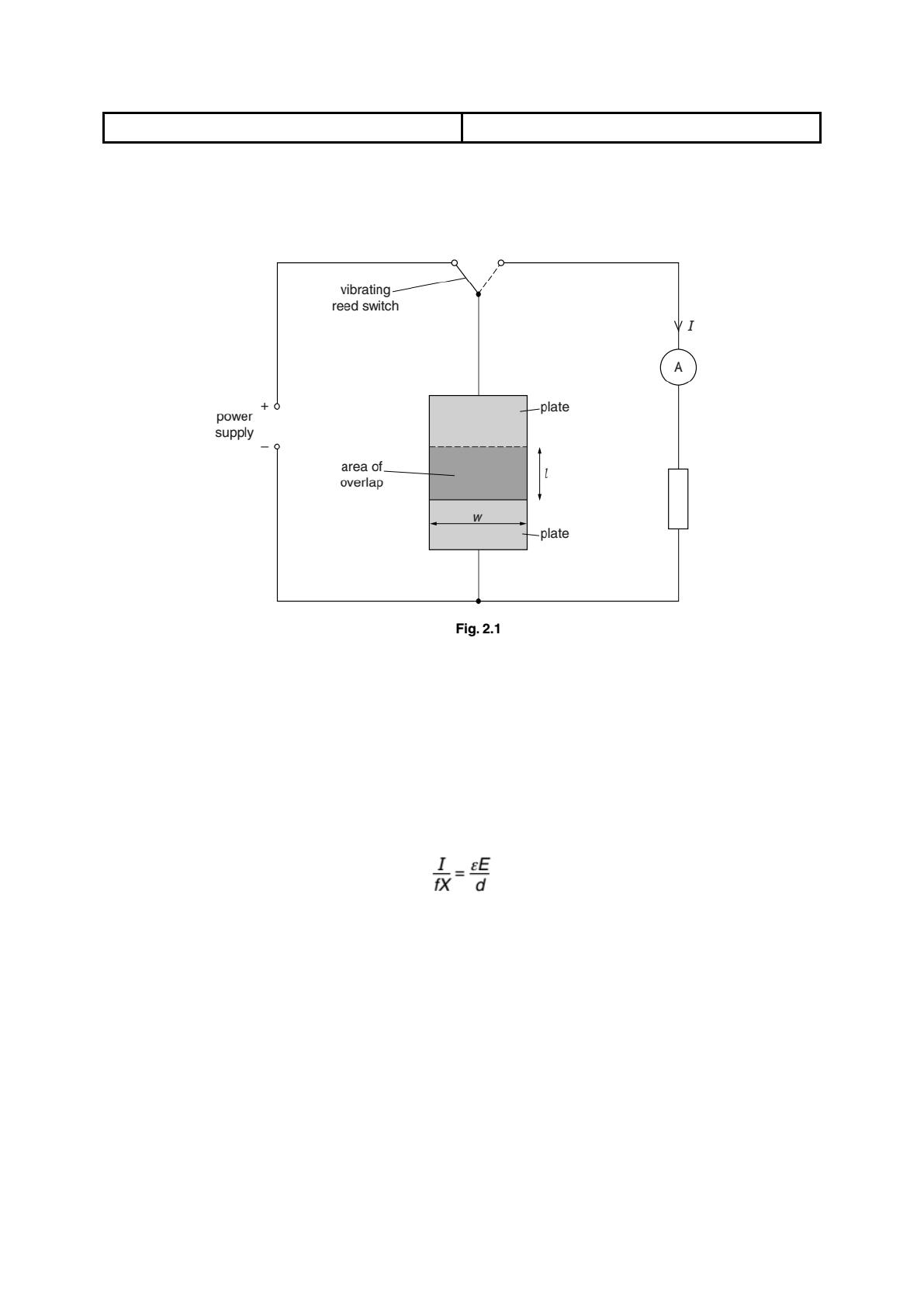

In addition to measuring current and area, the A2 Physics experiment considers factors such as the electromotive force (e.m.f.) of the power supply, frequency of the vibrating reed switch, and the separation distance between the plates. These factors influence the overall behavior of the circuit and are essential for a comprehensive analysis of the experiment's results.
