ASSIGNMENT 4
Deepmalika Das/T11/21
AIM:
Design a DWH Schema for recording grades of students enrolled in various courses of
various semesters for a university. Design Star schema, Snowflake schema and
Factless Fact table for recording their attendance.
THEORY:
A data warehouse is a centralized system used to store and organize large amounts of
data for analysis and reporting. It supports decision-making by separating analytical
processing from daily transactions. Data in a warehouse is structured using tables, such
as fact and dimension tables, to make querying efficient and meaningful.
Star Schema
Star Schema is a commonly used multidimensional model in data warehousing. It
consists of a central fact table connected directly to multiple dimension tables, forming a
star-like structure. The fact table stores quantitative data, while dimension tables store
descriptive attributes. This schema uses fewer foreign-key joins, making queries simpler
and faster. Due to its simple design and high query performance, star schema is widely
used for reporting and analytical
purposes.
Snowflake Schema
Snowflake Schema is a multidimensional model that is an extension of the star schema.
In this schema, dimension tables are further normalized into subdimension tables,
creating a snowflakeshaped structure. It includes fact tables, dimension tables, and
sub-dimension tables. While this design reduces data redundancy and saves storage
space, it requires more joins, which can make queries more complex and slower
compared to star schema.
Fact Table
A fact table is the central table in a data warehouse that stores measurable and
quantitative business data. It contains numerical values such as sales amount, quantity
sold, or profit, along with foreign keys that reference dimension tables. Fact tables
support calculations, trend analysis, and performance measurement across different
dimensions like time, product, or location.
Factless Fact Table
A factless fact table is a special type of fact table that does not contain numerical
measures. Instead, it stores only foreign keys to dimension tables to record the
occurrence or non occurrence of events. The presence of a record indicates that an
event happened, while the absence indicates it did not. Factless fact tables are
commonly used to track activities such as attendance, enrollment, eligibility, or
participation. star schema and snowflake schema provide structured approaches for
organizing data in a data warehouse, each serving different analytical needs. Fact
tables and factless fact tables further support data analysis by capturing measurable
values and event-based information. Together, these components form the foundation of
efficient data storage, querying, and decision support in modern data warehousing
systems.
QUERY:

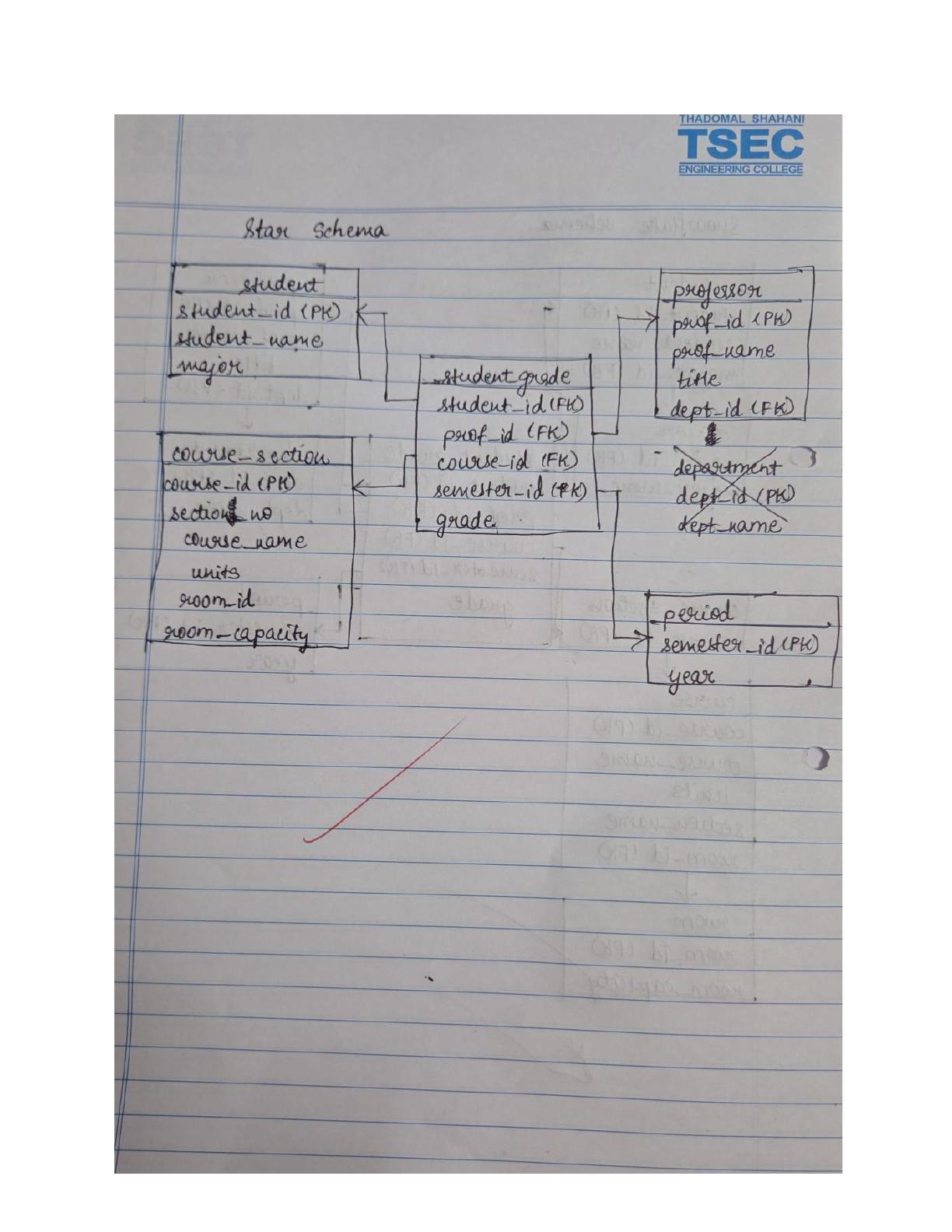

The Mumbai University wants you to help design a star schema to record grades for
course completed by students. There are four dimensional tables namely
course-section, professor, student, period with attributes as:-
1. Course-section - course_id, section_no, course_name, units, room_id,
room_capacity. During a given semester the college offers an average of 500 course
sections.
2. Professor : prof_id, prof_name, title, dept_id, dept_name.
3. Student : student_id, student_name, major. Each course section has an average of
60 students.
4. Period : semester_id, year. The database will contain data for 30 months periods.
The only fact that is to be recorded in the fact table is course grade.
