1. What is Cyclomatic Complexity?
The cyclomatic complexity of a code section is the quantitative measure of the number of
linearly independent paths in it. It is a software metric used to indicate the complexity of a
program. It is computed using the control flow graph of the program. The nodes in the graph
indicate the smallest group of commands of a program, and a directed edge in it connects the
two nodes i.e. if the second command might immediately follow the first command.
Formula for Calculating Cyclomatic Complexity
M = E - N + 2P
Where
M = C yclomatic Complexity.
E = the number of edges in the control flow graph
N = the number of nodes in the control flow graph
P = the number of connected components
Example:

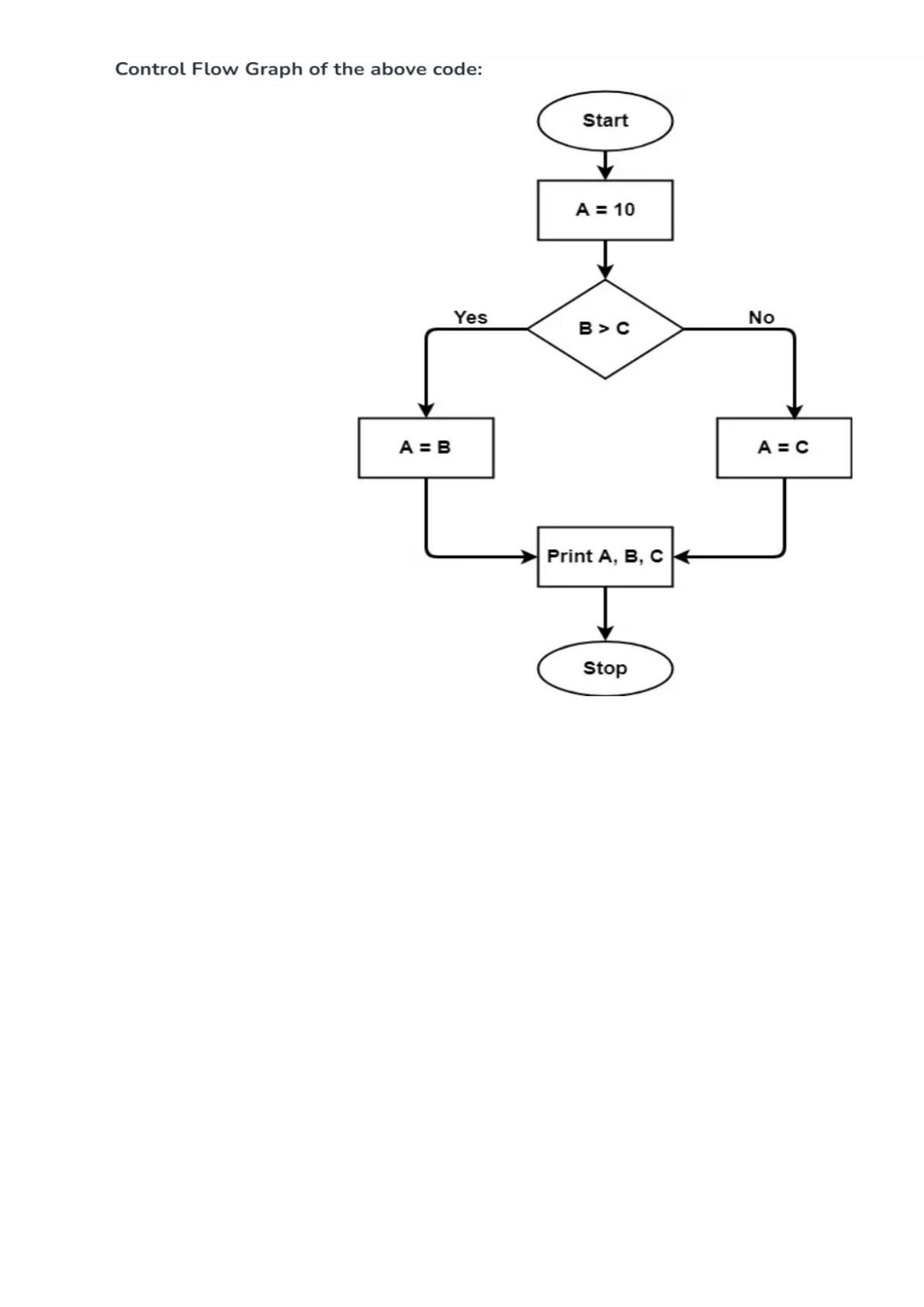

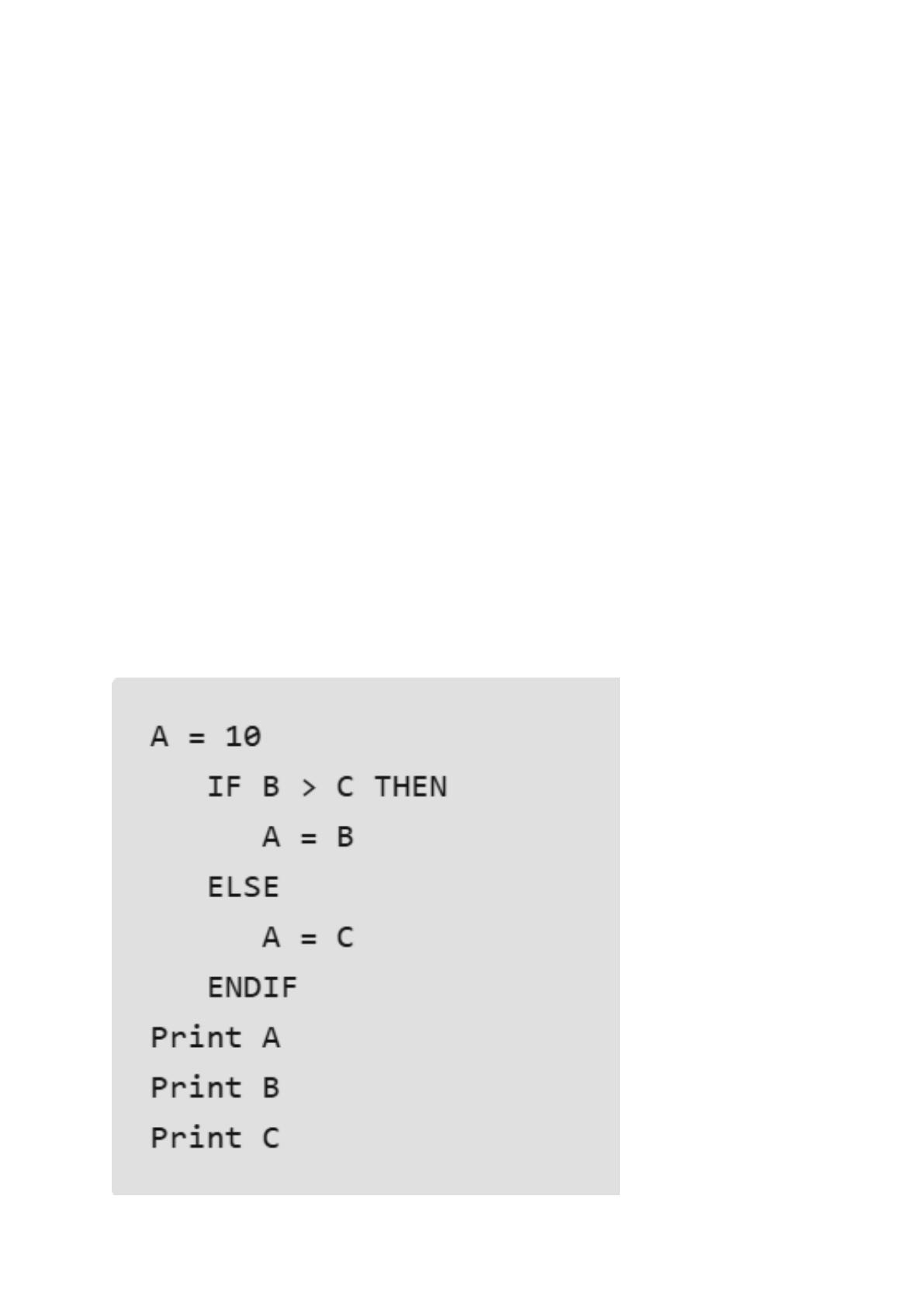

The cyclomatic complexity calculated for the above code will be from the control flow graph.
The graph shows seven shapes(nodes), and seven lines(edges), hence cyclomatic
complexity is 7-7+2*1 = 2.
Here ,
M = E - N + 2P
Where
E =7
N = 7
P = 1
