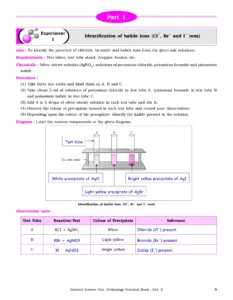

Navneet Science And Technology Practical Book : Std. X 5
Part 1
Experiment 1 Identification of halide ions (Cl –, Br
– and I – ions)
Aim : To identify the presence of chloride, bromide and iodide ions from the given salt solutions.
Requirements : Test tubes, test tube stand, dropper, beaker, etc.
Chemicals : Silver nitrate solution (AgNO3), solutions of potassium chloride, potassium bromide and potassium
iodide.
Procedure :
(1) Take three test tubes and label them as A, B and C.
(2) Take about 5 ml of solutions of potassium chloride in test tube A, potassium bromide in test tube B
and potassium iodide in test tube C.
(3) Add 4 to 5 drops of silver nitrate solution in each test tube and stir it.
(4) Observe the colour of precipitate formed in each test tube and record your observations.
(5) Depending upon the colour of the precipitate, identify the halide present in the solution.
Diagram : Label the various components in the given diagram.
White precipitate of AgCl Bright yellow precipitate of AgI
Light yellow precipitate of AgBr
Test tube
Identification of halide ions (Cl –, Br – and I – ions)
Observation table :
Test Tube Reaction / Test Colour of Precipitate Inference
A KCl + AgNO3 White Chloride (Cl –) present.
B KBr + AgNO3 Light yellow Bromide (Br –) present.
C Kl + AgNO3 Bright yellow Iodide (I –) present.
6 Navneet Science And Technology Practical Book : Std. X
Chemical reactions :
(1) KCl(aq) (Potassium chloride)
+ AgNO3 (aq) (Silver nitrate)
KNO3 (aq) (Potassium nitrate)
+ AgCl(s) ¯
(White precipitate of silver chloride)
(2) KBr(aq) (Potassium bromide)
+ AgNO3 (aq) (Silver nitrate)
KNO3 (aq)
(Potassium nitrate)
+
AgBr ¯
(Light yellow precipitate of silver bromide)
(3) KI(aq) (Potassium iodide)
+ AgNO3(aq) (Silver nitrate)
KNO3 (aq)
(Potassium nitrate)
+
AgI ¯
(Bright yellow precipitate of silver iodide)
Inferences :
(1) Halide ions (Cl –, Br–, I –) are precipitated in all the three reactions of above experiments.
(2) In the above experiment, depending on the colour of the precipitates, presence of Cl –, Br– and I – in the
given solutions are confirmed.
(3) Elements of halogen group in the periodic table show similar properties.
Multiple Choice Questions
• Choose the correct alternative and write its letter (A), (B), (C), (D) in the box : Ans.
1. The number of electrons in the outermost shell of halogens is .
(A) 1 (B) 2 (C) 3 (D) 7
D
2. is in solid state at room temperature.
(A) Fluorine (B) Iodine (C) Chlorine (D) Bromine
B
3. Which of the following substances is the strongest reducing agent?
(A) Cl2 (B) Cl – ion (C) Br (D) Br – ion
D
Date :
Teacher’s Signature :
Remember :
(1) All halogen elements are oxidizing agents.
(2) Precipitation reactions produce insoluble salts.
Navneet Science And Technology Practical Book : Std. X 7
Experiment 2 Identification of the type of reaction
Aim : To identify the type of reaction.
(A) Combustion of magnesium strip in air.
(B) Action of dilute sulphuric acid on zinc.
(C) Effect of heat on lead nitrate.
Requirements : Burner or spirit lamp, matchbox, candle, splinter, hard glass test tube, test tubes, test tube
holder, pair of tongs, beaker, sandpaper, watchglass or china dish, glass rod, candle, etc.
Chemicals : Magnesium ribbon, zinc dust, dilute sulphuric acid, lead nitrate powder, blue litmus paper.
( A ) Combustion of magnesium strip in air
Procedure :
(1) Take a piece of magnesium strip. Using pair of
tongs hold it on the flame of a burner.
(2) Collect the remaining ash in watchglass or china
dish.
(3) Identify the type of reaction, record the observation
and write the chemical reaction.
Observation table :
Reaction / Test Magnesium strip is burnt. 2Mg + O2 IIIJ 2MgO
Number of reactants 2
Number of products 1
Features of the
reaction
There are two reactants and a single product.
Magnesium burns with bright flame.
This is a chemical change.
Type of reaction Combination reaction.
Chemical reaction : 2Mg (s) (Magnesium strip) (Magnesium oxide) (Oxygen)
O2 (g) 2MgO(s) +
Observations :
(1) The magnesium strip burns with luminous flame.
(2) A white coloured powder remains behind.
Inference : In this reaction, two reactants combine to form one product. Therefore, this is a Combination
reaction. A new substance MgO is formed in the reaction. Hence this change is a chemical change.
Precautions :
(1) Magnesium strip should be held by a pair of tongs.
(2) It is better to use sunglasses to protect your eyes from dazzling light of burning magnesium strip.
Diagram :
Combustion of magnesium strip in air
8 Navneet Science And Technology Practical Book : Std. X
(B) Action of dilute sulphuric acid on zinc
Procedure :
(1) Take a big hard glass test tube and fix with clamp stand.
(2) Take some zinc dust in a test tube.
(3) Add 3 to 4 ml of dilute sulphuric acid in it so that the zinc dust gets
immersed in the acid.
(4) Fix a cork having a delivery tube with a fine jet, immediately on the
mouth of a test tube.
(5) Take a lighted candle near the mouth of a fine jet.
(6) Record your observations.
(7) Identify the type of reaction. Write the chemical reaction.
Observation table :
Reaction / Test Dilute sulphuric acid is added to zinc. Zn + H2SO4 ® ZnSO4 + H2
Number of reactants 2
Number of products 2
Features of the
reaction
There are 2 reactants and 2 products.
Hydrogen from H2SO4 gets displaced by zinc metal.
Type of reaction Displacement reaction. This is a chemical change.
Chemical reaction : Zn(s) (Zinc) (Dil. sulphuric acid) (Hydrogen gas) (Zinc sulphate)
H2SO4 (l) H2 (g) ZnSO4 (s) + +
Observations :
(1) The reaction is very fast and colourless gas is obtained.
(2) The gas burns instantaneously with pop sound.
(3) Zinc dust disappears and colourless solution is obtained.
Inferences :
(1) When atom or group of atoms in one substance takes the place of atom or group of atoms in the other
substance to form new substances, are called displacement reactions.
(2) The hydrogen gas evolved in the reaction.
(3) Zn is more reactive than hydrogen. Therefore, the more reactive Zn displaces the less reactive hydrogen
from sulphuric acid and a colourless solution is obtained.
Precautions :
(1) Handle acid very carefully.
(2) Do not inhale the gas evolved.
(3) Hydrogen gas burns with mild explosion, so a fine jet should be used to see the burning of hydrogen.
Diagram :
Reaction of H2SO4 with zinc
Navneet Science And Technology Practical Book : Std. X 9
(C) Effect of heat on lead nitrate [Pb(NO3)2]
Procedure :
(1) Take a small amount of lead nitrate white powder in a dry test tube. Hold the test tube with a test tube
holder.
(2) Heat the test tube over the flame of the burner.
(3) Place the moist strip of the blue litmus paper at the mouth of the test tube.
(4) Hold the glowing splinter at the mouth of the test tube.
(5) Record your observation.
(6) Identify the type of the reaction. Write the chemical reaction.
Observation table :
Reaction Lead nitrate is heated. 2Pb(NO3) 2 Heat PbO (s) + 4NO2 (g) m + O2 (g) m
Number of reactants 1
Number of products 3
Features of the reaction Simple substances are formed. This is a chemical change.
Type of reaction Decomposition reaction.
Chemical reaction : 2Pb(NO3) 2(s) (Lead nitrate)
Heat
(Nitrogen dioxide) (Oxygen) (Lead oxide) 4NO2 (g) m O2 (g) m 2PbO (s) + +
Inferences :
(1) When two or more simpler substances are formed from a single compound, the reaction is called
decomposition reaction. Example : Heating lead nitrate.
(2) When lead nitrate is heated Nitrogen dioxide (NO2), Oxygen (O2) are given out and a yellow solid residue
of lead oxide (PbO) remains in the test tube.
(3) In this reaction, three simple substances are formed from a single compound. Therefore this reaction is
a Decomposition reaction.
(4) The Nitrogen dioxide gas evolved in this reaction is acidic in nature. Therefore blue litmus turns red.
The oxygen gas evolved in this reaction supports burning. Therefore glowing splinter keeps on glowing.
Precaution : Do not inhale the gases evolved in this reaction.
Multiple Choice Questions
• Choose the correct alternative and write its letter (A), (B), (C), (D) in the box : Ans.
1. Magnesium burns in air to produce .
(A) Mg(OH)2 (B) MgO (C) MgO2 (D) MgCl2
B
2. The reaction CuSO4 (aq) + Zn (s) ® ZnSO4 (aq) + Cu(s) is a reaction.
(A) displacement (B) double displacement
(C) decomposition (D) combination
A
10 Navneet Science And Technology Practical Book : Std. X
3. When lead nitrate is heated a yellow solid residue of is obtained.
(A) Lead dioxide (B) Lead oxide
(C) Lead trioxide (D) Lead sulphate
B
Date :
Teacher’s Signature :
Remember : Chemical reactions involve the breaking and making of bonds between atoms to produce new
substance.
Navneet Science And Technology Practical Book : Std. X 11
Experiment 3
Classification of the chemical reactions as (i) combination (ii) decomposition (iii) displacement (iv) double displacement reaction
Aim : To classify the given chemical reactions into the type (i) combination (ii) decomposition (iii) displacement
and (iv) double displacement.
(A) Action of water on quick lime (CaO).
(B) Effect of heat on ferrous sulphate crystals.
(C) Reaction of copper sulphate solution with iron nails.
(D) Reaction between sodium sulphate and barium chloride solutions.
Requirements : 250 ml beaker, china dish, asbestos sheet, dropper, hard glass test tubes, test tube holder,
test tube stand, sandpaper, filter paper, burner/spirit lamp.
Chemicals : Quick lime, ferrous sulphate crystals, iron nails, copper sulphate solution, sodium sulphate
solution, barium chloride solution, water.
(A) Action of water on quick lime
Procedure :
(1) Take about 10 g of quick lime (CaO) in a clean china
dish. Place the china dish on an asbestos sheet.
(2) Take some water in a beaker. With the help of a dropper
add a few drops of water on quick lime in the dish.
Record your observations.
Observation table :
Experimental procedure Observation
1. Water is added to quick lime.
Added water is converted into steam.
China dish becomes hot.
Hissing sound is produced.
2. The noise produced in the reaction.
Hissing sound.
3. The heat is absorbed or evolved
during the reaction.
Evolved.
4. A gas or vapour is formed during
the reaction.
Vapours are formed.
5. The change in the physical state.
Solid state gets converted into liquid state.
Chemical reaction : CaO(s) Calcium Oxide (Quick lime) (Water) Calcium Hydroxide (Slaked lime)
H2O(l) Heat Ca(OH)2 (aq) + +
Diagram :
Action of water on quick lime
12 Navneet Science And Technology Practical Book : Std. X
Inferences :
(1) The reaction between quick lime and water is exothermic reaction.
(2) Here calcium oxide and water react to form calcium hydroxide (slaked lime).
(3) This is an example of combination reaction.
(4) The clear solution obtained after the suspension settles is called lime water.
Precautions :
(1) Never put quick lime in water. It may cause the lime water splash out of the beaker and damage eyes
or skin.
(2) Do not touch or dip your finger in lime water.
(B) Effect of heat on ferrous sulphate crystals
Procedure :
(1) Take about 10 g of ferrous sulphate
crystals in a clean and dry hard
glass test tube. Observe the colour
of the crystals.
(2) Hold the test tube with a test tube
holder. Heat the test tube gently on
low flame of a burner for about 10
minutes.
(3) Note the smell and colour of the gas
evolved.
(4) Continue heating till the colour of
the residue in the test tube changes.
(5) Place the hot test tube on asbestos
sheet. Observe the colour of the
residue after cooling.
Observation table :
Experimental procedure Observation
1. The original colour of Ferrous
sulphate.
Light green
2. Ferrous sulphate is heated.
White powder of anhydrous ferrous sulphate is formed.
Finally it gives a mixture of Fe2O3, SO3 and SO2.
3. Colour of the gas evolved during
heating.
Colourless
4. The colour of the substance in
the cold test tube.
Light green
Chemical reaction : 2(FeSO4.7H2O) Fe2O3 (s) + SO2 (g) + SO3 (g) + 14H2O(g)
D
Diagram : Label the various components in the given diagram.
Hard glass test tube
Test tube holder
Ferrous sulphate crystals
Burner
Effect of heat on ferrous sulphate crystals
Navneet Science And Technology Practical Book : Std. X 13
Inferences :
(1) Light green crystals of ferrous sulphate on heating undergo decomposition. A mixture of SO3 and
SO2 gases formed.
(2) A residue of red colour remains in the test tube.
(3) This is an example of decomposition reaction.
Precautions :
(1) Use hard glass test tube for heating the substance.
(2) During heating, keep the test tube away from you.
(C) Reaction of copper sulphate solution on iron nails
Procedure :
(1) Take about 20 ml of copper sulphate solution in a test tube. Note its colour.
(2) Take 2 or 3 iron nails free from rust. Clean them with sandpaper and wash with water. Note the colour
of the iron nails.
(3) Place the iron nails in copper sulphate solution for about 15 minutes.
(4) Remove the nails from the solution, wash them with water and keep them on a filter paper to dry.
(5) Finally note the colour of the solution as well as the nails after reaction.
Diagram : Label the various components in the given diagram.
Iron nail (Steel grey)
Copper sulphate solution
(sky blue)
Ferrous sulphate solution
(light green)
Iron nail covered with
reddish brown copper
Before reaction After reaction
Observation table :
Experimental procedure Observation
1. Colour of copper sulphate solution
before the experiment.
The colour of copper sulphate solution before the experiment
is sky blue.
2. Colour of iron nail before the experiment.
Colour of iron nail before the experiment is steel grey.
3. Colour of copper sulphate solution after
the experiment.
Solution becomes light green after the experiment.
4. Colour of iron nail after the experiment.
The iron nail become reddish brown after the experiment.
14 Navneet Science And Technology Practical Book : Std. X
Chemical reaction : Fe(s) Iron (steel Grey) Copper sulphate (sky blue) Ferrous sulphate (light Green)
CuSO4 (aq) Cu(s) FeSO4 (aq) + +
Inferences :
(1) On immersing the brown coloured iron nails in blue coloured copper sulphate solution, they displace
copper from the copper sulphate solution and their colour becomes reddish.
(2) This is a displacement reaction.
Precaution : Clean the iron nails by rubbing with sandpaper for effective result.
(D) Reaction between sodium sulphate solution and barium chloride solution
Procedure : Diagram :
Reaction between sodium sulphate solution and barium chloride solution
(1) Take about 15 ml of sodium sulphate solution in a
clean beaker. Note its colour and appearance.
(2) Take about 5 to 10 ml of barium chloride solution in a
clean test tube. Note its colour and appearance.
(3) Add barium chloride solution to sodium sulphate
solution with constant stirring. Observe the changes
and note them.
Observation table :
Experimental procedure Observation
1. The colour and appearance of sodium
sulphate solution before the reaction.
The colour and appearance is clear and transparent.
2. The colour and appearance of barium
chloride solution before the reaction.
The colour and appearance is clear and transparent.
3. The colour and appearance of the
mixture after mixing two solutions.
White precipitate.
Chemical reaction : Na2SO4 (aq) Sodium sulphate (colourless) Barium chloride (colourless) Barium sulphate (white) Sodium chloride (colourless)
BaCl2 (aq) 2NaCl(aq) BaSO4 (s) ¯ + +
Inferences :
(1) In this chemical reaction, two new compounds are formed by mutual exchange of the components
(ions or radicals) of the two compounds. Such reactions are called double displacement reactions.
(2) In this reaction, white coloured insoluble barium sulphate is formed.
(3) This is a double displacement reaction.
Precaution : Clean the apparatus thoroughly before using it.
Navneet Science And Technology Practical Book : Std. X 15
Multiple Choice Questions
• Choose the correct alternative and write its letter (A), (B), (C), (D) in the box : Ans.
1. To observe the reaction of water on quick lime, .
(A) quick lime is added to water in a test tube
(B) a lot of water is added to quick lime
(C) a few drops of water are added to quick lime
(D) none of these
C
2. When crystals of Ferrous sulphate are strongly heated, the residue obtained is .
(A) red in colour (B) blue in colour
(C) green in colour (D) colourless
A
3. When Barium chloride solution is added to Sodium sulphate solution, .
(A) blue precipitate is formed (B) white precipitate is formed
(C) green precipitate is formed (D) no reaction takes place
B
4. The reaction of iron nails with copper sulphate solution is an example of .
(A) combination reaction (B) decomposition reaction
(C) displacement reaction (D) double displacement reaction
C
5. Reddish brown deposit formed on iron nails kept in a solution of copper sulphate is .
(A) Cu2O (B) Cu (C) CuO (D) CuS
B
Date :
Teacher’s Signature :
Remember : In double displacement reactions, two reactants exchange ions and form two new compounds.
16 Navneet Science And Technology Practical Book : Std. X
Experiment 4 Study of the magnetic field produced by an electric current flowing through a coil of copper wire
Aim : To study the magnetic field produced by an electric current flowing through a coil of copper wire.
Requirements : A 12 V battery, insulated copper wire (gauge 24), connecting wires, variable resistance, plug
key, a cardboard or plastic sheet, iron filings, a magnetic needle, a hollow tube or cylinder of cardboard.
Procedure :
(1) Make a coil of insulated copper wire by winding 20 to 25 turns of the wire around a hollow tube or
cylinder of cardboard.
(2) Pass this coil through a horizontal cardboard or plastic sheet as illustrated in the diagram.
(3) Connect the free ends of the wire in a circuit containing a variable resistance, ammeter, 12 V battery and
plug key as shown in the diagram.
(4) Spread iron filings on the cardboard or the plastic sheet.
(5) Close the plug key to pass the electric current through the coil.
(6) Tap the cardboard lightly with a finger and observe the arrangement of iron filings.
(7) Increase the current in the coil gradually by decreasing the resistance in the circuit and observe how the
arrangement of iron filings changes.
Diagram : Label the various components in the given diagram.
Coil
Card board or plastic sheet
Concentric circles of
iron filings
Current (I) flowing through
the copper wire
Connecting wire
Direction of magnetic field
Variable resistance
Ammeter
Plug key
Battery
Circuit diagram
Observations :
(1) Iron filings form concentric circular paths. These concentric circles represent magnetic lines of force.
(2) As we go away from the wire, the concentric circles representing the magnetic lines of force become
bigger and bigger.
Navneet Science And Technology Practical Book : Std. X 17
(3) As the electric current through the coil increases, the intensity of the magnetic field also increases
and the lines of force are seen more distinctly .
Inferences / Conclusions :
(1) When the current flows through the coil, magnetic lines of force produced at each point around the
copper wire forming the coil.
(2) At a given point on the cardboard, the magnetic field produced by the current flowing through the coil
is directly proportional to the current and the number of turns forming the coil.
Precaution : Connect the various components in the electric circuit properly.
Multiple Choice Questions
• Choose the correct alternative and write its letter (A), (B), (C), (D) in the box : Ans.
1. Intensity of magnetic field is expressed in .
(A) ampere (B) volt (C) coloumb (D) oersted
D
2. The direction of the magnetic field around a straight conductor carrying current is given
by .
(A) the right hand thumb rule (B) Fleming’s left hand rule
(C) Fleming’s right hand rule (D) Coulomb’s rule
A
3. is used to determine the presence and direction of magnetic field.
(A) The voltmeter (B) An ammeter
(C) A galvanometer (D) The magnetic needle
D
4. In this experiment, the magnetic field at a point on the cardboard depends .
(A) only on the current (I)
(B) only on the number of turns (n) in the coil
(C) only on the distance (r) of the point from the wire
(D) on all of these, i.e. I, n and r
D
Date :
Teacher’s Signature :
Remember : As we go towards the centre of the wire loop, the circles representing the magnetic lines of
force become so big that its arc appear as a straight line.
18 Navneet Science And Technology Practical Book : Std. X
Experiment 5 Study of effect of heat on ice
Aim : To study the effect of heat on ice and plot the temperature versus time graph.
Requirements : A beaker, ice cubes, a thermometer, a stand, a burner, a tripod, a wire gauze, a stirrer.
Procedure :
(1) Find the least count of the thermometer.
(2) Take a few ice cubes in a glass beaker.
(3) Keep the tripod on the stand. Keep the wire gauge on the tripod. Keep the beaker on it. Insert the bulb
of a thermometer in ice and measure its temperature.
(4) Heat the beaker gently using the burner.
(5) Record the temperature of ice/water after every minute.
(6) As the ice is heated, it starts melting. Stir the mixture of ice and water well. Continue the heating even
after all ice has melted.
(7) Continue to record the temperature of the water even after it starts boiling.
(8) Plot the graph of temperature versus time.
Diagrams : Label the various components in the given diagram.
Thermometer
Ice cubes
Wire gauze
Tripod stand
Thermometer
Stirrer
Water
Stand
Burner
Effect of heat on ice
Observations :
(1) Least count of the thermometer = 1 °C.
(2) The temperature of the mixture of ice and water remains 0°C till the ice melts completely.
(3) As heating is continued, the temperature goes on increasing from 0°C to 100°C.
(4) The temperature of water remains constant ( 100°C ) even after it starts boiling.
Observation table :
Time (min)
1 2 3 4 5 6 7 8 9 10 11 12 13
Temperature (°C)
1.5 15 29 43 57 71 83
94.5 98 99
Time (min) 14 15 16 17 18 19 20 21 22 23 24 25 26 27
Temperature (°C) 100 100 100 100
Navneet Science And Technology Practical Book : Std. X 19
Time (min) 28 29 30 31 32 33 34 35 36 37 38 39 40
Temperature (°C)
5
Graph of temperature versus time
20 Navneet Science And Technology Practical Book : Std. X
Inference / Conclusion : The thermometer shows rise in temperature only after all ice has melted.
The thermometer does not show rise in temperature once water starts boiling. From these observations, we
conclude that heat energy is absorbed during the transformation of ice into water and water into steam, but
there is no rise in temperature during the transformation state. This is indicated by the constant reading of
the thermometer.
Precaution : The bulb of the thermometer should not touch the bottom of the beaker.
Multiple Choice Questions
• Choose the correct alternative and write its letter (A), (B), (C), (D) in the box : Ans.
1. When ice melts, its volume .
(A) increases (B) decreases
(C) remains constant (D) increases or decreases
B
2. Ice / water is a substance that .
(A) expands on melting and contracts on freezing
(B) contracts on melting and does not undergo change in volume on freezing
(C) contracts on melting and expands on freezing
(D) does not undergo any change in volume on melting or freezing
C
3. Heat absorbed when 1g of ice melts at 0°C to form 1g of water at the same temperature is
cal.
(A) 80 (B) 800 (C) 540 (D) 54
A
4. Heat needed to raise the temperature of 1kg of water from 14.5°C to 15.5°C is .
(A) 4180 J (B) 103J (C) 1 cal (D) 4180 cal
A
5. Heat needed to convert 1g of water at 100°C and at a pressure of one atmosphere into 1g of steam
under the same conditions is .
(A) 80 cal (B) 540 cal (C) 89 J (D) 540 J
B
Date :
Teacher’s Signature :
Remember : When there is a change of state of a substance, solid ZIJ liquid, liquid ZIJ gas (vapour), solid ZIJ gas
(vapour) heat energy is absorbed by the substance or heat energy removed from the substance at constant temperature.
Navneet Science And Technology Practical Book : Std. X 21
Experiment 6 Natural cooling of hot water : Plotting temperature –
time graph
Aim : To measure the temperature of hot water during natural cooling and plot the temperature versus time
graph.
Requirements : A 250 ml glass beaker, a thermometer (0 °C – 100 °C), a stopwatch (or clock with hour hand,
minute hand and second hand), a stand, a tripod, a burner, a wire gauze, water.
Procedure :
(1) Find the least count of the thermometer.
(2) Take 150 ml of water in a beaker.
(3) Set up the apparatus as shown in the figure. Ensure that the bulb of the thermometer is about 2 cm
above the bottom of the beaker.
(4) Heat the water.
(5) When the temperature of the water reaches 80 °C, put off the burner.
(6) When the temperature of the water reaches 70 °C, start the stopwatch and measure the temperature of
the water after every minute.
(7) Note the temperature till the water attains room temperature.
(8) Plot the graph of temperature versus time.
Diagram : Label the various components in the given diagram.
Stopwatch
Thermometer
Beaker
Water
Wire gauze
Tripod stand
Burner
Natural cooling of hot water
Observations :
(1) Least count of the thermometer = 1°C.
(2) Initial temperature of water = 70°C.
22 Navneet Science And Technology Practical Book : Std. X
Observation table :
Time (min)
1 2 3 4 5 6 7 8 9 10 11 12 13
Temperature (°C) 70 68 66 64 62 61 60 59 58 56 54 53 51 49
Time (min) 14 15 16 17 18 19 20 21 22 23 24 25 26 27
Temperature (°C) 51 50 49 46 44 40
Time (min) 28 29 30 31 32 33 34 35 36 37 38 39 40
Temperature (°C) 38 35 34
Graph of temperature versus time
Navneet Science And Technology Practical Book : Std. X 23
Inferences / Conclusions :
(1) The hot water loses heat to the surroundings. This results lowering of the temperature of the water.
(2) The rate of cooling depends on the excess of temperature of water over the surroundings. When the
difference between the temperature of hot water and the temperature of the surroundings is more,
the rate of cooling is more.
Precautions :
(1) Switch off the ceiling fans during the experiment.
(2) The bulb of the thermometer should not touch the bottom of the beaker.
Multiple Choice Questions
• Choose the correct alternative and write its letter (A), (B), (C), (D) in the box : Ans.
1. Which of the following is the correct relation?
(A) 4.18 calories = 1 joule (B) 1 calorie = 4.18 joules
(C) 107 calories = 1 joule (D) 1 calorie = 107 joule
B
2. Which of the following are the processes of transfer of heat?
(A) conduction (B) convection
(C) radiation (D) All the above
D
3. The temperature at which water changes into steam is called the of water.
(A) melting point (B) boiling point
(C) expansion point (D) dew point
B
4. Heat is absorbed when .
(A) water is converted into vapour. (B) water is converted into ice.
(C) steam is converted into water. (D) all of these
A
Date :
Teacher’s Signature :
Remember : The rate of change in the temperature of water in the beaker is directly proportional to the
temperature difference between water and surrounding.
24 Navneet Science And Technology Practical Book : Std. X
Experiment 7 Study of anomalous behaviour of water using Hope’s apparatus
Aim : To study anomalous behaviour of water using Hope’s apparatus.
Requirements : Hope’s apparatus, ice, common salt, water, two thermometers, a beaker, a stopwatch (or clock).
Procedure :
(1) Find the least count of the thermometers.
(2) Fill the cylindrical container of Hope’s apparatus with the cold water at about 10 °C to 12 °C.
(3) Fill the flat bowl of the apparatus with a freezing mixture of ice and common salt.
(4) Insert two thermometers in the two holes provided to record the temperature of water in the cylinder at
above and below the flat bowl respectively.
(5) Record the temperatures shown by the thermometers after every minute and note the same in the
observation table.
(6) Plot the graphs, temperature (T1) vs time and temperature (T2) vs time on the same graph paper.
(7) Observe the graphs.
Diagram : Label the various components in the given diagram.
Water
Thermometer T1 Beaker
Flat bowl
Thermometer T2
Freezing mixture (Ice salt)
Cylindrical container
Hope’s apparatus
Observation table : Least count of the thermometers = 1°C.
Time (min)
1 2 3 4 5 6 7 8 9 10 11 12 13
Temperature T1 (°C) 12
9.5
7.7
Temperature T2 (°C) 12
11.9
11.7
Time (min) 14 15 16 17 18 19 20 21 22 23 24 25 26 27
Temperature T1 (°C)
6.3
5.1
4.5
Temperature T2 (°C) 11 10
6.5
Time (min) 28 29 30 31 32 33 34 35 36 37 38 39 40 45
Temperature T1 (°C) 4 4 4 4
Temperature T2 (°C)
2.5
Navneet Science And Technology Practical Book : Std. X 25
Graph of temperature versus time
26 Navneet Science And Technology Practical Book : Std. X
Inferences / Conclusion with explanation :
(1) Initially, both the thermometers show the same temperature. In a short time, the temperature shown by
the lower thermometer starts decreasing, while the temperature shown by the upper thermometer does
not change very much.
(2) This process continues till the temperature shown by the lower thermometer falls to 4°C and remains
constant thereafter. This shows that in the temperature range 12°C to 4°C, the density of the water in
the central part of the container goes on increasing and hence the water sinks to the bottom. It means
that water contracts, i.e., its volume decreases as its temperature falls down from 12°C to 4°C.
(3) As the temperature of the water in the central part of the container becomes less than 4°C, the temperature
shown by the upper thermometer begins to fall rapidly to 0°C. But the temperature shown by the lower
thermometer remains constant (4°C). Later, the reading shown by the lower thermometer decreases
to 0°C.
(4) In the temperature range 4°C to 0°C, the water moves upward. This shows that the density of water goes
on decreasing in this range. It means that water expands, i.e. its volume increases as its temperature
falls from 4°C to 0°C. The behaviour of water in the temperature range from 4°C to 0°C is called
anomalous behaviour of water.
(5) In the graph, the point of intersection of the two curves shows the temperature at which the density of
water is maximum. This temperature is 4°C.
Precaution : Record all temperatures carefully.
Multiple Choice Questions
• Choose the correct alternative and write its letter (A), (B), (C), (D) in the box : Ans.
1. If the temperature of water is increased from 4°C to 10°C, then its .
(A) volume decreases and density increases
(B) volume increases and density decreases
(C) volume decreases and density decreases
(D) volume increases and density increases
B
2. At 4°C, the density of water is .
(A) 10 g/cm3 (B) 4 g/cm3
(C) 4 * 103 kg/m3 (D) 1 * 103 kg/m3
D
3. The density of water is maximum at .
(A) 0°C (B) – 4°C (C) 100°C (D) 4°C
D
4. is used to study the anomalous behaviour of water.
(A) The calorimeter (B) Joule’s apparatus
(C) Hope’s apparatus (D) The thermos flask
C
Navneet Science And Technology Practical Book : Std. X 27
5. In this experiment, the point of intersection of the two curves in the graph corresponds to
the .
(A) melting point of ice
(B) freezing point of water
(C) temperature at which the density of water is minimum
(D) temperature at which the density of water is maximum
D
Date :
Teacher’s Signature :
Remember : The graph of temperature of water against time shows that initially, both temperatures
T1 and T2 are identical. The point of intersection of the two curves shows the temperature of maximum density.
28 Navneet Science And Technology Practical Book : Std. X
Experiment 8 Verification of the laws of refraction of light
Aim : To measure the angle of incidence, the angle of refraction, the angle of emergence and verify the laws of
refraction of light.
Requirements : A rectangular glass slab, a drawing board, a drawing paper, drawing pins, pins, a protractor.
Procedure :
(1) Fix the drawing paper on the drawing board using drawing pins.
(2) Place the rectangular glass slab on it and mark its boundary with a sharp pencil.
(3) Remove the glass slab and draw a normal M1N1 at the point O. Draw a line AO which makes an angle
of incidence (i) of 30° with normal M1N1.
(4) Fix pins P1 and P2 on line AO such that the pins are vertical and well separated.
(5) Replace the glass slab properly in its original position.
Observe the images of the bases of pins P1 and P2 through the glass slab from the opposite side S2 and
fix two pins P3 and P4 such that the bases of these pins are exactly in line with the images of the bases
of pins P1 and P2.
(6) Remove pins P3 and P4 and mark their positions by small circles. Draw a line BC through points P3 and
P4. Remove pins P1 and P2 and the glass slab. Join OB and draw normal M2N2 at point B.
(7) Measure, the angle of incidence (i), the angle of refraction (r) and the angle of emergence (e).
(8) Repeat the procedure for angles of incidence of 45° and 60°.
(9) Find the ratio sin i sin r in each case.
Diagram : Label the various components in the given diagram.
Normal
Normal
Boundary of
the
glass slab
Lateral
displacement
Incident ray
Emergent ray
Refracted ray
i : angle of incidence
r : angle of refraction
e : angle of emergence
Refraction of light through a glass slab
Observation : The path of the ray for angle of incidence of 30° / 45° / 60° is AOBC.
Observation table :
Angle of incidence (i) Angle of refraction (r) Angle of emergence (e) sin i sin r
30°
20°
30°
1.46
45°
30°
45°
1.41
60°
38°
60°
1.40
Navneet Science And Technology Practical Book : Std. X 29
Inferences / Conclusions :
(1) Incident ray AO and emergent ray BC are parallel to each other. The lateral shift is equal to CD.
[This shift depends upon the thickness 2 of the glass slab, the refractive index of glass and the angle of
incidence.]
(2) The angle of incidence (i) > the angle of refraction (r). This means when a ray of light travels from air to
glass, it bends towards the normal.
(3) The angle of incidence (i) he angle of emergence (e).
(4) The incident ray and the refracted ray are on the opposite side of the normal to the surface at the point
of incidence and all the three i.e., the incident ray, the refracted ray and the normal are in the same
plane.
(5) For a given pair of media, the ratio of the sine of the angle of incidence to the sine of the angle of
refraction is constant (Snell's law). This constant is called the refractive index of the second medium
with respect to the first medium.
Precaution : Pins should be fixed such that they are vertical and well separated.
Multiple Choice Questions
• Choose the correct alternative and write its letter (A), (B), (C), (D) in the box : Ans.
1. Rakesh performs the experiment on tracing the path of a ray of light passing through a rectangular
glass slab for different angles of incidence. He observes that in all cases .
(A) i > r but i = e (B) i < r but i = e
(C) i > e but i = r (D) i < e but i = r
A
2. When a ray of light travels from air to glass and strikes the surface of separation at 90° with the
surface, .
(A) it bends towards the normal (B) it bends away from the normal
(C) it passes without bending (D) it passes randomly
C
3. If a ray of light incident from a denser medium passes through a rarer medium in a straight line,
the angle of incidence must be .
(A) 0° (B) 30° (C) 60° (D) 90°
A
Date :
Teacher’s Signature :
Remember : The lateral displacement depends on the thickness of the glass, angle of incidence and angle
of refraction.
30 Navneet Science And Technology Practical Book : Std. X
Experiment 9 Study of refraction of light through a glass prism
Aim : To study the refraction of light through a glass prism by tracing the path of rays of light passing through
the prism and measuring the angle of deviation for different angles of incidence.
Requirements : A glass prism, a drawing board, a white drawing paper, paper pins and drawing pins,
a protractor.
Procedure :
(1) Fix the drawing paper on the drawing board using drawing pins.
(2) Place the glass prism on it, with the triangular base of the prism in contact with the paper, and mark
its boundary with a sharp pencil.
(3) Remove the prism and draw a normal M1N1 at point Q. Draw a ray PQ which makes an angle of
incidence (i) of 30° with normal M1N1.
(4) Fix pins P1 and P2 on ray PQ such that the pins are vertical and well separated.
(5) Replace the glass prism properly in its original position.
Observe the images of the bases of pins P1 and P2 through the prism from the opposite side and fix two
pins P3 and P4 such that the bases of these pins are exactly in line with the images of the bases of pins
P1 and P2.
(6) Remove pins P3 and P4 and mark their positions by small circles. Draw a line through points P3 and
P4. Let this line meet surface AC of the prism in point R. Draw ray RS by taking point S on the line
joining points P3 and P4. Remove pins P1 and P2 and the prism. Join QR and draw normal M2N2 at
point R.
(7) Extend ray PQ (incident ray) in the same direction and ray RS (emergent ray) in the opposite direction
to intersect each other in point T.
(8) Measure the angle of incidence (i), angle of refraction (r1), angle of deviation (d ) and angle of emergence
(e). Enter the same in the observation table.
(9) Repeat the above procedure for angles of incidence of 45° and 60°.
Diagram : Label the various components in the given diagram.
Incident ray
Emergent ray
Prism
i : angle of incidence
r1 : angle of refraction at surface AB
r2 : angle of incidence at the surface AC
: angle of deviation
e : angle of emergence
Extended path of the emergent ray Extended path of the incident ray
Refraction of light through a glass prism
Navneet Science And Technology Practical Book : Std. X 31
Observation : The path of the ray for angle of incidence of 30° / 45° / 60° is PQRS.
Observation table :
Angle of incidence (i) Angle of refraction (r1) Angle of deviation (d ) Angle of emergence (e)
30°
20°
43°
73°
45°
30°
37°
60°
60°
38°
40°
40°
Inferences :
(1) The angle of incidence (i) > the angle of refraction (r1).
This means that when a ray of light travels from air to glass, it bends towards the normal.
(2) The angle of emergence (e) > the angle r2. This means that when a ray of light travels from glass to air,
it bends away from the normal.
(3) In general, the angle of deviation (d ) depends on the angle of incidence (i ). If the angle of incidence is
gradually increased, starting from (say) 30°, initially d decreases as i is increased, becomes minimum for
certain value of i and then increases as i is increased.
Precaution : Pins should be fixed such that they are vertical and well separated.
Multiple Choice Questions
• Choose the correct alternative and write its letter (A), (B), (C), (D) in the box : Ans.
1. The change in the direction of propagation of light when it passes obliquely from one transparent
medium to another is called .
(A) dispersion (B) scattering (C) refraction (D) reflection
C
2. A ray of light gets deviated when it passes obliquely from one medium to another medium
because .
(A) the colour of light changes (B) the frequency of light changes
(C) the speed of light changes (D) the intensity of light changes
C
3. of light is responsible for twinkling of stars.
(A) Reflection (B) Internal reflection (C) Dispersion (D) Refraction
D
4. light is deviated the maximum in the spectrum of white light obtained with a glass prism.
(A) Red (B) Yellow (C) Violet (D) Blue
C
5. light is deviated the least in the spectrum of white light obtained with a glass prism.
(A) Red (B) Yellow (C) Violet (D) Blue
A
Date :
Teacher’s Signature :
Remember : Even when the incident rays are directed away from the base of the prism, the emergent rays
bend towards the base of prism, as the prism is triangular.
32 Navneet Science And Technology Practical Book : Std. X
Experiment 10 Determination of the focal length of a convex lens
Aim : To determine the focal length of a convex lens by obtaining an image of a distant object.
Requirements : A convex lens, a lens stand, a metre scale, a white screen and a screen holder.
Procedure :
(1) Mount a convex lens on lens stand.
(2) Select a distant object like an electric pole. Turn one surface of the lens towards the pole.
(3) Mount a white screen in the screen holder and place it in front of the lens.
(4) Move the screen towards or away from the lens to obtain a sharp image of the pole on the screen.
(5) Measure the distance between the lens and the screen (image).
(6) Repeat the procedure by selecting two more distant objects like a tree, a house, a telephone pole.
(7) Record your observations in the observation table. Find the average focal length of the lens. Let it be f1.
(8) Now rotate the lens by 180° so that the other surface of the lens faces the distant object. Obtain the
sharp image of the distant object on the screen.
(9) Again measure the distance between the lens and the screen. Record your observation in the observation
table. Take two more readings by selecting two more distant objects. Find the average focal length of
the lens. Let it be f2.
(10) From f1 and f2, find the average focal length of the lens.
(11) Compare f1 and f2 to determine whether the lens is symmetric or not.
Diagram : Label the various components in the given diagram.
White screen
Focus
Refracted ray
Incident rays of light from
a distant object
Metre scale Lens stand
Convex lens
Screen holder
Determination of the focal length of a convex lens
Observation table :
Sr.
No.
Distant
object
Distance between the lens and the screen (cm)
Average focal length of the lens
f = f1 + f2 2
(cm)
for one surface of
the lens towards the
object
for the other surface of
the lens towards the
object
1
Electric
pole
19.8
19.8
19.8
Navneet Science And Technology Practical Book : Std. X 33
2 Tree
19.9
19.8
19.8
3 Window
19.7
19.7
19.7
Average f1 = 19.8 Average f2 = 19.8
19.8
Inferences / Conclusions :
(1) The average focal length of the lens ( f) = 19.8 cm.
(2) f1= f2. (Use proper sign, =, ≠)
(3) The lens used is symmetric / is not symmetric.
Precautions :
(1) Obtain the sharp image of a distant object on the screen.
(2) Measure the distances accurately.
Multiple Choice Questions
• Choose the correct alternative and write its letter (A), (B), (C), (D) in the box : Ans.
1. The image formed by a concave lens is always .
(A) real, inverted and diminished (B) real, inverted and magnified
(C) virtual, erect and magnified (D) virtual, erect and diminished
D
2. By using a , light rays incident on it can be converged.
(A) plane mirror (B) convex mirror
(C) concave lens (D) convex lens
D
3. The incident ray parallel to the principal axis of a convex lens passes through after refraction.
(A) the optical centre of the lens (B) focus F2
(C) 2F2
(D) none of these
B
Date :
Teacher’s Signature :
Remember : The image obtained while finding the focal length of a convex lens is real and inverted.
A convex lens is a converging lens.
34 Navneet Science And Technology Practical Book : Std. X
Experiment 11 Arranging the metals according to the decreasing order of their reactivity
Aim : To study the reactions of the metals Al, Zn, Fe and Cu with the solutions of salts Al2(SO4)3, ZnSO4,
FeSO4, CuSO4 and to arrange these metals in decreasing order of their reactivity.
Requirements : Test tubes, Test tube stand, distilled water, sandpaper, forceps, the metals Aluminium, Zinc,
Iron and Copper, solutions of the salts Al2(SO4)3, ZnSO4, FeSO4, CuSO4.
Procedure :
(1) Take four 50 ml beakers and label them as Aluminium sulphate, Zinc sulphate, Ferrous sulphate and
Copper sulphate.
(2) Clean all the metallic pieces using sandpaper and cut them into small pieces.
(3) Add 10 ml of solution of Al2(SO4)3, ZnSO4, FeSO4 and CuSO4 in the labelled beakers respectively.
(4) Add two pieces of aluminium metal into beaker containing ZnSO4, FeSO4 and CuSO4 solutions.
(5) Keep the beakers undisturbed for about 20 minutes.
(6) After about 20 minutes, note the change in colour of solutions or any other change.
(7) Repeat the similar procedure by adding – Zinc pieces to Al2(SO4)3, FeSO4 and CuSO4 solutions, Iron
pieces to Al2(SO4)3, ZnSO4 and CuSO4 solutions, Copper pieces to Al2(SO4)3, ZnSO4 and FeSO4 solutions.
(8) Record your observations.
Figure : Draw and label the diagrams of metals with the solutions of salts.
Pieces of aluminium
metal strip
Aluminium sulphate
solution
Pieces of zinc
metal strip
Zinc sulphate
solution
Pieces of iron
metal strip
Ferrous sulphate
solution
Pieces of copper
metal strip
Copper sulphate
solution
To determine reactivity of metals
Navneet Science And Technology Practical Book : Std. X 35
Observation table :
Metal Al2(SO4)3 ZnSO4 FeSO4 CuSO4
Aluminium
–– Solution remains
colourless.
Zinc metal
settles down at the
bottom of the beaker.
Zinc is displaced.
Green colour of FeSO4
disappears. Iron metal
settles down at the
bottom of the beaker.
Iron is displaced.
Blue colour of CuSO4
disappears. The brown
coloured copper particles
settle down at the bottom
of the beaker.
Copper is displaced.
Zinc (Solution
remains
colourless.)
No reaction
–– Green colour of ferrous
sulphate disappears. Iron
metal settles down at the
bottom of the beaker.
Iron is displaced.
Blue colour of copper
sulphate disappears and
red-brown Copper
particles settle down at
the bottom of the beaker.
Copper is displaced.
Iron (Solution
remains
colourless.)
No reaction
(Solution remains
colourless)
No reaction
–– Blue colour of Copper
sulphate changes to light
green coloured FeSO4.
Copper metal is formed
in the beaker. Copper is
displaced.
Copper (Solution
remains
colourless.)
No reaction
(Solution remains
colourless.)
No reaction
(Solution remains
colourless.)
No reaction
––
Chemical reactions :
(1) More reactive Al displaces the less reactive Zn from ZnSO4 solution.
2Al + 3ZnSO4 ® 3Zn + Al2(SO4)3
(2) More reactive Al displaces the less reactive Fe from FeSO4 solution.
2Al + 3FeSO4 ® 3Fe + Al2(SO4)3
(3) More reactive Al displaces the less reactive Cu from CuSO4 solution.
2Al + 3CuSO4 ® 3Cu + Al2(SO4)3
(4) Zn cannot displace Al from Al2(SO4) solution.
(5) More reactive Zn displaces the less reactive Fe from FeSO4 solution.
Zn + FeSO4 ® ZnSO4 + Fe
(6) More reactive Zn displaces the less reactive Cu from CuSO4 solution.
Zn + CuSO4 ® ZnSO4 + Cu
(7) Fe cannot displace Al from Al2(SO4)3 solution.
(8) Fe cannot displace Zn from ZnSO4 solution.
36 Navneet Science And Technology Practical Book : Std. X
(9) More reactive Fe displaces the less reactive Cu from CuSO4 solution.
Fe + CuSO4 ® Cu + FeSO4
(10) Cu cannot displace Zn from ZnSO4 solution, Cu cannot displace Al from Al2(SO4)3 solution, Cu cannot
displace Fe from FeSO4 solution.
Inferences :
(1) Aluminium displaces Zn, Cu and Fe from their salt solutions.
(2) Zinc displaces Cu and Fe from their salt solutions.
(3) Fe displaces Cu from its salt solution.
(4) Cu cannot displace Zn, Al or Fe from their salt solutions.
(5) Thus, aluminium is more reactive metal.
The decreasing order of reactivity of metal is :
Al > Zn > Fe > Cu
Most reactive Least reactive (Reactivity in decreasing order)
Precautions :
(1) Do not touch any chemical.
(2) Label the beakers properly and put them in sequences. It is better to label the beakers both with the
chemical names and also by chemical symbols.
(3) It is very important that the apparatus you use must be very clean and dry.
(4) Always clean the metallic strips before use with a sandpaper. Use the strips of metals of same size,
weight and number.
Multiple Choice Questions
• Choose the correct alternative and write its letter (A), (B), (C), (D) in the box : Ans.
1. To show that zinc is more reactive than copper, the correct procedure is to .
(A) prepare copper sulphate solution and dip zinc strip in it
(B) prepare zinc sulphate solution and dip copper strip in it
(C) heat together zinc and copper strips
(D) add dil. nitric acid to both the strips
A
2. A solution of Al2(SO4)3 in water is not clear. It is due to .
(A) impurities present in water (B) hydrolysis of Al2 (SO4)3 in water
(C) impurities present in Al2(SO4)3 (D) none of these
D
3. Iron is .
(A) more reactive than zinc (B) more reactive than aluminium
(C) less reactive than copper (D) less reactive than aluminium
D
Date :
Teacher’s Signature :
Remember : If a metal A displaces another metal B from the solution of its salt, then it means the metal
A is more reactive than the metal B.
Navneet Science And Technology Practical Book : Std. X 37
Experiment 12 Study of the oxidation and addition reactions of carbon compounds
Aim : To study the oxidation and addition reactions of carbon compounds.
(A) Oxidation of Ethanol (B) Addition reaction of fatty acids
Requirements : Test tubes, Burner, measuring cylinder, dropper, ethanol, dilute solution of sodium carbonate,
dilute solution of potassium permanganate, tincture iodine solution, vanaspati ghee, vegetable oils like
groundnut, safflower, sunflower oil.
(A) Oxidation of Ethanol
Procedure :
(1) Take 2-3 ml of ethanol in a test tube. Add 5 ml of sodium carbonate solution to it. Warm the mixture.
(2) Add a few drops of the dilute solution of potassium permanganate to the warm mixture with constant
stirring.
(3) Observe the change in the pink colour of potassium permanganate immediately after its addition started.
Observations :
(1) When a solution of potassium permanganate is added to ethanol, in the beginning the pink colour
disappears.
(2) When addition is continued further, the pink colour does not vanish but remains as it is.
Chemical reaction : CH3 – CH2 – OH (O)
(Ethanol) alkaline KMnO4 (Ethanoic acid)
CH3 – COOH
Inferences :
(1) Potassium permanganate oxidizes ethanol to Ethanoic acid.
(2) As potassium permanganate is consumed in this reaction its pink colour vanishes.
(3) When oxidation process is over, the potassium permanganate added afterwards becomes excess and
shows its presence with its particular pink colour.
(B) Addition Reaction of Fatty Acids
Procedure :
(1) Take 4 ml of oil in a test tube. Add 4 drops of tincture iodine in it.
(2) Shake the test tube well.
(3) Observe the colour change of tincture iodine.
(4) Repeat the same procedure using other oils and vanaspati ghee.
Observation table :
Sr. No.
Oil used Colour change observed in the solution
1.
Groundnut oil Orange brown colour of tincture iodine vanishes.
2.
Safflower oil Colour vanishes
3.
Sunflower oil Colour vanishes
4.
Vanaspati ghee Colour does not vanish
38 Navneet Science And Technology Practical Book : Std. X
Chemical reaction :
C = C (l)
C – C (l)
I I (unsaturated oil molecule) (colourless product) (coloured solution)
I2(l) +
Inferences :
(1) Iodine is consumed due to its addition to fatty acid. Therefore, the coloured solution becomes colourless.
But when the same procedure is followed for vanaspati ghee, a similar colour change is not observed.
As vanaspati ghee is saturated hydrocarbon, the addition reaction does not occur there.
(2) The iodine test indicates the presence of a multiple bond in vegetable oil.
Multiple Choice Questions
• Choose the correct alternative and write its letter (A), (B), (C), (D) in the box : Ans.
1. – C –
O
OH is called .
(A) carboxylic acid group (B) aldehyde group
(C) ketonic group (D) alcohol group
A
2. contains alcoholic functional group.
(A) H – C – OH
H
H
(B) CH3 – C – H
H
OH
(C) CH3 – C – CH3 OH
CH3
(D) all of these
D
3. In the reaction of oxidation of ethanol, KMnO4 oxidises ethanol in .
(A) acidic medium (B) alkaline medium
(C) neutral medium (D) strong acidic medium
B
4. The organic compounds having double or triple bonds in them are termed as .
(A) saturated compounds (B) stable compounds
(C) volatile compounds (D) unsaturated compounds
D
5. Due to , vegetable oil is converted into vanaspati ghee.
(A) Hydrogenation (B) Chlorination
(C) Dehydration (D) Polymerization
A
Date :
Teacher’s Signature :
Remember : Unsaturated compounds undergo addition reaction to form saturate compound. Unsaturated
fats containing double bonds are healthy while saturated fats are harmful to health.
Navneet Science And Technology Practical Book : Std. X 39
Part 2
Experiment 1 Study of Mitosis and Meiosis
Aim : To study different stages of mitosis and meiosis.
I. STUDY OF MITOSIS
Requirements : Permanent slides of onion root tips showing mitosis, compound microscope.
Procedure : Focus the permanent slide of squash preparation of onion root tip under the high power of a
microscope and note the changes undergone by the nucleus during the following stages of mitosis :
Observations :
1. Prophase
(1) In prophase chromosomes are seen
in the form of long and coiled thread-
like structures.
(2) Each chromosome consists of two
sister chromatids connected by
centromere.
(3) The nuclear membrane and nucleolus
seen distinctly during the early
prophase are seen disintegrating and
disappearing towards the end of the
prophase.
2. Metaphase
(1) Nuclear membrane disappears
completely in metaphase.
The
chromosomes are condensed and
shortened and therefore they are seen
more distinct and clear.
(2) The formation of spindle fibres is
completed during metaphase.
Diagram : Label the different parts in the given diagram.
Disappearing nuclear
membrane
Disappearing
nucleolus
Chromosomes become
visible
Diagram : Label the different parts in the given diagram.
Spindle fibres
Centromere
Chromosome
Chromatids
40 Navneet Science And Technology Practical Book : Std. X
(3) Where are spindle fibres formed ?
Spindle fibres are formed between centromere of each chromosome and both centrioles of opposite poles.
(4) How are chromosomes arranged during this phase?
The chromosomes are seen arranged at equatorial plane of the spindle, during this phase.
3. Anaphase
(1) Which important division process takes
place during anaphase?
In this phase, centromere split and sister
chromatids of each chromosome separate
and move towards the opposite poles due to
the contraction of spindle fibres.
(2) The chromosomes appear 'L' or 'V' shaped
during anaphase.
4. Telophase
(1) What change takes place in the
chromosomes during this phase?
The chromosomes are seen assembled at
the poles in the form of long coiled thread-
like structures.
(2) What are important changes during
telophase?
During telophase the chromosomes
reorganise to form two daughter nuclei at
opposite poles.
(3) The nuclear membrane and nucleolus reappear at the end of telophase forming two daughter nuclei.
The process of cytokinesis takes place at the end forming two daughter cells.
Diagram : Label the different parts in the given diagram.
Daughter Chromosome
Spindle fibres
Diagram : Label the different parts in the given diagram.
Nuclear membrane
Chromosome
Nucleolus (forming)
Cell plate (forming)
Spindle fibres
Navneet Science And Technology Practical Book : Std. X 41
II. STUDY OF MEIOSIS
Meiosis is also called reduction division because the chromosome number is reduced to half.
Requirements : Slides of grasshopper testis showing meiosis, compound microscope.
Procedure : Focus the permanent slides of meiosis under the high power of a compound microscope. Observe
the slides carefully and note the details.
Observations :
(1) What are the main divisions of the meiosis?
(A) Meiosis I (B) Meiosis II
(2) Which is the most elaborate phase of the meiosis I ? What are its substages?
Prophase 'I' is the most elaborate phase of the meiosis I.
5 substages of prophase I are as follows : Leptotene, Zygotene, Pachytene, Diplotene, Diakinesis.
(3) At the end of Meiosis I, diads, i.e. 2 distinct cells are visible. The chromosome number is reduced to
half.
(4) At the end of Meiosis II, tetrads, i.e. 4 distinct daughter cells are visible.
Meiosis I
Identify the diagrams of different phases of Prophase-I and name them. Label the different parts of each
phases and write atleast two characteristics of each phases.
Prophase – I Characteristics
Nucleolus
Chromosomes
Nucleus
Leptotene
Chromosomes appear as thin and long threads. Nuclear envelope and
nucleolus are distinct.
Homologous
chromosomes
Nucleolus
Zygotene
Homologous chromosomes form pairs. They are known as bivalents.
This pairing is called synapsis.
Pachytene
Bivalent
chromosomes
The chromosomes clearly show two similar chromatids. A bivalent
becomes tetrad. Exchange of chromatid segments between
homologous chromosomes takes place. This is known as crossing
over. Recombination nodule or chiasmata are formed.
42 Navneet Science And Technology Practical Book : Std. X
Prophase – I Characteristics
Diplotene
Chiasmata
The recombined homologous chromosomes start separating. They
remain attached only at the points of crossing over i.e., chiasmata.
Diakinesis
Terminalisation
of chiasma
Terminalisation of chiasmata is complete. Chromosomes appear as
thick 'X', 'L' or ring shaped ('o') structures. Nucleolus and nuclear
envelope disappears.
Write the important events occurring in each of the remaining phases after Prophase I :
Metaphase I
Bipolar spindle is formed. Homologous chromosomes
(bivalents) arranged at equatorial plane by centromere.
Anaphase I
The homologous chromosomes are pulled away from
each other. They move to the opposite poles.
Telophase I
Chromosomes reach to the respective poles. Nucleolus
and nuclear envelope reappear. The cell shows two
daughter nuclei.
Cytokinesis I
A cell plate or furrow appears in the middle and
extends on its side. Two haploid daughter cells are
formed.
Meiosis II
Write the important events occurring in the phases of Meiosis II.
Prophase II The chromosomes of daughter cells become thick and distinct. Nucleolus and nuclear
envelope disappear.
Metaphase II Bipolar spindle formation takes place in both the cells. The chromosomes get attached at
the equator of the spindle.
Anaphase II The sister chromatids separate. The separated chromatids (daughter chromosomes)
start migrating towards the opposite poles. The separation occurs at the centromere.
Telophase II Daughter chromosomes reach poles. The nucleolus and nuclear envelope reappear. Two
daughter nuclei are now clearly seen in each cell. These will later form 4 cells. Thus, total
4 cells are formed from original one cell.
Navneet Science And Technology Practical Book : Std. X 43
Cytokinesis II Formation of cell plate takes place in plant cells. Animal cell divides by formation of a
constriction in plasma membrane. At the end, four daughter cells are formed, each with
haploid number of chromosomes.
Inferences :
(1) By mitotic division, cells multiply in number without changing the chromosome number.
(2) Meiosis is reduction division in which chromosome number of the cell is reduced to half.
Multiple Choice Questions
• Choose the correct alternative and write its letter (A), (B), (C), (D) in the box : Ans.
1. Which type of cells show mitotic cell division?
(A) Somatic (B) Germinal
(C) Somatic and Germinal (D) None of the above
C
2. In which phase of mitosis, the chromosomes are at the equatorial plane?
(A) Prophase (B) Metaphase (C) Anaphase (D) Telophase
B
3. How many cells can be formed if cell divides 6 times by mitosis?
(A) 32 (B) 44 (C) 64 (D) 72
C
4. Which of the following material can be used to observe meiotically dividing cells?
(A) Onion root tip (B) Grasshopper testis
(C) Potato starch grains (D) Cheek cells of human
B
5. Which one is the most important difference in mitosis and meiosis?
(A) Number of daughter cells formed (B) Number of chromosomes in daughter cells
(C) Amount of cytoplasm in daughter cells (D) Time required for the cell division
B
Date :
Teacher’s Signature :
Remember : (1) Mitosis take place both in somatic cells and germinal cells. (2) Meiosis takes place only in germinal cell. It does not take place in somatic cells.
44 Navneet Science And Technology Practical Book : Std. X
Experiment 2 Study of Binary Fission in Amoeba and Budding in Hydra
Aim : To study (1) Binary fission in Amoeba and (2) Budding in Hydra with the help of permanent slides.
Requirements : Slides of binary fission in Amoeba and budding in Hydra, compound microscope.
Procedure :
(1) Observe the slides showing binary fission in Amoeba and budding in Hydra under a compound
microscope.
(2) Arrange the mirror and the objective lens of the compound microscope.
(3) First, adjust the slides under low power objective lens. If needed shift to high power objective lens. Note
down the observations.
1. Binary fission in Amoeba
Diagram : Label the different parts in the given diagram.
Mother Amoeba
Daughter Amoeba
Nuclear division
Binary fission in Amoeba
Observations : Strike out the incorrect word :
(1) Binary fission of Amoeba starts with the division of nucleus/cell wall.
(2) Binary fission is type of mitotic/meiotic cell division.
(3) By binary fission one Amoeba gives rise to two/four daughter Amoebae.
Inference : Binary fission and budding are types of asexual reproduction.
Navneet Science And Technology Practical Book : Std. X 45
2. Budding in Hydra
Diagram : Label the different parts in the given diagram.
Tentacle
Bud Young Hydra
Budding in Hydra
Observations : Strike out the incorrect word :
(1) During reproduction, outgrowth developed on body of Hydra is called bud / tentacle.
(2) The bud of Hydra is multicellular / unicellular.
(3) Young Hydra remain attached on / detaches from parent Hydra and starts independent life.
Inference : Both binary fission and budding are asexual modes of reproduction.
Multiple Choice Questions
• Choose the correct alternative and write its letter (A), (B), (C), (D) in the box : Ans.
1. For observation of the Hydra bud clearly, first focus under the low power lens and then under
the high power lens in order to observe .
(A) the minute part in less area (B) the wide area
(C) more buds (D) all of these
A
2. Which stain will clearly show Amoeba and Paramoecium in a drop of water taken on a slide and
observed under a microscope?
(A) Methylene blue (B) Iodine
(C) Safranin (D) Eosin
A
3. What is the type of reproduction in Hydra?
(A) Binary fission (B) Budding
(C) Multiple fission (D) None of these
B
4. A slide of Amoeba with elongated nuclei represents which of the following ?
(A) Budding (B) Multiple fission
(C) Binary fission (D) Regeneration
C
5. Which of the following is a unicellular fungus that shows budding ?
(A) Mucor (B) Yeast
(C) Amoeba (D) None of these
B
46 Navneet Science And Technology Practical Book : Std. X
6. Which of the following is a mode of asexual reproduction ?
(A) Fission (B) Budding
(C) Spore formation (D) All of these
D
Date :
Teacher’s Signature :
Remember : (1) Binary fission is usually performed by living organisms during favourable conditions i.e. availability of
abundant food material.
(2) Asexual reproduction occurs by budding in yeast – a unicellular fungus.
Navneet Science And Technology Practical Book : Std. X 47
Experiment 3 Study of Hibiscus flower
Aim : To study flower of Hibiscus with reference to reproductive structures.
Requirements : Flowers of Hibiscus, forceps, razor or blade, slides, two needles (pointed and arrow headed),
cover slips, dissecting microscope, compound microscope, paper, glycerine, etc.
Procedure :
(1) Take an open flower of Hibiscus and observe the different floral whorls, namely calyx, corolla, androecium
and gynoecium.
(2) Separate out each floral whorl carefully with the help of needles and forceps.
(3) Arrange the members of each whorl separately on a white paper or a glass slide.
(4) Count the members of each whorl.
(5) Observe the separated members under a dissecting microscope.
(6) Carefully separate stigma from staminal tube by taking longitudinal section.
(7) Draw diagrams of the members of each whorl.
Diagram : Draw neat and labelled diagram of L.S. of Hibiscus flower.
Observation : Observe different parts of Hibiscus flower and enter your observations in the following table :
Whorl of
flower
Number/Member Description Functions
Epicalyx
5 to 8 free
bracteoles
Green in
colour
To protect inner delicate parts in bud condition
Calyx
5 sepals Green in
colour
Protective, keeping all the parts safely covered
during bud condition.
48 Navneet Science And Technology Practical Book : Std. X
Whorl of
flower
Number/Member Description Functions
Corolla 5, large petals Red or different
coloured, bright
and large petals.
To attract insects for pollination.
Androecium Many stamens Filaments of
stamens are fused
to form staminal
tube.
It bear
anthers at its tip.
To produce pollen grains which form male
gametes for sexual reproduction.
Gynoecium
5 carpels Consists of ovary,
style and stigma.
To produce ovules which forms female gametes
for sexual reproduction.
Inference : What is the function of a flower ?
Ans. Flower is the structural unit of sexual reproduction in plants. It attracts insect for pollination.
Multiple Choice Questions
• Choose the correct alternative and write its letter (A), (B), (C), (D) in the box : Ans.
1. The flower of Hibiscus is said to be the complete flower because
(A) it is big in size. (B) it is colourful and thus attracts insects.
(C) it has all the four whorls. (D) it does not develop into fruit.
C
2. Which parts form gynoecium of the flower?
(A) Ovary, style and stigma (B) Ovary, seeds and fruits
(C) Staminal tube and stigma (D) Calyx covering the ovary
A
3. How is androecium of the Hibiscus flower?
(A) Free stamens associated with gynoecium
(B) Fused stamens on the petals
(C) Stamens inserted into calyx
(D) Many stamens, filaments of the stamens fused to form staminal tube
D
4. Which part of the flower protects it in the bud condition?
(A) Corolla (B) Stamen (C) Bracts (D) Calyx
D
Date :
Teacher’s Signature :
Remember : Flower is a reproductive organ of a plant. Androecium and gynoecium are the reproductive
whorl of a flower which help in formation of fruit and seeds.
Navneet Science And Technology Practical Book : Std. X 49
Experiment 4 Human reproductive system
Aim : To study structure and functions of human reproductive system.
Requirements : Models or photographs of human male and female reproductive system.
Procedure : Observe the structure of the reproductive system of human male and female from the models or
photographs given in the laboratory. Note down the details of structure and function of each part. Enter the
information in the tabulation.
1. Human male reproductive system
Diagram : Label the different parts in the given diagram.
Urinary bladder Seminal vesicle
Ejaculatory duct Prostate gland
Vas deferens Cowper's gland
Testis Urinogenital duct
Penis Epididymis
Scrotum
Human male reproductive system
Observation table : Complete the given observation table.
Organ Structure Function
Testis (Pair) Location :
Located below the abdominal
cavity in the scrotum.
(1) Contain numerous seminiferous tubules. Each
has germinal epithelium. The cells of germinal
epithelium divide meiotically to produce sperm
(2) Testes also produce testosterone.
Different tubules /
ducts
2 rete testes
2 vas efferens
2 epididymis
2 vas deferens
1 ejaculatory duct
1 urethra
(1) Sperms travel from one tubule to next. During
this, they become mature and able to fertilize
the ovum.
(2) Which out of these ducts are cut off while
performing family planning operation?
In family planning operations, vas deferens are
cut off so that sperms do not enter the semen.
50 Navneet Science And Technology Practical Book : Std. X
Organ Structure Function
Accessory glands
associated with male
reproductive system.
(1) 2 seminal vesicles
(2) Single prostate gland
(3) 2 cowper's glands or
Bulbourethral gland
Secretions released in urethra.
All secretion sperms semen
Penis (Urethra
passes through
Penis)
Passage of urine as well as
sperms.
(1) Penis transfers the semen during intercourse.
(2) Urine stored in urinary bladder is released in
Urethra running through penis.
2. Human female reproductive system
Diagram : Label the different parts in the given diagram.
Vagina
Ovary
Fallopian duct
Uterus
Human female reproductive system
Observation table : Complete the given observation table.
Organ Structure Function
2 Ovaries Situated in lower abdominal cavity.
Produce ova, secrete female hormones.
2 Fallopian ducts
(called oviducts in
lower animals)
Consists of three parts.
(1) Infundibulum
(2) Ampulla
(3) Isthmus
Transport of ovum to uterus.
1 Uterus In the middle of lower abdomen. (1) Development of foetus
(2) Birth process
1 Vagina The passage of uterus to outside. (1) Passage for intercourse
(2) Acts as birth canal
(3) Passage for menstrual flow
Bartholin's glands In the vaginal wall.
For lubrication and protection of vagina.
Navneet Science And Technology Practical Book : Std. X 51
Inferences :
(1) The important function of human reproductive system is to produce gametes and hormones.
(2) The male hormone, testosterone is produced by testis.
(3) The two important female hormones estrogen and progesterone are produced by ovaries.
(4) The sperm and ovum are produced by meiotic division.
(5) There are 23 chromosomes each in sperm and ovum. By fertilization of these gametes zygote is formed
which contains 46 chromosomes.
Multiple Choice Questions
• Choose the correct alternative and write its letter (A), (B), (C), (D) in the box : Ans.
1. Which gland in human male reproductive system is single?
(A) Testis (B) Prostate gland
(C) Epididymis (D) Cowper’s gland
B
2. Which sugar is present in the semen?
(A) Fructose (B) Glucose
(C) Maltose (D) Lactose
A
3. Which sex chromosomal combination in the zygote is responsible for the formation of testes?
(A) XX (B) XO (C) XXY (D) XY
D
4. Which part of the human female reproductive system is under the direct control of pituitary
hormones?
(A) Uterus (B) Vagina (C) Ovary (D) Fallopian ducts
C
5. Why does women get menopause, but man does not have such stage?
(A) Female hormones stop working in 45+ age, but male hormones’ secretion do not cease.
(B) Females are weak, and males are strong.
(C) Females cannot sustain the pregnancy in late age and hence they get menopause. Males
have no such problem.
(D) Males have better food and exercise, female do not get such facilities.
A
6. Which part of female reproductive system that provides the space for fertilization of the egg ?
(A) Uterus (B) Fallopian ducts (C) Vagina (D) Ovary
B
7. Which group of hormones are essential for a female to become a mother?
(A) Testosterone, estrogen and progesterone
(B) Estrogen and progesterone
(C) FSH, LH, LTH, estrogen and progesterone
(D) ICSH, LH and FSH
C
Date :
Teacher’s Signature :
Remember : (1) Reproductive system of male continues to work even in old age. (2) Reproductive system of female works only till the menopause.
52 Navneet Science And Technology Practical Book : Std. X
Experiment 5 Study of ecosystems
Aim : To study different ecosystems in the surrounding for a comparative understanding.
Requirements : Writing material, binoculars, shovel, troughs, beakers or any other containers for collection.
Procedure :
(1) Try to understand the concept of ecosystem before you choose the same for study.
(2) A huge tree, a lake, a pond, certain area of field, our own school playground, a butterfly garden if it is
present in your school campus, a big aquarium, a coastal strip, a beach, etc. are some ecosystems which
you can choose for study.
(3) Always remember, never disturb any natural ecosystem by plucking the plant parts or killing the animals
or insects. Thus, while performing your study, take care of all the resident fauna and flora, i.e. animals
and plants in the area concerned. You may choose to photograph the specimens. You can also collect
fallen leaves or flowers and seeds.
(4) You can collect samples of soil with shovel so that at school laboratory you can analyse the pH, colour
etc. of the soil. Enter the details in the tabulations given below.
(5) Also think about conservation measures to protect these environments. In today’s world all the natural
ecosystems are destroyed in pursuit of development. You can focus your work on some conservation
measures.
Observations :
Ecosystem Ecosystem – 1 Ecosystem – 2
Date or Period of study Rainy season Rainy season
Name of Ecosystem School play ground Pond
Abiotic factors Soil, water, sunlight, air Water, sunlight, mud, stone
Biotic factors (Flora and Fauna) Plants, grasshopper, frog,
earthworm
Algae, frog, snake, aquatic plants
General description Ecosystem of school playground is
healthy.
Ecosystem in pond is also found
healthy.
Conclusion Conservation and plantation is
required.
We can protect pond ecosystem by
avoiding contamination.
Navneet Science And Technology Practical Book : Std. X 53
Diagram : Draw a food web or food chain from the ecosystem that you have studied.
School playground ecosystem
Conclusion : Draw the inference about the health of ecosystem that you have studied. Check-up whether this
ecosystem is sustaining or is threatened due to human activities.
Out of the ecosystems that I have studied, I found pond ecosystem as the most healthy and balanced and
in good condition, because, Pond water was clean and without any garbage. People were taking care of pond
ecosystem. Notice boards were displayed mentioning about not to throw garbage in pond and surrounding area.
Polluting pond water by washing utensils, clothes, bathing, etc. was prohibited.
Balanced proportion of biotic as well as abiotic factors was observed in pond ecosystem.
Multiple Choice Questions
• Choose the correct alternative and write its letter (A), (B), (C), (D) in the box : Ans.
1. The aquatic ecosystems are worst affected by which of the following human interference?
(A) Noise pollution (B) Plastic Pollution
(C) Deforestation (D) Construction activities
B
2. Which abiotic factor is the most important for the survival of animals?
(A) Oxygen content
(B) Nitrogen in air
(C) Carbon dioxide concentration (D) Soil structure
A
3. Which of the following are autotrophic organisms found in sea?
(A) Whale (B) Phytoplanktons (C) Fishes (D) Turtles
B
Date :
Teacher’s Signature :
Remember : An ‘ecosystem’ is a region with specific and recognizable landscape form such as forest,
grassland, desert, wetland or coastal area.
54 Navneet Science And Technology Practical Book : Std. X
Experiment 6 Characteristics of Non-chordate animals
Aim : To study characteristics of non-chordates (1) Earthworm (2) Cockroach.
Requirements : Specimens of earthworm and cockroach.
Procedure : Observe the specimens. Write their characteristics and give the classification.
1. Earthworm
Diagram : Label the different parts in the given diagram.
Female genital pore
Anus
Clitellum
Male genital pore
Segments
Mouth
Earthworm
Classification of Earthworm :
Kingdom : Animalia
Subkingdom : Non-chordata
Phylum : Annelida
Scientific name : Pheretima posthuma
Observations : Characteristics of Earthworm.
(1) The body of earthworm is elongated and cylindrical. It has mouth and anus at the opposite ends.
(2) The body is metamerically segmented, with about 100 to 125 segments in the body.
(3) A prominent brown-coloured band called clitellum is present in the anterior region of the body covering
the segments 14th, 15th and 16th.
(4) Earthworm is a bisexual animal crawling in soil. It is said to be a friend of farmer.
(5) It is used for vermicompost, therefore they play an important role in solid waste management.
Navneet Science And Technology Practical Book : Std. X 55
2. Cockroach
Diagram : Label the different parts in the given diagram.
Head
Antenna
Thorax
Wings Abdomen
Jointed appendage
Cockroach
Classification of Cockroach :
Kingdom : Animalia
Subkingdom : Non-chordata
Phylum : Arthropoda
Class : Insecta
Scientific name : Periplaneta americana
Observations : Characteristics of cockroach :
(1) The body of cockroach is narrow, bilaterally symmetrical and dorsoventrally flattened.
(2) The whole body is covered externally by a chitinous cuticle.
(3) The body of cockroach is divisible into three parts, viz., head, thorax and abdomen.
(4) The head on its each side bears a large compound eye and a long, slender and segmented antenna.
(5) There are 3 pairs of walking legs.
(6) Cockroach is a nocturnal pest which is carrier of diseases.
Multiple Choice Questions
• Choose the correct alternative and write its letter (A), (B), (C), (D) in the box : Ans.
1. To which phylum does Earthworm belong ?
(A) Platyhelminthes (B) Aschelminthes
(C) Annelida (D) Arthropoda
C
2. Cockroach is an insect but spider is not because
(A) cockroach and spiders belong to different phyla.
(B) cockroach has 3 pairs of legs and spider has 4 pairs of legs.
(C) cockroach has jointed appendages but spider does not have.
(D) spider can build a web but cockroach cannot.
B
56 Navneet Science And Technology Practical Book : Std. X
3. Earthworm is called a friend of farmer but cockroach is not. Why?
(A) Cockroach is a pest and carrier of some human diseases.
(B) Cockroach cannot dig the soil.
(C) Cockroach is hard bodied insect.
(D) Cockroaches do not stay on the fields.
A
4. The only common character between earthworm and cockroach is
(A) both breathe by tracheae.
(B) both excrete by nephridia.
(C) both have spiracles.
(D) both are non-chordates.
D
5. Clitellum of earthworm is present in which segments?
(A) 8, 9,10 (B) 11, 12,13 (C) 14, 15, 16 (D) 16, 17, 18
C
Date :
Teacher’s Signature :
Remember : In Non-chordates, nerve cord is ventral, solid and double.
Navneet Science And Technology Practical Book : Std. X 57
Experiment 7 Characteristics of Chordate animals
Aim : To study characteristics of chordate animals (1) Fish (2) Pigeon.
Apparatus : Specimens of any fish and a pigeon.
Procedure : Observe the specimens. Note down their characteristics and write down their classification.
1. Fish (Rohu)
Diagram : Label the different parts in the given diagram.
Scales
Laternal line
Caudal fin
Ventral fin
Pelvic fin
Dorsal fin
Eye
Nostril
Mouth
Operculum
Pectoral fin
Fish (Rohu)
Classification of Rohu :
Kingdom : Animalia
Phylum : Chordata
Subphylum : Vertebrata
Class : Pisces
Scientific name : Labeo rohita
Observations : Characteristics of Rohu :
(1) Rohu is a fresh water fish having bony skeleton.
(2) The body is spindle shaped with dark or bluish black dorsal side and silvery white ventral and lateral
sides.
(3) Exoskeleton is of scales.
(4) The head is large with a terminal mouth. Eyes are large, without eyelids.
(5) Gills are covered by bony operculum.
(6) The dorsal, ventral and caudal fins are unpaired while the pectoral and pelvic fins are paired.
(7) The caudal fin is used for changing the direction while swimming.
58 Navneet Science And Technology Practical Book : Std. X
2. Pigeon
Diagram : Label the different parts in the given diagram.
Head
Beak
Eye
Winds
Clawed legs
External ear opening
Neck
Wing feathers
Tail feathers
Classification of Pigeon :
Kingdom : Animalia
Phylum : Chordata
Subphylum : Vertebrata
Class : Aves
Scientific name : Columba livia
Pigeon
Observations : Characteristics of Pigeon :
(1) Pigeon’s body is divisible into four parts, viz., head, neck, trunk and tail.
(2) The head bears a pair of nostrils, a pair of eyes and a stout beak. There are no teeth.
(3) The forelimbs are modified into wings which are used for flying.
(4) The hind limbs are short used for perching.
(5) Digits are provided with claws.
(6) The exoskeleton is of feathers.
Multiple Choice Questions
• Choose the correct alternative and write its letter (A), (B), (C), (D) in the box : Ans.
1. Which is the common body characteristics in fish and bird?
(A) 4 chambered heart
(B) Stream-lined tapering body
(C) Large eyes
(D) Scales on the body
B
2. What are the locomotory organs in fish and bird respectively ?
(A) Wings-Fins (B) Fins-Wings
(C) Wings-Legs (D) Legs-Fins
B
3. In fish, which part of the body is used for changing direction while swimming ?
(A) Pectoral fins (B) Caudal fins
(C) Dorsal fins (D) None of these
B
4. Which of the following is a group of warm blooded animals?
(A) Pisces (B) Amphibia
(C) Reptilia (D) Aves
D
Navneet Science And Technology Practical Book : Std. X 59
5. Which pair of respiratory organs is present in Rohu and Pigeon respectively?
(A) Gills and lungs
(B) Lungs and gills
(C) Gills and Lungs aided with air sacs
(D) Gills and Tracheae
C
Date :
Teacher’s Signature :
Remember :
(1) Fishes are cold-blooded animals which respire through gills.
(2) Birds are warm-blooded animals which respire with the help of lungs.
60 Navneet Science And Technology Practical Book : Std. X
Experiment 8 Study of different properties of acetic acid (ethanoic acid)
Aim : To study the following properties of acetic (ethanoic) acid :
(1) Odour (2) Solubility in water (3) Effect on litmus (4) Reaction with sodium bicarbonate.
Requirements : Test tubes, test tube stand, cork, delivery tube, beaker, etc.
Chemicals : Acetic acid, red and blue litmus solution, sodium bicarbonate solution, distilled water, fresh lime
water.
Procedure :
(1) Take about 10 ml of acetic acid in a clean and dry test tube. Observe its colour and odour.
(2) Add about 10 ml of water in same test tube and shake the test tube well. Observe the solution in
test tube.
(3) Add 2 to 3 drops of blue litmus solution to acetic acid taken in a separate test tube. Repeat the same
procedure for red litmus solution.
(4) Take about 10 ml of acetic acid in a test tube and add to it some drops of sodium bicarbonate solution.
Pass the gas through fresh lime water.
Diagrams : Label the different parts in the given diagram.
Test tube Test tube
Acetic acid water Acetic acid
blue litmus solution
Acetic acid
sodium bicarbonate
Delivery tube
Fresh lime water
Study of properties of acetic acid
Navneet Science And Technology Practical Book : Std. X 61
Observation and Inference table :
Sr. No.
Test Observation Inference
1.
Odour Peculiar odour of vinegar Acetic acid has odour like
vinegar
2.
Solubility Soluble in water Acetic acid is miscible with
water
3.
Blue litmus solution test
Red litmus solution test
Blue colour of litmus solution changes
to red
No change in colour
Acetic acid is acidic in nature
4.
Reaction with sodium
bicarbonate solution
A colourless, odourless gas is
liberated with brisk effervescence
Acetic acid liberates carbon
dioxide gas on reacting with
sodium bicarbonate solution.
Pass the gas through fresh
lime water
Lime water turns milky. After
passing more gas it becomes clear.
Multiple Choice Questions
• Choose the correct alternative and write its letter (A), (B), (C), (D) in the box : Ans.
1. Ethanoic ( Acetic ) acid .
(A) is odourless (B) has a smell of ammonia
(C) has smell of rotten eggs (D) has a vinegar smell
D
2. Acetic ( Ethanoic ) acid .
(A) turns red litmus blue (B) has pungent odour
(C) is red in colour (D) is odourless
B
3. When sodium bicarbonate solution is added to dilute acetic acid .
(A) CO2 gas is evolved
(B) a solid settles at the bottom
(C) the mixture becomes warm
(D) the colour of the mixture becomes yellow
A
4. is liberated when acetic acid reacts with sodium metal.
(A) H2 (B) O2 (C) CO2 (D) NH3
A
5. Ethanoic acid which solidifies below 290K is known as .
(A) ice (B) solid acetic acid
(C) glacial acetic acid (D) ethyl acetate
C
Date :
Teacher’s Signature :
Remember : Ethanoic acid is a colourless liquid with boiling point 118°C. Ethanoic acid is commonly
known as acetic acid.
62 Navneet Science And Technology Practical Book : Std. X
Experiment 9 Study of industrially important microbes
Aim : To study the microbes which are used in industrial processes.
Requirements : Compound microscope, permanent slides of following bacteria.
(1) Streptococcus thermophilus (2) Lactobacillus acidophilus
(3) Saccharomyces cerevisiae (4) Acetobacter aceti
(5) Aspergillus oryzae
Procedure : Observe the permanent slides of the important microbes.
Observation table :
Organism Industrial Use
(1) Streptococcus thermophilus
Underline the correct alternative :
Streptococcus thermophilus is a Gram
positive / Gram negative bacteria.
Cross out the wrong word :
1. S. thermophilus is one of the most widely used bacteria
in the dairy / leather industry.
2. Mozzarella / Amul cheese and yogurt are manufactured
using this microbe.
3. It turns milk sugar-lactose / glucose into lactic acid.
The increase in lactic acid turns milk into the gel-like
structure which is characteristic of yogurt / paneer.
(2) Lactobacillus acidophilus
Underline the correct alternative :
Lactobacillus acidophilus is a Gram
positive / Gram negative bacteria.
Cross out the wrong word :
1. L. acidophilus occurs naturally in the human and animal
gastrointestinal / respiratory tract and mouth/brain.
2. Some strains of L. acidophilus are probiotic/corrosive
in nature.
Fill in the blanks :
These strains are commercially used in many dairy
products, sometimes together with streptococcus
thrermophilus and Lactobacillus delbrueckii subsp.
(3) Saccharomyces cerevisiae
Underline the correct alternative :
Saccharomyces/cerevisiae cerevisiae is a
type of yeast/cyanobacteria.
Cross out the wrong word :
1. S. cerevisiae used in wine / cheese making, baking, and
brewing since ancient times.
2. It is used as a source of vitamins and minerals. It is rich
in B / D vitamins, chromium / sodium and selenium/
lead. Due to this, health of hair, skin, mouth, liver and
eyes / ears is maintained.
Fill in the blanks :
They also aid in breaking down fats, proteins and
carbohydrates for a quick supply of energy.
Navneet Science And Technology Practical Book : Std. X 63
Organism Industrial Use
(4) Acetobacter aceti
Underline the correct alternative :
1. Acetobacter aceti is a Gram positive /
Gram negative bacterium.
2. Louis Pasteur / Charles Darwin proved
that these bacteria cause conversion
of ethanol to acetic acid in 1864.
Cross out the wrong word :
1. A. aceti is a bacterium that moves using its pseudopodia/
peritrichous flagella. It is present everywhere in the
environment, existing in ecological niches which include
flowers, fruits, and honey bees, as well as in water and
soil.
2. It lives wherever sugar translocation / fermentation
occurs.
3. A. aceti is used for the mass production of sulphuric
acid / acetic acid for manufacturing vinegar / oil.
4. It is used for action on wines / cheese and ciders / juices.
(5) Aspergillus oryzae
Underline the correct alternative :
Aspergillus oryzae is filamentous
fungus / algae.
Cross out the wrong word :
1. A. oryzae, is widely used in Chinese and other East
Asian / American cuisine.
2. It is used in fermentation of soybeans / sugar cane for
making soya sauce and fermented bean paste.
3. Also used to saccharify rice / wheat, other grains, and
potatoes in the making of alcoholic beverages / vinegar.
4. A. oryzae, is also used for the production of rice
alcohol /vinegars.
Inference : When microbiology is used for commercial purpose as well as for economic, social and environment
related processes, then it is called industrial microbiology. By sustained research on various microbes,
various products are produced on large scale by the industrial microbiology.
Multiple Choice Questions
• Choose the correct alternative and write its letter (A), (B), (C), (D) in the box : Ans.
1. Which of the following microbe is commonly used in baking and brewing ?
(A) Streptococcus thermophilus
(B) Saccharomyces cerevisiae
(C) Acetobacter
(D) Aspergillus oryzae
B
2. Which of the following is the microbe used in manufacturing vinegar?
(A) Streptococcus thermophilus
(B) Saccharomyces cerevisiae
(C) Acetobacter
(D) Aspergillus oryzae
C
64 Navneet Science And Technology Practical Book : Std. X
3. Which of the following is the microbe used in manufacturing soya sauce?
(A) Streptococcus thermophilus
(B) Saccharomyces cerevisiae
(C) Acetobacter
(D) Aspergillus oryzae
D
Date :
Teacher’s Signature :
Remember : Various food items are produced with the help of fermentation process. For Example, Bread,
Cheese, Wine, etc. Microbes are also used in production of enzymes, medicines, biofuel, pollution central and sewage management.
Navneet Science And Technology Practical Book : Std. X 65
Experiment 10 Biofertilizers
Aim : To study biofertilizers such as Azotobacter, Nostoc, Anabaena and Azolla.
Requirements : Specimens of Azolla and permanent slides of Azotobacter, Nostoc and Anabaena.
Procedure : Observe the specimens of Azolla and the permanent slides of remaining organisms.
(Note : Enter your observations and the uses of these organisms from the viewpoint of agriculture.)
Observation table :
Organism and their classification Characteristics Uses
1. Azotobacter
Kingdom : Monera
Division : Proteobacteria
Underline the correct word :
l Oval and round / rectangular in
shape.
l Develop hard cyst / crust around.
l Freely living / parasitic in soil.
1. Ability to fix molecular
nitrogen /nitrogen compounds
and therefore increase the soil
fertility and stimulate overall
growth / only height of plant.
2. Azotobacter species are widely
used in agriculture, particularly
in nitrogen-fixing biofertilizers
such as
azotobacterin / antibiotic
bacterin.
2. Nostoc
Kingdom : Monera
Division : Cynobacteria
l Found in water / various
environments that forms
colonies.
l Found in soil, on dry / moist
rocks, at the bottom of lakes
and springs, both fresh and
saltwater.
It is free living /
parasitic.
l Also grows parasitically /
symbiotically in the plants’
tissues.
1. Nostoc contains two pigments/
proteins, blue/black
phycocyanin and red/yellow
phycoerythrin, as well as
brown/green chlorophyll.
2. It can fix nitrogen in specialized
cells called heterocysts/
rhizoids.
3. Also used as tasty/
supplementary food due to
vitamins and proteins/
carbohydrates in them.
3. Anabaena
Kingdom : Monera
Division : Cynobacteria
l Filamentous cyanobacteria that
exist as phytoplankton /
zooplankton.
l Can live symbiotically with
Azolla / mushroom.
1. Found in paddy as natural/
chemical fertilizer.
2. They produce toxic neurotoxins/
haemotoxins and hence are
useful to keep away the grazing
animals / birds from farms.
66 Navneet Science And Technology Practical Book : Std. X
Organism and their classification Characteristics Uses
4. Azolla
Kingdom : Plantae
Division : Pteridophyta
l Azolla sinks in deep water/
floats on the surface of water
by means of numerous, small,
closely overlapping scale-like
leaves.
l Their roots are hanging in the
water/air.
1. They can fix atmospheric
nitrogen/carbon dioxide
2. Traditional/Modern cultivation
as a biofertilizer for paddy.
3. Used as livestock/infant feed.
4. Azolla is rich in proteins,
essential amino acids/
carbohydrates, vitamins and
minerals.
Inference : Biofertilizers are non-polluting option for increasing crop production.
Multiple Choice Questions
• Choose the correct alternative and write its letter (A), (B), (C), (D) in the box : Ans.
1. Which of the following has the wormicidal properties?
(A) Azolla (B) Anabaena (C) Nostoc (D) Azotobacter
A
2. Which of the two show symbiotic relationship with each other?
(A) Nostoc and Anabaena (B) Nostoc and Azotobacter
(C) Azolla and Anabaena (D) Azolla and Nostoc
C
3. Find the odd one out from the viewpoint of classification.
(A) Azolla (B) Anabaena (C) Nostoc (D) Azotobacter
A
4. Which of the following is autotrophic bacteria?
(A) Azolla (B) Anabaena (C) Nostoc (D) Azotobacter
A
5. Why these organisms are said to be important in agriculture?
(A) They do not cause pollution.
(B) They increase the yield of the crops.
(C) They are natural and biofertilizers.
(D) All of the above.
D
Date :
Teacher’s Signature :
Remember : Biofertilizers are microbes which promote plant growth by increasing nutrient availability in
soil.
Navneet Science And Technology Practical Book : Std. X 67
Experiment 11 Survey of disaster Management
Aim : To perform survey of our premises or school in case of disaster and to understand the preparedness
in case of possible disaster.
Requirements : Writing material, survey charts.
Procedure :
(1) Any type of disaster can strike on any day. All the disasters result into loss of property and life. But by
keeping preparedness, we can tackle with these calamities in advance.
(2) For this purpose, one should undertake survey regarding the construction of building, electrical
installations, the vicinity of police station and fire brigade. We should also know the relevant contact
information in case of medical emergencies.
(3) Initially take into consideration all the possible disasters, natural as well as man-made.
(4) Prepare a survey sheet in the form of questionnaire for some kinds of disasters which can be possible
in your area. E.g. certain coastal regions are always prone to floods, cyclones or tsunamis, while those
in the dry regions may face the disaster of drought and famines. Particular areas are prone to earthquakes,
special care has to be taken in such areas.
(5) Based on all such facts, prepare questionnaire. Interview responsible persons in your building or in
your school.
(6) Collect all the information and the viewpoints of the elders.
(7) Prepare a project booklet which can be made available in the school office or with the housing secretary.
(8) Keep the preparedness for combating the disaster.
Observation :
Sr. No.
Criteria Remarks
1.
Is the structural audit for the school / residential building done by proper engineers?
Yes / No
2.
Is the doorway and corridors suitable for rapid evacuation of students/people?
Yes / No
3.
Are there any chances of short circuit or electrical malfunctioning?
Yes / No
4.
Are there emergency exits in the building?
Yes / No
5.
Are the contact numbers of local police station, fire brigade, ambulance, hospitals etc. kept ready for emergency situations?
Yes / No
6.
Is first aid box kept ready in each classroom/in every house?
Yes / No
7.
Is there machinery in the form of volunteers to help in case of emergency situations?
Yes / No
8.
Is the stock of drinking water and dry snacks kept ready for the use in case of emergency?
Yes / No
9.
Are the people with special needs taken into consideration? E.g. old and disabled persons, pregnant women, young children and infants, mentally challenged people residing in the society.
Yes / No
10.
Is the committee appointed to help in the rescue work?
Yes / No
68 Navneet Science And Technology Practical Book : Std. X
Inference : The structural audit for residential building is done by proper engineers. Following are the positive
things observed during our survey :
(1) There was emergency exit in the building.
(2) All the safety precautions were taken at the place from where electricity is supplied to the building.
(3) We found the note of all emergency contact number.
(4) The stock of drinking water and dry snacks was kept ready for the use in case of emergency.
(5) We found the committee appointed to help in the rescue work.
However, we also found few things which needs to be taken care :
(1) First aid box was not there in each house.
(2) Volunteers to help in case of emergency situations were not there.
(3) There was no arrangement for the people with special needs.
Hence, it is necessary for the society to take care of such things and act accordingly.
Multiple Choice Questions
• Choose the correct alternative and write its letter (A), (B), (C), (D) in the box : Ans.
1. Which of the following is exclusively man-made disaster?
(A) Bomb explosion (B) Fire (C) Floods (D) Famine
A
2. When the gas cylinder is leaking what is the first thing that you should do?
(A) Put on all the lights and observe the hole through which the gas is escaping.
(B) Open all the windows and switch on the fans of the house.
(C) Leave house and call the emergency number to fix the problem.
(D) Close all the windows so that gas does not escape to the surroundings.
C
3. If there is fire in the house and you are alone with your baby sister what will you do immediately?
(A) Take her away from fire and shout for help. Try calling fire brigade too.
(B) Run away to neighbours and ask them to rescue her.
(C) Try to put off the fire with help of your sister.
(D) Call parents and wait for help from them.
A
4. It is raining heavily and there is lightning and thunderstorm. You are caught in the rain and
cannot proceed to a safe place. What will you do in such situation?
(A) Pick up a mobile and tell your friends to come there.
(B) Sit under a tree for shelter.
(C) Enjoy the rains, only shut your ears.
(D) Move to a safer place, never use mobile in such case.
D
Navneet Science And Technology Practical Book : Std. X 69
5. When you see a stranger leaving a bag on the bus stop and hurriedly moving away what should
you do?
(A) Take that bag and run away.
(B) Call police immediately and move away from the bag as soon as possible.
(C) Invite people to see what is there in this bag.
(D) Neglect it completely and move on to your work.
B
Date :
Teacher’s Signature :
Remember : Disaster management is divided into pre-disaster management and post-disaster management
through scientific and careful observations and analysis of previous data.
70 Navneet Science And Technology Practical Book : Std. X
Experiment 12 To show that carbon dioxide is given out during respiration
Aim : To show that carbon dioxide is given out during respiration.
Requirements : A conical flask, beaker, test tube, KOH pellets, a tube bent at right angles, one hole rubber
stopper, thread, soaked gram seeds, coloured water, cotton wool, etc.
Procedure :
(1) Soak gram seeds overnight in water and germinate them by placing the seeds in moist cotton wool for
1 to 2 days.
(2) Place moist germinated seeds in conical flask so that respiration may continue for longer time.
(3) Suspend a test tube with KOH pellets in the conical flask.
(4) Fit the cork with bent glass tube to the conical flask. Keep the connection air tight.
(5) Dip the free end of the bent glass tube in a beaker containing coloured water. Mark the initial level of
water in the bent tube.
(6) Keep this set up undisturbed for about 15 minutes and mark the final level of water in the bent tube.
(7) Note down the observations.
Diagram :
Experiment to show that CO2 is given out during respiration
Observation : Water in the bent tube rises / falls down. (Underline the correct option and justify your answer.)
Ans. The gas evolved during respiration of germinating seeds is absorbed by KOH pellets. This creates a
partial vacuum in the conical flask due to which the water level in the bent tube rises.
Inference : Carbon dioxide gas is given out during respiration in plants.
Multiple Choice Questions
• Choose the correct alternative and write its letter (A), (B), (C), (D) in the box : Ans.
1. Arrange the steps in correct order to demonstrate that carbon dioxide is produced during respiration.
(i) Soak gram seeds overnight and place them in a conical flask.
(ii) Fit a cork and U tube into the conical flask.
(iii) Suspend a test tube containing KOH pellets in the conical flask.
(iv) Keep the set up undisturbed for some time.
(A) i – ii – iii – iv (B) i – ii – iv – iii
(C) i – iii – ii – iv (D) i – iii – iv – ii
C
Navneet Science And Technology Practical Book : Std. X 71
2. Fermentation is a type of .
(A) aerobic respiration (B) anaerobic respiration
(C) endothermic reaction (D) none of these
B
3. Before setting up the experiment to show that seeds release CO2 during respiration, the seeds
should be .
(A) dried completely (B) boiled to make them soft
(C) soaked in vinegar (D) kept moist till they germinate
D
4. The use of KOH pellets in the experiment is for .
(A) providing O2 required by the seeds for respiration
(B) absorbing CO2 and creating partial vacuum in the flask
(C) absorbing water from the seeds to make them dry
(D) making the air present in the flask alkaline
B
5. The process of release of energy from the nutrients is called .
(A) respiration (B) photosynthesis (C) nutrition (D) absorption
A
6. The cellular respiration takes place in
(A) lysosome (B) mitochondrion (C) chlorophyll (D) ribosome
B
Date :
Teacher’s Signature :
Remember : There are two types of respiration — aerobic and anaerobic respiration. Germinating seeds
respire aerobically (in presence of oxygen).
Uploaded by: Leojuck716
Report This Content
Copyright infringement
If you are the copyright owner of this document or someone authorized to act on a copyright owner’s behalf, please use the DMCA form to report infringement.
Report an issue
