Masterguard UPS · 2001
Uninterruptible
Power Supply Systems
Catalog UPS
Supercedes:
Catalog USV (UPS) · 1999
UPS Systems
10 kVA to 300 kVA
(2400 kVA)
Series S
MASTERGUARD protects 2
System overview of Series S 3 – 4
MASTERGUARD UPS units 4 – 7
UPS version 208 V, 60 Hz
Special versions of UPS
UPS system configurations
Technical data, UPS 400 V
Technical data, UPS 208 V
Configuration and installation
Selection and ordering data, UPS 400 V
Selection and ordering data, UPS 208 V
8
8
9
10 – 14
15 – 16
17 – 20
21 – 22
23
Accessories 24 – 29
Interfaces and additional accessories
External service bypass
24 – 26
27 – 29
MASTERGUARD frequency converter 30 – 31
Dimensions drawings 32 – 34
Conditions of sale and delivery 35
Year 2000 compatibility 35
Standards 36
Masterguard UPS · 2001
2
MASTERGUARD protects
No matter how dirty your electrical power
system might be, MASTERGUARD
protects it. This Uninterruptible Power
Supply provides on-line double conver-
sion technology to ensure highest power
security and reliability. So MASTER-
GUARD equalizes all irregularities in the
electrical power system. It makes brief
power disruptions harmless, and at the
same time has enough reserves to bridge
prolonged mains failures (Fig. 1).
Applications:
●
DP equipment and systems
●
Computer centers
●
Process control units
●
Control rooms/Scada systems
●
Communications equipment
●
ISDN systems
●
Drives in continuous production
processes
●
Production and automation systems
●
Life-support systems in hospitals
●
Air-traffic control systems
●
Safety systems in power stations
●
Broadcasting studios, SAT systems
●
Transport systems
●
Personal computers
●
Workstations
●
Servers and networks
●
and many others
Voltage fluctuations
USV5008aUSV5009
a
USV5010a
Distorted voltage curve
Frequency fluctuations
Superimposed interference voltage
Short interruptions
Power failures
USV5006
a
USV5007
a
USV5005a

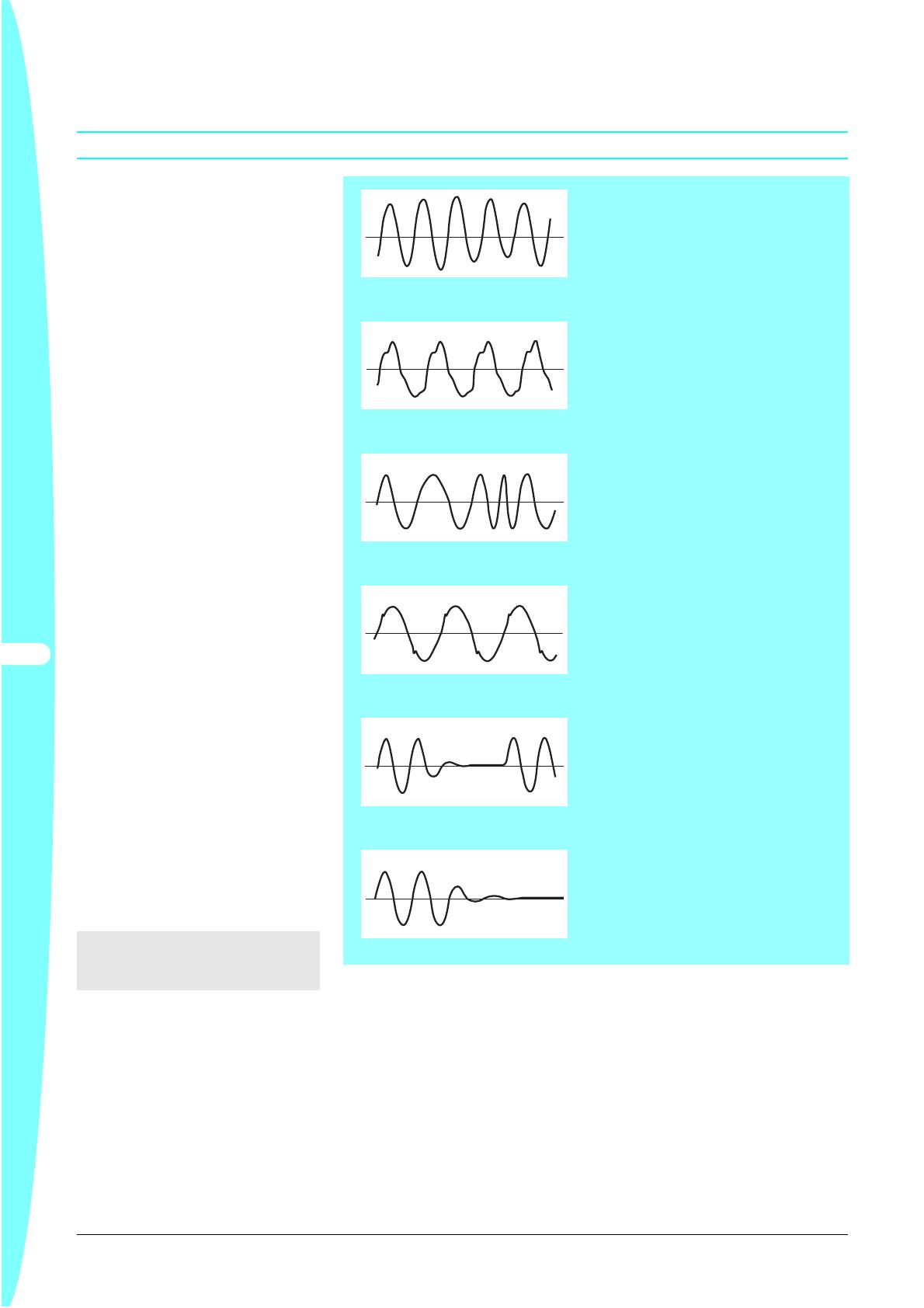

Fig. 1
Types of mains disturbances
UPS Systems
●
Real on-line UPS with the
double-conversion principle
Masterguard UPS · 2001
3
MASTERGUARD Series S
UPS Systems 10 kVA to 300 (2400) kVA
Fig. 2
MASTERGUARD S52100
Fig. 3
MASTERGUARD S52300
Introduction
A technically perfected system of UPS
units and batteries with outstanding ben-
efits for the customer is now available to
ensure the uninterrupted supply of power
to electrical equipment with a single-
phase or three-phase mains connection
in the power range 10 to 2400 kVA.
Individual units have an output of up to
300 kVA
1
) but several units can be con-
nected in parallel to provide a total output
of up to 2400 kVA
2
) and/or to increase
redundancy.
The units provide the load with an electri-
cal power supply in accordance with the
real on-line principle. This is done with no
interruptions of any kind and ensures a
constantly high-quality of supply. The use
of batteries with a back-up time of 60
minutes or more ensures a system which
safely bridges power failures.
System components
●
UPS units, frequency converters
●
Parallel connecting kit
●
Battery systems
●
Battery measuring devices
●
Profibus-DP interface
●
Computer interfaces
●
Contact interfaces
●
Air filters
●
EMC and mains filter
●
UPS management and service software
●
Separate service switch, up to
3000 amps.
●
Empty cubicles
●
Remote control boards
●
Telemonitoring via network /
Internet (IP)
●
Connecting accessories
Special features
●
Real on-line principle of functioning, i.e.
complete decoupling of the load from
all irregularities in the mains supply
●
Energy saving due to high level of effi-
ciency, even during partial-load operation
●
Electrical isolation for absolute protec-
tion of the loads
●
Input filter reduces mains harmonic
distortion better than a 12-pulse
rectifier
●
The input power factor of the UPS is
approximately unity (cos
ϕ ≈ 1)
●
The UPS units can simply be connected
in parallel; retrofitting is also possible
●
Rollers allow easy installation for units
up to and including 100 kVA
●
Connect, switch on and the UPS goes
to work immediately
●
Parameterization with Windows PC
●
Internal barriers at the interfaces pro-
vide complete protection for the user
●
Clear operating and indicating concept
– No operator needed during operation
– Clear indication of statuses, capacity
utilization and battery quality by
means of simple LED display
– Fault indicator and audible signal
●
Event memory for fault analysis
●
Battery conditioning for maintaining the
condition of the battery
●
Detection of defective battery blocks
●
Battery maintenance by an automatic
battery management system with the
benefits of maximum battery life
●
Automatic battery circuit test
●
Temperature-dependent charging
●
EMC limits are ensured in compliance
with European legal requirements and
standards
●
Interfaces with software for all current
computer operating systems
●
Automatic bypass increases availability
of the electrical supply
●
Compact design, low weight
●
Low noise generation
●
High degree of reliability
●
IGBT power transistors
●
Highly integrated digital electronics
●
Specially suitable for non-linear
computer loads
Environmental protection
The latest regulations relating to environ-
mental protection are taken into consider-
ation during design, development and
production. The rules of Siemens AG for
protection of the environment are also
applied.
For example our material-saving design
contributes to the preservation of raw
materials and, with our battery manage-
ment system, a longer battery life is
ensured. The materials are marked for
better recycling.
Power dissipation from the power section
is reduced to a minimum with the latest
technological methods. This enables, for
example, the selection of a significantly
smaller air-conditioning system, thus
reducing customers' operating costs.
Quality management
The quality management system for
development, manufacturing, sales
and service is certified according to
DIN EN ISO 9001.
●
Top cost-effectiveness
because of
– high degree of efficiency,
even with a partial load /
non-linear partial load
– consumption of reactive
power almost zero
System overview of Serie S
1
) up to 60 kVA with 208 V
2
) up to 480 kVA with 208 V
/ 36
