Student’s Name: AYESHA SADIQ Roll No: 02-132232-004
Assignment # 01

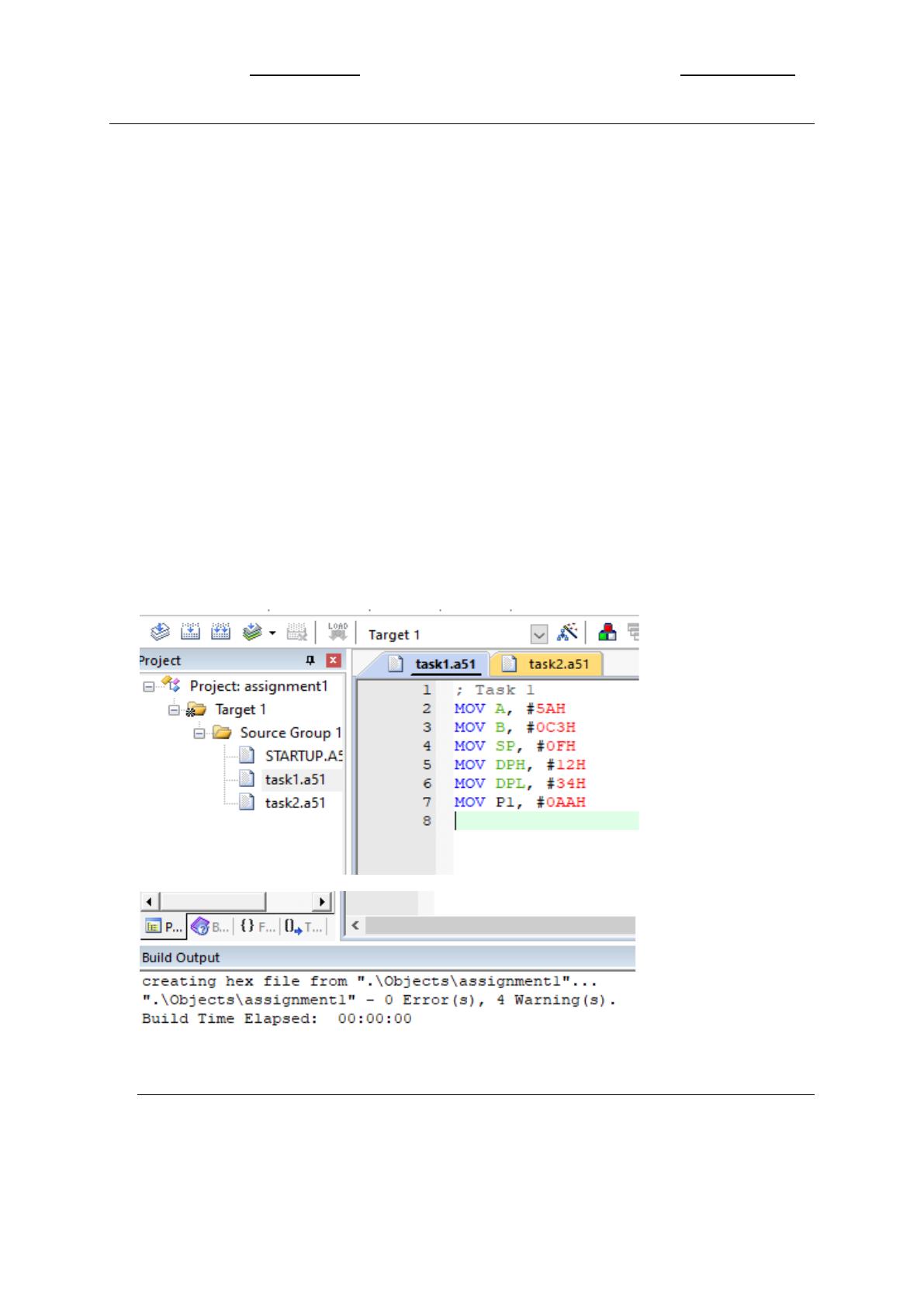

Task # 1: Initialize and Store Values in Multiple SFRs
Objective: Write an 8051 assembly program to assign different values to various SFRs such
as Accumulator (A), B register, Stack Pointer (SP), Data Pointer (DPTR), and Port 1 (P1).
Expected Assignments:
• A = 5AH
• B = C3H
• SP = 0FH
• DPH = 12H, DPL = 34H
• P1 = 0AAH

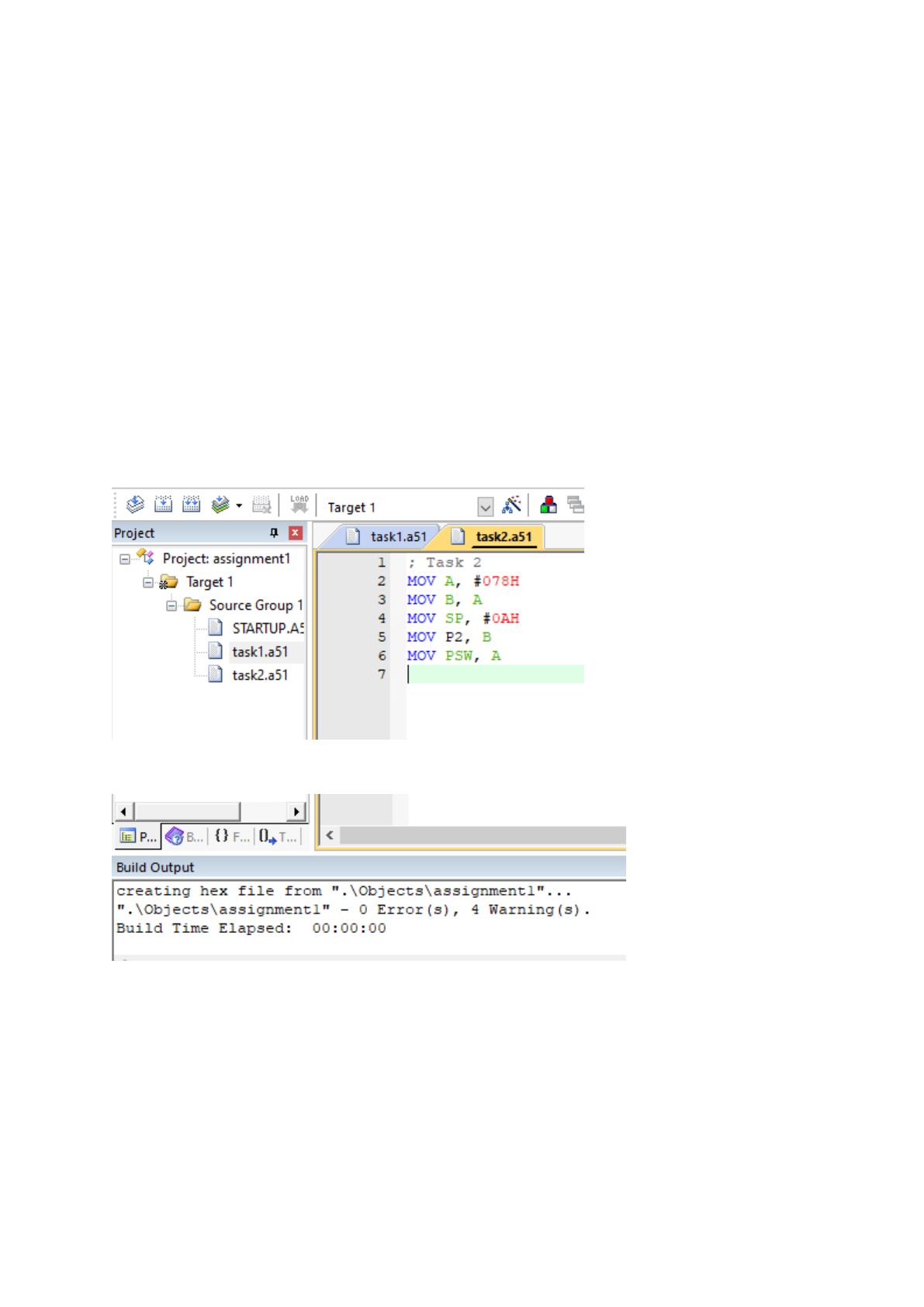

Task 2: Transfer Values Between SFRs
Objective: Write an 8051 assembly program to initialize some SFRs with values, then
transfer those values between registers.
Steps:
1. Load 078H into Accumulator (A).
2. Copy A to B register.
3. Load 0AH into Stack Pointer (SP).
4. Copy the value from B to P2.
5. Store A into PSW (Program Status Word).
Student’s Name: AYESHA SADIQ Roll No: 02-132232-004
Assignment # 02

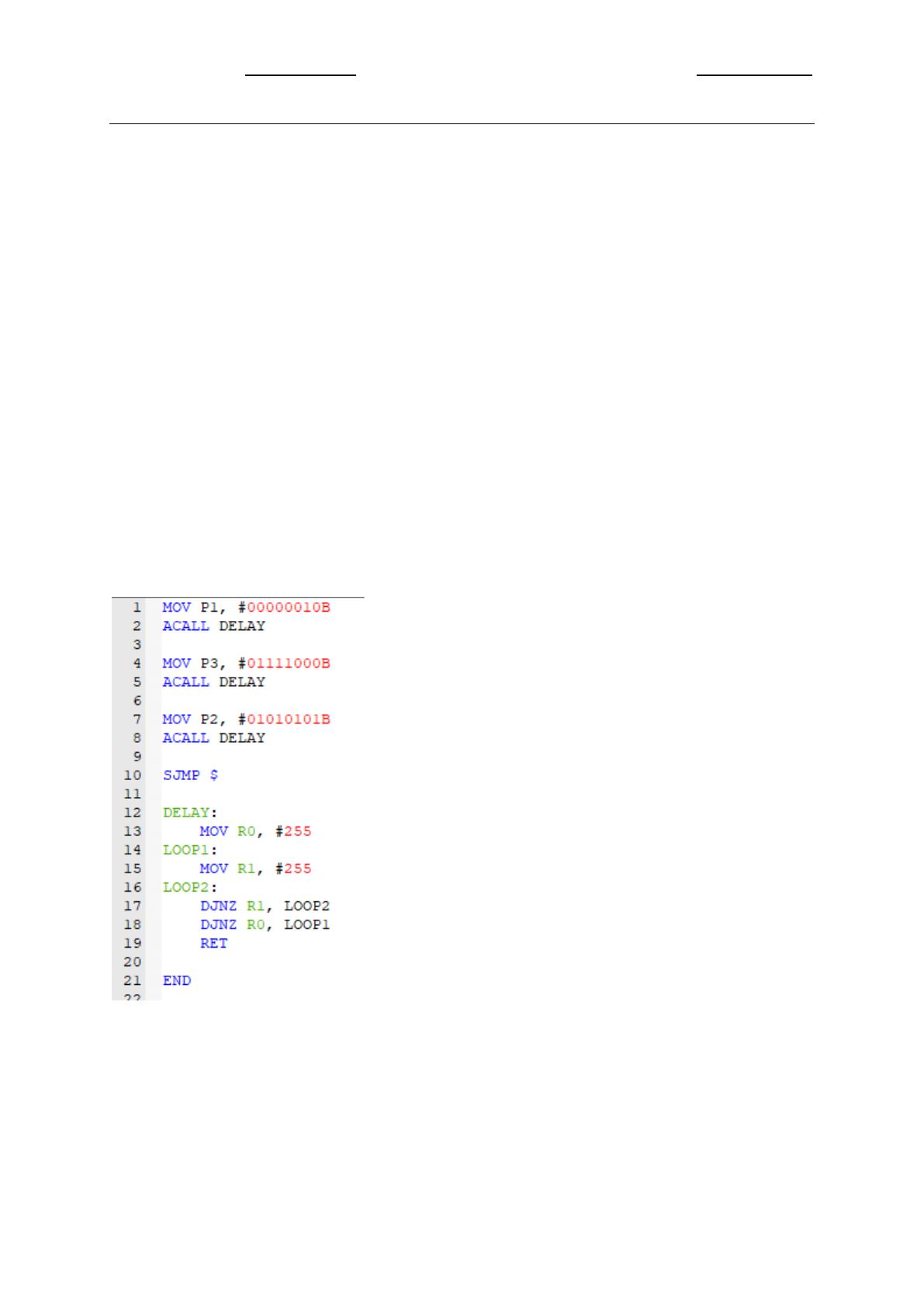

Lab Task # 1:
Design a circuit in Proteus to interface an LEDs with the 89C51 microcontroller Ports 1,2 & 3.
Write down the programs for the following actions in assembly language. LED will glow at
HIGH and LED will be OFF at LOW.
i) Turn P1.1 to HIGH and all others at LOW
ii) Turn P3.3 to P3.6 HIGH and all others at LOW
iii) Turn P2.0, P2.2, P2.4 & P2.6 to HIGH and all others at LOW
