Venn Diagram and Boolean Algebra - 25 MCQs with Answer Key

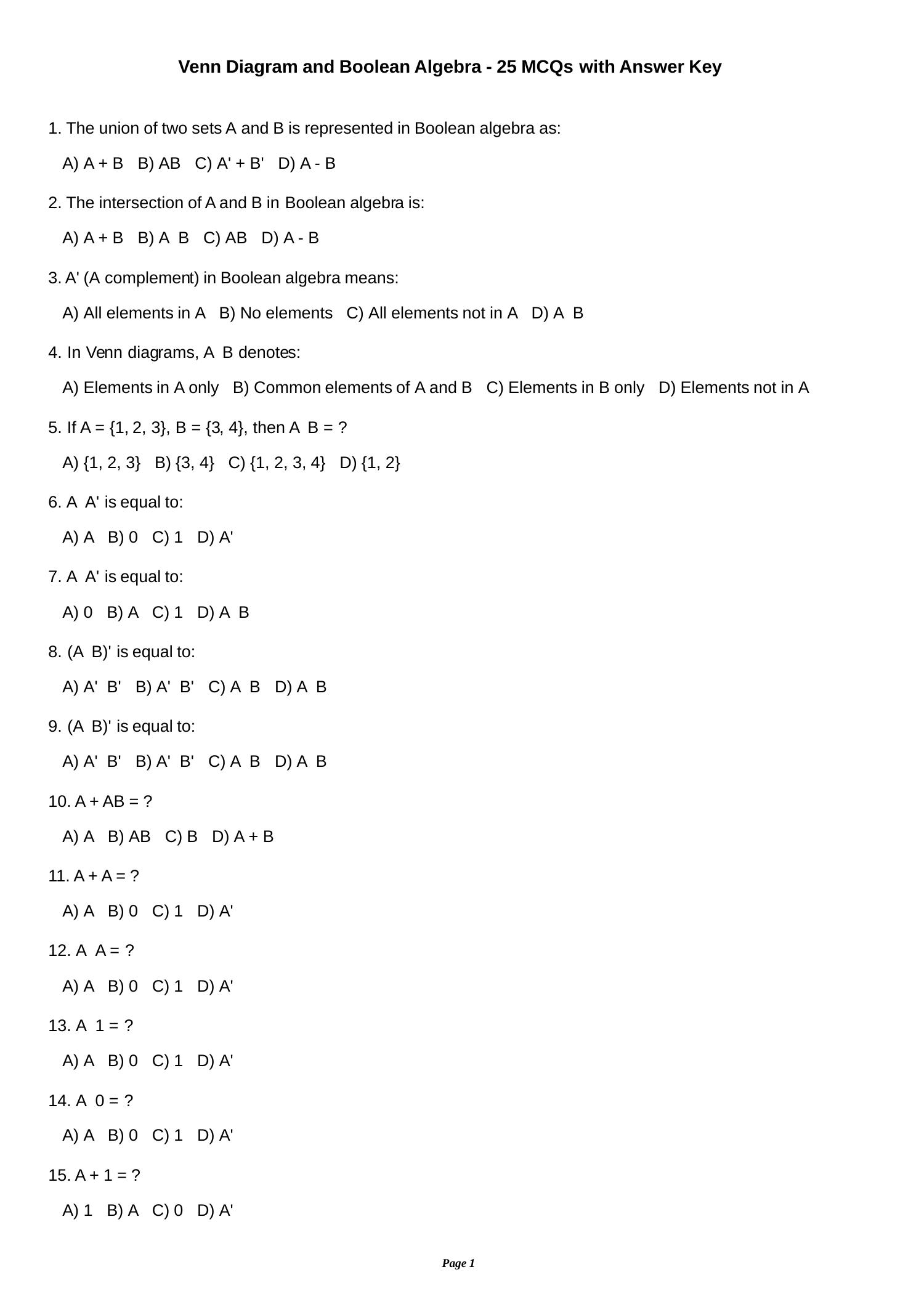

1. The union of two sets A and B is represented in Boolean algebra as:
A) A + B B) AB C) A' + B' D) A - B
2. The intersection of A and B in Boolean algebra is:
A) A + B B) A B C) AB D) A - B
3. A' (A complement) in Boolean algebra means:
A) All elements in A B) No elements C) All elements not in A D) A B
4. In Venn diagrams, A B denotes:
A) Elements in A only B) Common elements of A and B C) Elements in B only D) Elements not in A
5. If A = {1, 2, 3}, B = {3, 4}, then A B = ?
A) {1, 2, 3} B) {3, 4} C) {1, 2, 3, 4} D) {1, 2}
6. A A' is equal to:
A) A B) 0 C) 1 D) A'
7. A A' is equal to:
A) 0 B) A C) 1 D) A B
8. (A B)' is equal to:
A) A' B' B) A' B' C) A B D) A B
9. (A B)' is equal to:
A) A' B' B) A' B' C) A B D) A B
10. A + AB = ?
A) A B) AB C) B D) A + B
11. A + A = ?
A) A B) 0 C) 1 D) A'
12. A A = ?
A) A B) 0 C) 1 D) A'
13. A 1 = ?
A) A B) 0 C) 1 D) A'
14. A 0 = ?
A) A B) 0 C) 1 D) A'
15. A + 1 = ?
A) 1 B) A C) 0 D) A'
Page 1
Venn Diagram and Boolean Algebra - 25 MCQs with Answer Key

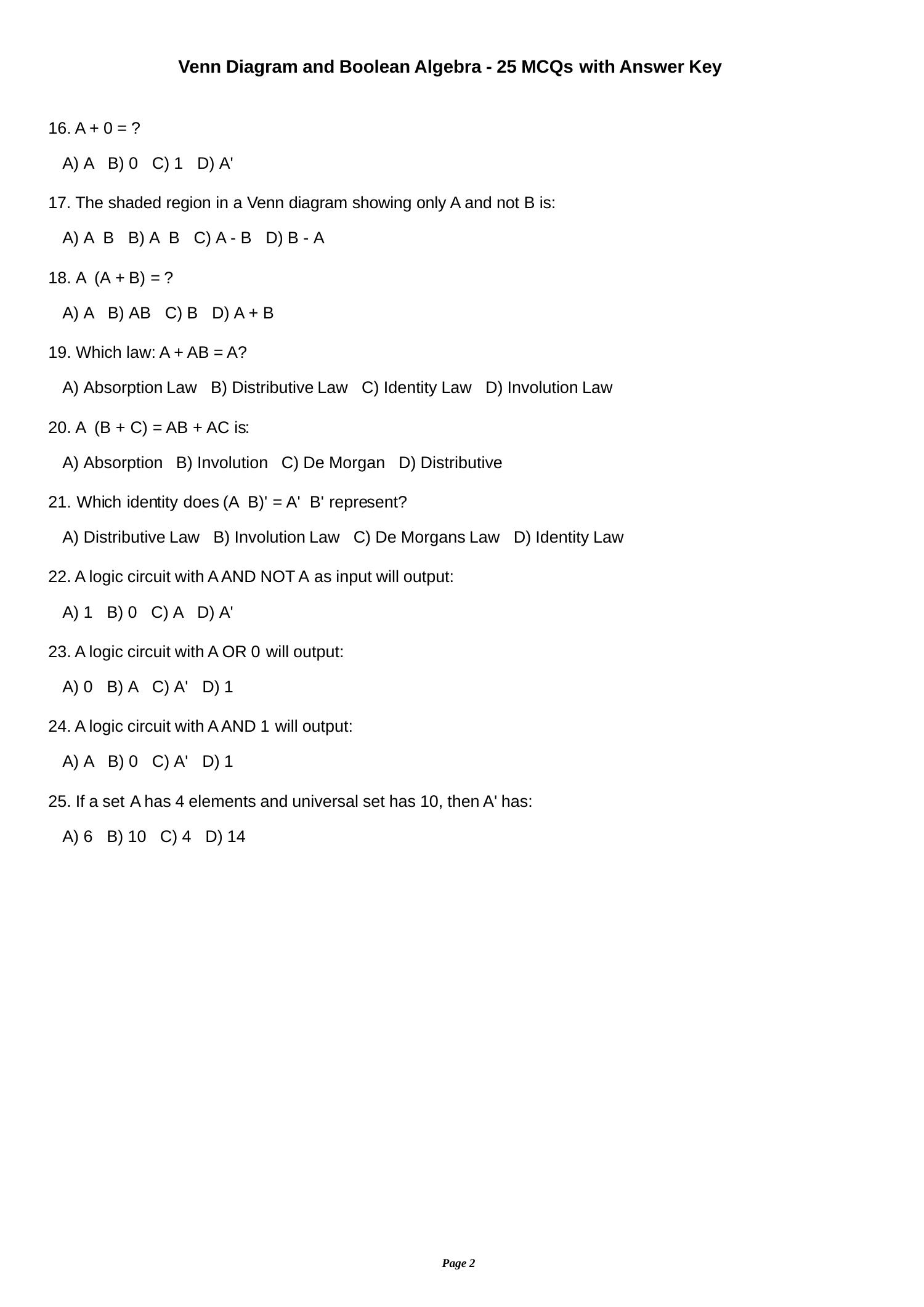

16. A + 0 = ?
A) A B) 0 C) 1 D) A'
17. The shaded region in a Venn diagram showing only A and not B is:
A) A B B) A B C) A - B D) B - A
18. A (A + B) = ?
A) A B) AB C) B D) A + B
19. Which law: A + AB = A?
A) Absorption Law B) Distributive Law C) Identity Law D) Involution Law
20. A (B + C) = AB + AC is:
A) Absorption B) Involution C) De Morgan D) Distributive
21. Which identity does (A B)' = A' B' represent?
A) Distributive Law B) Involution Law C) De Morgans Law D) Identity Law
22. A logic circuit with A AND NOT A as input will output:
A) 1 B) 0 C) A D) A'
23. A logic circuit with A OR 0 will output:
A) 0 B) A C) A' D) 1
24. A logic circuit with A AND 1 will output:
A) A B) 0 C) A' D) 1
25. If a set A has 4 elements and universal set has 10, then A' has:
A) 6 B) 10 C) 4 D) 14
Page 2
Venn Diagram and Boolean Algebra - 25 MCQs with Answer Key

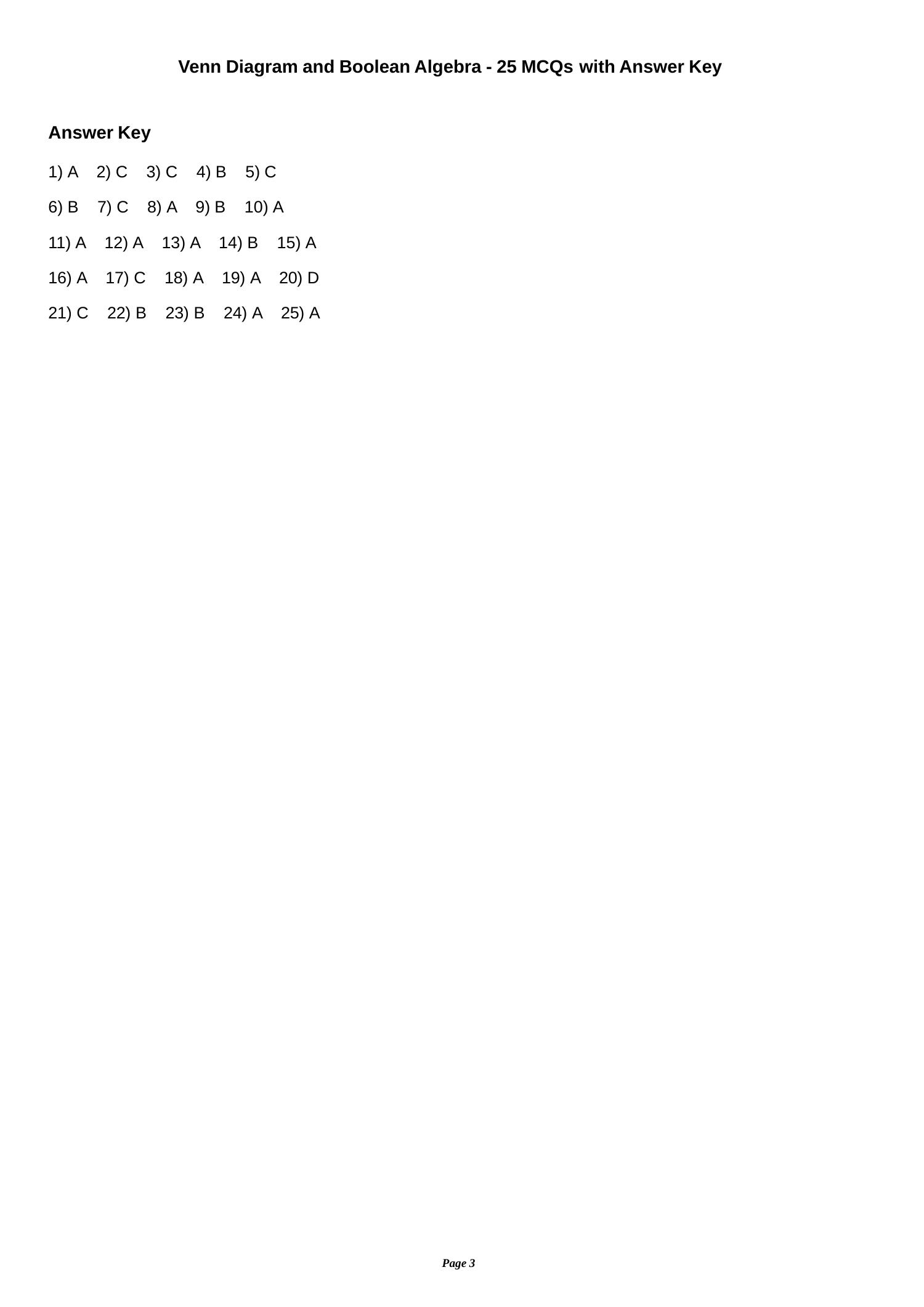

Answer Key
1) A 2) C 3) C 4) B 5) C
6) B 7) C 8) A 9) B 10) A
11) A 12) A 13) A 14) B 15) A
16) A 17) C 18) A 19) A 20) D
21) C 22) B 23) B 24) A 25) A
