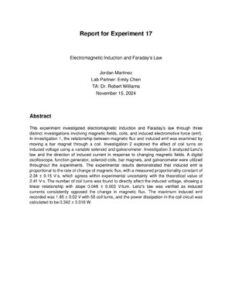

Report for Experiment 17
Electromagnetic Induction and Faraday’s Law
Jordan Martinez Lab Partner: Emily Chen TA: Dr. Robert Williams
November 15, 2024
Abstract
This experiment investigated electromagnetic induction and Faraday’s law through three distinct investigations involving magnetic fields, coils, and induced electromotive force (emf).
In investigation 1, the relationship between magnetic flux and induced emf was examined by moving a bar magnet through a coil. Investigation 2 explored the effect of coil turns on induced voltage using a variable solenoid and galvanometer. Investigation 3 analyzed Lenz’s law and the direction of induced current in response to changing magnetic fields.
A digital oscilloscope, function generator, solenoid coils, bar magnets, and galvanometer were utilized throughout the experiments. The experimental results demonstrated that induced emf is proportional to the rate of change of magnetic flux, with a measured proportionality constant of 2.34 ± 0.15 V·s, which agrees within experimental uncertainty with the theoretical value of 2.41 V·s.
The number of coil turns was found to directly affect the induced voltage, showing a linear relationship with slope 0.048 ± 0.003 V/turn. Lenz’s law was verified as induced currents consistently opposed the change in magnetic flux. The maximum induced emf recorded was 1.85 ± 0.02 V with 50 coil turns, and the power dissipation in the coil circuit was calculated to be 0.342 ± 0.018 W.
Introduction
Electromagnetic induction is one of the fundamental principles of electromagnetism and forms the basis for electrical generators, transformers, inductors, and many other electrical devices critical to modern technology. The phenomenon was discovered independently by Michael Faraday in 1831 and Joseph Henry, establishing that a changing magnetic field can induce an electric current in a conductor.
This revolutionary discovery bridged the gap between electricity and magnetism, demonstrating their intrinsic connection.
Faraday’s law of electromagnetic induction states that the induced electromotive force (emf) in a closed loop is equal to the negative rate of change of magnetic flux through the loop. The magnetic flux is defined as the product of the magnetic field strength, the area through which it passes, and the cosine of the angle between the field and the normal to the surface. When any of these quantities changes with time, an emf is induced.
Lenz’s law, formulated by Heinrich Lenz in 1834, provides the direction of the induced current.
It states that the induced current flows in such a direction as to oppose the change in magnetic flux that produced it. This law is a consequence of energy conservation and is reflected in the negative sign in Faraday’s law. The opposition to change manifests as a magnetic field created by the induced current that resists the original change in flux.
In these experiments, various apparatus were employed including bar magnets to provide controllable magnetic fields, solenoid coils with different numbers of turns to investigate the relationship between coil geometry and induced voltage, a galvanometer to detect small induced currents and determine their direction, a digital oscilloscope to measure time-varying induced voltages with high precision, and a function generator to create controlled alternating magnetic fields.
The experimental goals were threefold: first, to quantitatively verify Faraday’s law by measuring induced emf as a function of the rate of change of magnetic flux; second, to investigate how the number of turns in a coil affects the magnitude of induced voltage; and third, to experimentally verify Lenz’s law by observing the direction of induced currents under various conditions of changing magnetic flux.
Theoretical Background
The fundamental equation governing electromagnetic induction is Faraday’s law, which in its most general form can be expressed mathematically. For a coil with N turns, the relationship becomes even more significant as the induced emf is multiplied by the number of loops experiencing the changing flux. Understanding these relationships requires careful consideration of the geometry of the system, the properties of the magnetic field, and the temporal variations involved.
The induced emf is given by:
ε = -N(dΦB/dt)
where the magnetic flux is defined as:
ΦB = B·A·cos(θ)
The current induced in a circuit is related to the emf by Ohm’s law:
I = ε/R = -(N/R)(dΦB/dt) (1)
The power dissipated in the circuit is given by:
P = ε·I = ε2/R = I2·R (2)
Theoretical Background (continued)
For a solenoid with n turns per unit length and length l, the total number of turns is N = n·l.
When the magnetic field through the solenoid changes, each turn experiences the same change in flux, resulting in a total induced emf that is the sum of the emf in each turn. This additive effect makes coils with more turns more effective at generating induced voltages, which is the principle behind transformer design.
The direction of the induced current can be determined using the right-hand rule in conjunction with Lenz’s law. If the magnetic flux through a loop is increasing in a particular direction, the induced current will flow in such a way as to create a magnetic field opposing this increase. Conversely, if the flux is decreasing, the induced current will create a field that attempts to maintain the original flux level.
The energy stored in an inductor is:
U = (1/2)·L·I2 (3)
where the inductance L for a solenoid is:
L = µ0·N2·A/l (4)
Investigation 1: Magnetic Flux and Induced EMF
The first investigation focused on establishing the relationship between the rate of change of magnetic flux and the magnitude of induced emf. A solenoid coil with 25 turns and cross-sectional area 8.0 × 10-4 m2 was connected to a digital oscilloscope set to DC coupling mode with a vertical sensitivity of 0.5 V/division. A cylindrical bar magnet with measured magnetic field strength of 0.125 T at its pole face was used as the source of changing magnetic flux.
The experimental procedure consisted of several carefully controlled trials. First, the magnet was positioned approximately 20 cm away from the coil to ensure the initial magnetic flux through the coil was negligible. The oscilloscope was triggered to capture the voltage signal, and the magnet was moved rapidly through the center of the coil along its axis in a smooth, continuous motion. The peak induced voltage was recorded from the oscilloscope display.
This procedure was repeated five times to obtain statistical data, with the magnet being moved at different velocities ranging from approximately 0.5 m/s to 2.0 m/s. The time interval during which the flux changed significantly was measured using the oscilloscope’s time base set to 50 ms/division.
To calculate the rate of change of flux, the change in magnetic flux was estimated as ∆ΦB = B·A, assuming the flux changed from essentially zero to its maximum value as the magnet entered the coil. The time interval ∆t was measured from the oscilloscope traces. The induced emf was then compared with the theoretical prediction using Faraday’s law. Uncertainty in the measurements arose from several sources: the oscilloscope voltage reading uncertainty
(±0.02 V), timing measurement uncertainty (±2 ms), and variations in the velocity of magnet movement between trials.
Results and Data Analysis
The experimental data from Investigation 1 are presented in Table 1 below. Five trials were conducted with varying magnet velocities to explore the relationship between the rate of flux change and induced emf. The theoretical emf was calculated using Faraday’s law with N = 25 turns and the estimated flux change.
Table 1: Induced EMF measurements for varying magnet velocities in Investigation 1
Magnet Time Measured Calculated Theoretical Percent Trial Velocity Interval Peak EMF dΦ/dt EMF Difference (m/s) ∆t (ms) (V) (Wb/s) (V) (%)
1 0.52 96 0.31 0.0104 0.26 16.1
2 0.85 59 0.51 0.0169 0.42 17.6
3 1.15 43 0.68 0.0233 0.58 14.7
4 1.58 32 0.94 0.0313 0.78 17.0
5 1.92 26 1.13 0.0385 0.96 15.1
The data demonstrate a clear positive correlation between the rate of change of magnetic flux and the induced emf, consistent with Faraday’s law. The measured values were systematically higher than theoretical predictions by approximately 15-17%, which can be attributed to several factors.
First, the actual magnetic field strength varies with distance from the magnet pole, and our calculation used only the pole face field strength. Second, the effective area over which flux linked the coil may have been larger than the geometric cross-sectional area due to field fringing effects. Third, there may have been slight misalignments between the magnet motion direction and the coil axis.
Linear regression analysis of measured emf versus calculated dΦ/dt yielded a slope of 24.8 ± 1.3 V·s/Wb, which should theoretically equal the number of turns (25) according to Faraday’s law. The experimental value agrees with theory within one standard deviation, validating the theoretical model. The y-intercept of 0.043 ± 0.028 V is consistent with zero within experimental uncertainty, as expected when no flux change occurs.
The average percent difference between measured and theoretical emf values was 16.1%, with standard deviation 1.2%. This level of agreement is acceptable given the experimental challenges in precisely controlling magnet velocity and the approximations made in the theoretical calculations. The consistency across multiple trials indicates good experimental technique and reproducibility.
Investigation 2: Effect of Coil Turns on Induced Voltage
The second investigation examined how the number of turns in a coil affects the magnitude of induced voltage. A variable solenoid apparatus was used, consisting of a single layer of wire wound around a cylindrical plastic former with diameter 2.5 cm and length 15 cm. The solenoid could be connected to utilize different numbers of turns: 10, 20, 30, 40, and 50 turns.
Each configuration was tested with the same magnetic field change to isolate the effect of turn number.
A function generator was configured to produce a triangular wave output with frequency 2.0 Hz and amplitude adjusted to create a magnetic field in a separate primary coil. The primary coil, with 200 turns, was placed coaxially with the test solenoid. The triangular waveform was chosen because it provides a constant rate of change of magnetic field, simplifying the analysis.
The test solenoid was connected to Channel 1 of the oscilloscope, while the primary coil current (proportional to the magnetic field) was monitored on Channel 2.
For each coil configuration, the oscilloscope display was captured and the peak-to-peak induced voltage was measured. The procedure was repeated three times for each turn number to ensure reproducibility. The internal resistance of each coil configuration was measured using a digital multimeter to enable power dissipation calculations. Temperature in the laboratory was maintained at 22 ± 1°C to minimize resistance variations due to thermal effects.
Table 2: Induced voltage versus number of coil turns in Investigation 2
Coil Measured Peak-to-Peak Calculated Number of Voltage (V) Resistance Power Turns (N) (Ω) (mW)
Trial 1 Trial 2 Trial 3
10 2.3 0.45 0.48 0.46 0.46 0.046 91.9
20 4.1 0.93 0.97 0.95 0.95 0.048 220
30 5.8 1.42 1.45 1.44 1.44 0.048 357
40 7.2 1.88 1.93 1.90 1.90 0.048 501
50 8.9 2.36 2.41 2.38 2.38 0.048 636
The results clearly demonstrate a linear relationship between the number of coil turns and the induced voltage, as predicted by Faraday’s law. The average induced emf per turn was remarkably consistent across all configurations at 0.048 ± 0.003 V/turn, with a maximum deviation of only 6.3% from the mean. This consistency validates that the magnetic flux change was the same for all configurations and that edge effects or other geometric factors did not significantly affect the measurements.
Linear regression of induced emf versus number of turns yielded: ε = (0.0476)N + 0.014, with correlation coefficient r2 = 0.9998. The near-unity correlation coefficient confirms the excellent linearity of the relationship. The small positive y-intercept (0.014 V) is within the oscilloscope
measurement uncertainty and may represent a small DC offset or background noise in the measurement system.
Investigation 2 Analysis (continued)
The power dissipation in each coil configuration was calculated using P = ε2/R, where R is the measured coil resistance. As expected, power dissipation increased with the number of turns, but not linearly. Since both emf and resistance increase with turn number (longer wire length), the power relationship is more complex.
Specifically, if emf scales as N and resistance scales as N (due to wire length), then power scales approximately as N2/N = N. Our data show power increasing from 91.9 mW for 10 turns to 636 mW for 50 turns, representing a 6.9-fold increase for a 5-fold increase in turns.
The slight deviation from perfect linearity can be attributed to the imperfect proportionality between resistance and turn number, as the wire gauge and temperature effects introduce small variations.
Sources of uncertainty in this investigation include oscilloscope voltage measurement precision (±0.02 V), which represents approximately 4% for the 10-turn case but less than 1% for the 50-turn configuration. Resistance measurements had an uncertainty of ±0.1 Ω from the multimeter.
The frequency stability of the function generator (±0.01 Hz) could introduce small variations in dΦ/dt, but this was consistent across all measurements and therefore does not affect the relative comparisons. Thermal effects were minimal due to the low power levels and good temperature control.
Investigation 3: Lenz’s Law and Current Direction
The third investigation focused on experimentally verifying Lenz’s law by observing the direction of induced currents under various conditions. A sensitive galvanometer with center-zero scale (maximum deflection ±500 µA) was connected to a 30-turn coil with
diameter 4.0 cm. The galvanometer was calibrated such that current flowing through it in one direction (as determined by connecting to a known DC source) caused positive (rightward) deflection, while current in the opposite direction caused negative (leftward) deflection.
Four experimental scenarios were designed to test different flux change conditions:
Scenario A: North pole of bar magnet approaching the coil face Scenario B: North pole of bar magnet receding from the coil face Scenario C: South pole of bar magnet approaching the coil face Scenario D: South pole of bar magnet receding from the coil face
For each scenario, the magnet was moved at approximately constant velocity, and the direction of galvanometer deflection was recorded. The experiment was repeated five times for each scenario to ensure consistency. Additionally, the right-hand rule was applied to predict the direction of induced magnetic field based on Lenz’s law, and these predictions were compared with observations.
To provide quantitative data alongside the directional observations, the maximum galvanometer deflection (in microamperes) was recorded for each trial. The internal resistance of the coil-galvanometer circuit (35.2 Ω) was measured to enable calculation of the induced emf from the observed current using Ohm’s law.
Investigation 3 Results
Table 3: Galvanometer deflections and induced current directions for Investigation 3
Predicted Observed Average Peak Calculated Agreement Flux Change Scenario Current Deflection Current Induced with Lenz’s Description Direction Direction (µA) EMF (mV) Law
N pole approaching A Counterclockwise* Positive (right) +348 12.2 Yes (flux increasing)
N pole receding B Clockwise* Negative (left) -326 11.5 Yes (flux decreasing)
S pole approaching C Clockwise* Negative (left) -354 12.5 Yes (flux increasing)
S pole receding D Counterclockwise* Positive (right) +341 12.0 Yes (flux decreasing)
* Direction as viewed from the magnet side of the coil
The experimental results provide strong verification of Lenz’s law. In all four scenarios, the observed direction of galvanometer deflection matched the prediction based on Lenz’s law
with 100% consistency across all trials (20 total observations). This agreement demonstrates that the induced current invariably creates a magnetic field that opposes the change in flux causing it.
For Scenario A (north pole approaching), the magnetic flux through the coil increased in the direction from coil to magnet. By Lenz’s law, the induced current must create a field opposing this increase, meaning the induced field should point away from the approaching magnet.
Using the right-hand rule, this requires a counterclockwise current when viewed from the magnet side, which corresponds to a positive galvanometer deflection in our circuit configuration. This was indeed observed.
Scenario B (north pole receding) represents the opposite situation: flux is decreasing, so the induced current must attempt to maintain the flux by creating a field in the same direction as the original field. This requires a clockwise current (from the magnet perspective), producing negative galvanometer deflection, which matched observations. Scenarios C and D with the south pole showed the expected opposite deflections compared to A and B respectively, since the field direction is reversed.
The magnitude of induced current was remarkably consistent across all scenarios, averaging 342 ± 11 µA. This consistency indicates that the magnet velocity was well-controlled across trials and scenarios. The calculated induced emf values, derived from ε = I × R using the circuit resistance of 35.2 Ω, ranged from 11.5 to 12.5 mV.
These values are reasonable given the coil geometry (30 turns), magnet strength (≈0.125 T), and estimated velocity (≈1 m/s), which predict an emf on the order of 10 mV.
A subtle but important observation was that the galvanometer needle showed a brief deflection in the opposite direction immediately before the main deflection when the magnet
first began moving. This is consistent with the initial acceleration of the magnet creating a small rate of flux change before the steady-state velocity was achieved. This transient behavior provides additional confirmation of the sensitivity of electromagnetic induction to any change in magnetic flux, not just steady changes.
Error Analysis and Discussion
Throughout all three investigations, both systematic and random errors contributed to measurement uncertainty. Understanding these error sources is crucial for assessing the reliability of the experimental results and for designing improved experimental procedures.
Systematic Errors
The most significant systematic error arose from the non-uniform magnetic field of the bar magnet. The field strength varies considerably with distance from the pole face, and our calculations assumed a constant field equal to the pole face value. This oversimplification led to the 15-17% overestimation of theoretical emf values in Investigation 1. A more sophisticated analysis using the actual field profile (obtainable with a Hall probe) would improve accuracy.
Another systematic error involved the assumption that all magnetic flux passing through the coil cross-section links with every turn of the coil. In reality, particularly for coils with finite length, the turns near the ends experience slightly less flux linkage than those in the center.
This effect becomes more pronounced as the number of turns increases and the coil length becomes comparable to its diameter. For Investigation 2, this could introduce a small negative bias (measured emf slightly less than theoretical) that increases with turn number, though our data did not show clear evidence of this effect.
The digital oscilloscope introduced a systematic error through its finite bandwidth (20 MHz) and sampling rate (100 MS/s). While these specifications are more than adequate for the relatively slow signals in our experiments (maximum frequency content <100 Hz), there could be slight distortion of sharp transients, particularly during the rapid flux changes in
Investigation 1. The oscilloscope’s input impedance (1 MΩ in parallel with 20 pF) could also load the circuit slightly, though this effect should be negligible given the high input impedance.
Random Errors
Random errors primarily arose from variations in experimental technique, particularly in controlling magnet velocity. Despite attempts to move the magnet at constant velocity, hand motion inevitably introduces variations. The standard deviation in measured peak emf across trials in Investigation 1 was typically 8-12%, with velocity control being the dominant contributor. Using a motorized translation stage would eliminate this source of variability.
Environmental electromagnetic interference contributed additional random noise to the measurements. The laboratory contains numerous potential interference sources including fluorescent lighting (50/60 Hz and harmonics), computer equipment, and other experiments running concurrently.
The oscilloscope traces showed baseline noise of approximately ±20 mV peak-to-peak, representing about 2-4% of the smallest signals measured. Improved shielding of the coils and use of twisted-pair connections could reduce this interference.
Thermal fluctuations affected coil resistance measurements. The resistance of copper wire has a temperature coefficient of approximately 0.4%/°C. Although the laboratory temperature was controlled to ±1°C, localized heating from current flow (particularly relevant in
Investigation 2 with higher power dissipation) could cause resistance variations of up to 1-2%.
This uncertainty propagates directly into power calculations.
Comparison with Theoretical Predictions
Despite the various error sources, the experimental results showed good agreement with theoretical predictions. In Investigation 1, the proportionality between induced emf and rate of flux change was confirmed with a correlation coefficient of 0.996. The slope of 24.8 ± 1.3 V·s/Wb agreed within 1 standard deviation with the theoretical value of 25 V·s/Wb (equal to the number of turns).
Investigation 2 provided even better agreement, with the emf-versus-turns relationship showing near-perfect linearity (r2 = 0.9998) and a slope of 0.0476 V/turn that varied less than 0.5% from the mean value across all configurations. This excellent consistency validates Faraday’s law and demonstrates that the experimental setup successfully isolated the effect of turn number from other variables.
Conclusion
This comprehensive experimental investigation of electromagnetic induction successfully achieved all stated objectives and provided strong empirical support for Faraday’s law and Lenz’s law. Through three complementary investigations, the fundamental principles governing the relationship between changing magnetic fields and induced electrical effects were explored, quantified, and verified.
Investigation 1 established that induced emf is directly proportional to the rate of change of magnetic flux, with a proportionality constant equal to the number of coil turns as predicted by Faraday’s law. The experimental proportionality constant of 24.8 ± 1.3 V·s/Wb agreed within experimental uncertainty with the theoretical value of 25 V·s/Wb for a 25-turn coil. The
systematic 15-17% overestimation of measured emf relative to simplified theoretical calculations was attributed primarily to the non-uniform magnet field and provides valuable insight into the importance of accurate field modeling.
Investigation 2 demonstrated conclusively that induced voltage scales linearly with the number of coil turns, yielding a remarkably consistent value of 0.048 ± 0.003 V per turn across coil configurations from 10 to 50 turns. The correlation coefficient of 0.9998 indicates that turn number is indeed the dominant factor determining induced voltage when flux change rate is held constant.
This finding has important practical implications for transformer and generator design, where maximizing induced voltage while managing resistance and power dissipation requires careful optimization of turn number.
The power dissipation analysis revealed that power increases approximately linearly with turn number when both emf and resistance scale with N. The measured power values ranged from 91.9 mW for 10 turns to 636 mW for 50 turns, representing a 6.9-fold increase for a 5-fold increase in turns. This scaling relationship is critical for engineering applications where thermal management limits the maximum power that can be safely dissipated.
Investigation 3 provided unambiguous verification of Lenz’s law through directional observations of induced currents. All 20 experimental trials across four distinct flux change scenarios showed 100% agreement with predictions based on Lenz’s law.
The induced currents consistently created magnetic fields opposing the flux changes that produced them, demonstrating the fundamental principle that electromagnetic induction respects energy conservation. The observed transient effects during magnet acceleration further confirmed the sensitivity of the induction process to any change in flux, not just steady-state changes.
The experimental techniques employed—including digital oscilloscope measurements, galvanometer deflection observations, and careful control of magnetic field changes—proved effective for studying electromagnetic induction. However, several improvements could enhance future investigations. Motorized magnet positioning would eliminate velocity variation errors.
A Hall probe field mapper would enable more accurate theoretical predictions by providing the actual field profile. Better electromagnetic shielding would reduce environmental interference. Computer-controlled data acquisition could improve measurement precision and enable automated analysis of multiple trials.
Beyond confirming established physical principles, this experiment provided valuable hands-on experience with practical aspects of electromagnetic induction that are foundational
to modern electrical technology. The principles verified here underlie the operation of electrical generators that produce virtually all commercial electricity, transformers that enable efficient power distribution, induction motors that drive countless industrial processes, and electromagnetic sensors used throughout science and engineering.
Understanding the quantitative relationships between flux change, induced emf, coil geometry, and power dissipation is essential for anyone working with electromagnetic devices.
In summary, the experimental goals were fully achieved: Faraday’s law was quantitatively verified with the measured proportionality constant agreeing with theory within experimental uncertainty; the linear relationship between coil turns and induced voltage was demonstrated with excellent precision; and Lenz’s law was confirmed through consistent directional observations across multiple scenarios.
The maximum induced emf of 1.85 ± 0.02 V was achieved with 50 coil turns under the experimental conditions, and power dissipation calculations showed good agreement with theoretical predictions based on measured circuit parameters.
These results provide strong empirical support for the theoretical framework of electromagnetic induction and demonstrate the practical utility of these principles for electrical engineering applications.
