UNIT I- INTRODUCTION TO SOFTWARE RADIO
The Need for Software Radios. Characteristics and Benefits of a Software Radio. Design
Principles of a Software Radio, Essential functions of the software radio, basic SDR, hardware
architecture, Computational processing resources, software architecture, top level component
interfaces, interface topologies among plug and play modules.
The Need for Software Radios
A Software-Defined Radio (SDR) is a communication system that utilizes a
programmable medium to implement radio components like mixers, filters,
modulators/demodulators, and detection circuits. This approach offers enhanced flexibility and
capabilities in the system. A well-designed Software-Defined Radio (SDR) typically comprises
various fixed components, such as an antenna, front-end RF hardware, and an ADC or DAC. The
remaining functionalities are implemented in a programmable medium, referred to as "soft"
components.
what Software is….
Software, is that part of a computer system that consists of encoded information or
computer instructions, in contrast to the physical hardware from which the system is built.
What Radio is…
Radio is the technology of using radio waves to carry information, such as sound, by
systematically modulating some property of electromagnetic energy waves transmitted through
space, such as their amplitude, frequency, phase, or pulse width.
2
When radio meets software…
• Data communication networks plays a vital role in any modern society.
• They are used in numerous applications, including financial transactions, social interactions,
education, national security, and commerce.
• With the exponential growth in the ways and means by which people need to communicate -
data communications, voice communications, video communications, broadcast messaging,
command and control communications, emergency response communications, etc.
• Modifying radio devices easily and cost-effectively has become business.
Why Software Meets Radio?
There are certain crucial drawbacks with pure radio systems.
• Least Flexibility
• Design Cost is High
• Possibility of Updating to new technologies is difficult.
These Drawbacks are addressed by incorporating Software along with the Hardware
Radios
ï‚· The Radio in which some or all of the physical layer functions are software defined
ï‚· As the name suggests, a software defined radio is a radio system where the majority of
baseband processing (Physical Layer Functions) are done in software which includes
3
modulation, forward error correction, spreading, filtering, frequency, timing
synchronization, and so on.

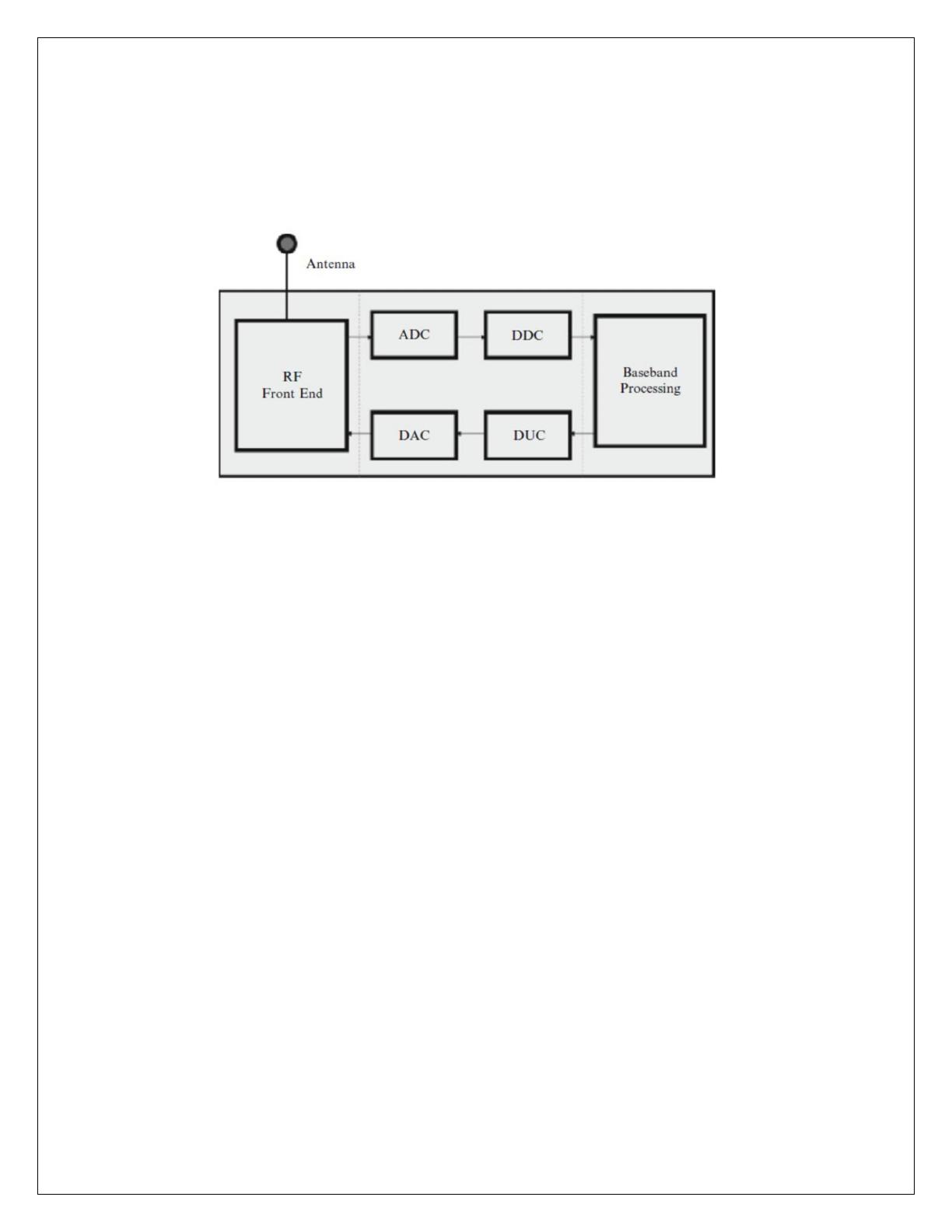

Figure. Block diagram of SDR
Block diagram of a SDR consists of five sections:
 The antenna section, which receives (or transmits) information encoded in radio waves.
 The RF front-end section, which is responsible for transmitting/receiving radio frequency
signals from the antenna and converting them to an Intermediate frequency (IF).
 The ADC/DAC section, which performs analog-to-digital/digital-to-analog conversion.
The digital up-conversion (DUC) and digital down-conversion (DDC) blocks, which
essentially perform modulations of the signal on the transmitting path and demodulation
of the signal on the receiving path.
 The baseband section, which performs operations such as connection setup, equalization,
frequency hopping, coding/decoding, and correlation, while also implementing the link
layer protocol.
