Geometry for Enjoyment and Challenge Chapter 5 Section 6 7 Quadrilaterals

Chapter 5 of Geometry for Enjoyment and Challenge focuses on quadrilaterals, including proofs and selected problems. It covers essential concepts such as the properties of parallelograms, rectangles, rhombuses, and squares. This section is ideal for high school geometry students looking to deepen their understanding of quadrilaterals and their characteristics. The chapter includes various proofs and problems to enhance problem-solving skills and geometric reasoning.

Key Points

Explains the properties and proofs related to parallelograms and quadrilaterals.
Includes selected problems to practice identifying special quadrilaterals.
Covers the relationships between angles and sides in various quadrilaterals.
Demonstrates how to prove a quadrilateral is a parallelogram using angle relationships.

394

5 Parallel Lines and Related Figures

5.6 Proving That a Quadrilateral Is a Parallelogram

Statement Reason

1. 𝐶𝐷 ∥ 𝐴𝐵. 1. Given.

2. ∠𝐸𝐷𝐴  ∠𝐶𝐵𝐹. 2. Given.

3. ∠𝐸𝐷𝐴  ∠𝐷𝐴𝐹 . 3. ∥ lines ⇒ alternate interior ∠’s .

4. ∠𝐶𝐵𝐹  ∠𝐷𝐴𝐹 . 4. Transitive property of congruence.

5. 𝐴𝐷 ∥ 𝐵𝐶. 5. Corresponding ∠’s ⇒∥ lines.

6. ABCD is a . 6. If both pairs of opposite sides of a

quadrilateral are

∥

, then the quadrilateral

is a .

Let the measure of the smaller angle be 𝑥.

Then the measure of the larger angle is 3𝑥 + 40.

Any pair of consecutive angles of a parallelogram are supplementary, therefore:

5 Parallel Lines and Related Figures

𝑥 + 3𝑥 + 40 = 180

∴ 4𝑥 = 140

∴ 𝑥 = 35

Therefore the measure of the two angles are 35

◦

, 145

◦

respectively.

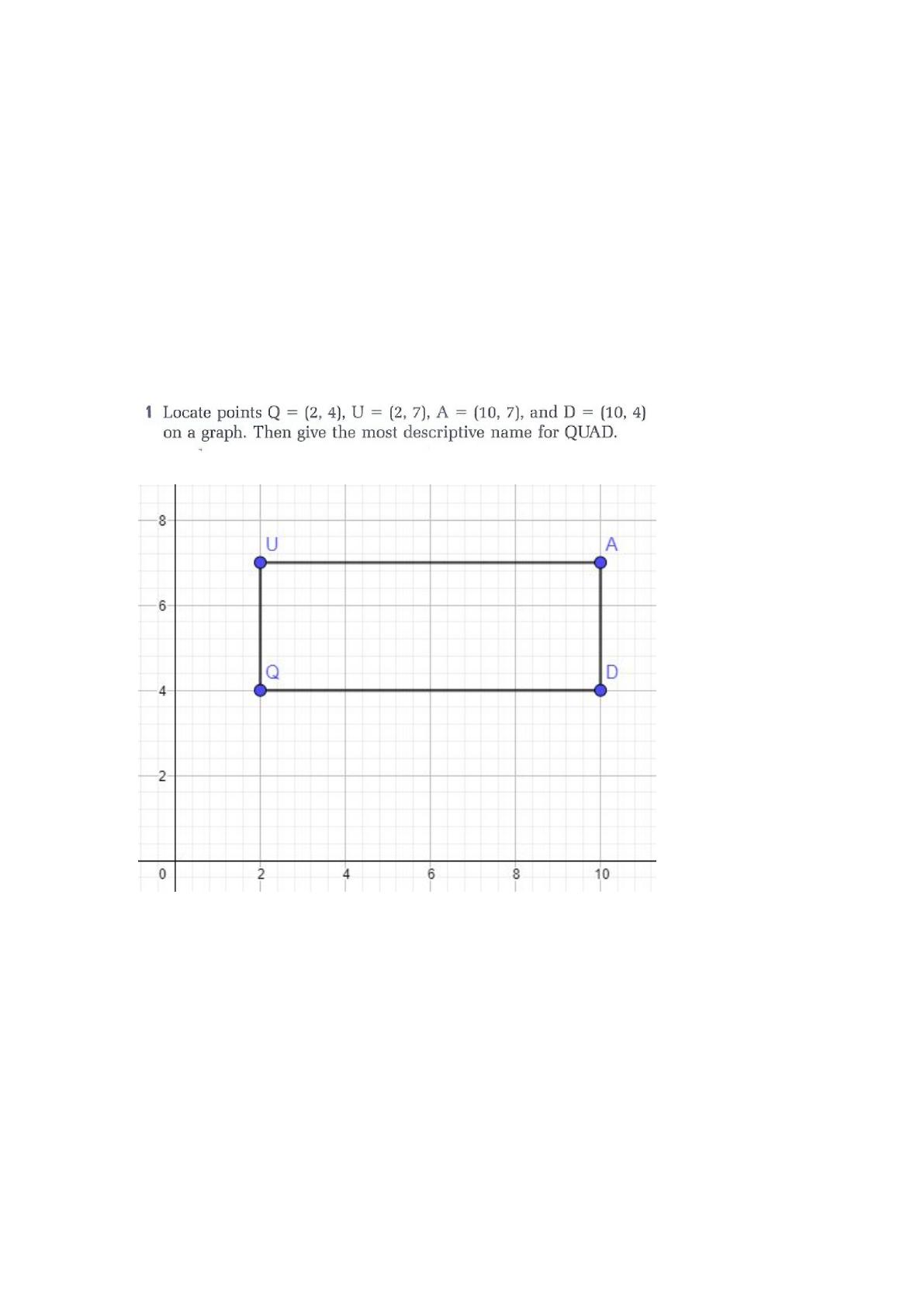

5.7 Proving That Figures are Special Quadrilaterals

Observe that the slope of both pairs of opposite lines are equal, hence the quadrilateral is a

parallelogram.

Further, observe that consecutive sides are parallel to the x,y axes and meet at a right angle, so

the quadrilateral is a rectangle.

Finally, observe that consecutive sides are not congruent, so the quadrilateral is not a square.

5 Parallel Lines and Related Figures

Observe that the slope of both pairs of opposite lines are equal, hence the quadrilateral is a

parallelogram.

Further, observe that consecutive sides are parallel to the x,y axes and meet at a right angle, so

the quadrilateral is a rectangle.

Use the distance formula to find 𝑄𝑈 , 𝑄𝐷:

𝑄𝑈 =

√︁

(−11 − 7)

+ (5 − 5)

= 18

𝑄𝐷 =

√︁

(−11 − (−11))

+ (5 − (−13))

= 18

Consecutive sides are congruent, hence the quadrilateral is a square.

394

Ultimate Exercise Guide by Jeff Nippard PDF

The Miles Circuit

The Hardy Weinberg Equation Pogil

The Four Types of Symmetry in the Plane

The Basics Of Testing A Mass Air Flow (MAF) Sensor

Tcar Exam

FAQs of Geometry for Enjoyment and Challenge Chapter 5 Section 6 7 Quadrilaterals

What types of quadrilaterals are discussed in Chapter 5?

Chapter 5 discusses several types of quadrilaterals, including parallelograms, rectangles, rhombuses, and squares. Each type is defined by specific properties, such as the congruence of opposite sides and angles. The chapter provides proofs to demonstrate these properties and explains how to identify each type based on their characteristics. Understanding these quadrilaterals is essential for solving geometric problems and proofs.

How does the chapter approach proving that a quadrilateral is a parallelogram?

The chapter outlines multiple methods for proving that a quadrilateral is a parallelogram. One method involves showing that both pairs of opposite sides are parallel. Another method uses angle relationships, such as proving that alternate interior angles are congruent. These proofs are essential for students to grasp the foundational concepts of geometry and develop logical reasoning skills.

What is the significance of angle relationships in quadrilaterals?

Angle relationships are crucial in understanding the properties of quadrilaterals. For example, consecutive angles in a parallelogram are supplementary, which means they add up to 180 degrees. This relationship helps in proving various properties and in solving problems related to quadrilaterals. Recognizing these relationships allows students to apply geometric principles effectively in proofs and real-world applications.

What types of problems can students expect in this chapter?

Students can expect a variety of problems in this chapter, including identifying types of quadrilaterals based on given properties, solving for unknown angles, and proving that a given quadrilateral meets the criteria for being a parallelogram. These problems are designed to enhance critical thinking and problem-solving skills, making them essential for mastering the concepts of quadrilaterals in geometry.
