The Basics Of Testing A Mass Air Flow (MAF) Sensor

The Basics of Testing a Mass Air

Flow (MAF) Sensor

A MAF sensor can be tested without a scan tool. How? With a digital multimeter. Yes, a

digital multimeter can be used in testing the Mass Air Flow (MAF) Sensor. This

test is almost but not exactly the same for all types of MAF Sensors. So, what's the

difference?

The biggest difference between MAF Sensors is the output type of the MAF Sensor's

Signal to the ECM (Fuel Injection Computer). This signal may be an Analog Voltage

Signal or a Hertz Frequency Signal. Both types can be tested with a multimeter! Ok,

now where do you start?

You can start here, 'cause this site is full of specific MAF Sensor Testing articles to

address the specific vehicle you're working on.

MAF Sensor Tests are available for the following makes: Buick, Chevrolet, Ford,

GMC, Isuzu, Mazda, Mercury, Lexus, Nissan, Oldsmobile, Toyota, Volkswagen,

and Volvo.

Below is a complete example of a MAF Test as it applies to a 1994 Nissan D21 Pick Up.

So if you want to take a look at how simple and easy a MAF Sensor Test can be, read

on!!

If you want to skip this article and go directly to this site's index of MAF Sensor Tests,

click on the link that says 'See full list of Makes...' on the Box titled Mass Air Flow

Sensor Tests on the right of this page. This is the second from the top box.

Example of MAF Sensor Test

The most common symptoms of a BAD MAF Sensor are:

1. A MAF sensor code.

2. Lean and/or Rich code(s).

3. Fuel Trim code(s).

4. A tremendous lack of power upon acceleration.

5. Black smoke coming from the tail-pipe.

6. Vehicle may idle rough and stall.

As stated before, the Mass Air Flow Test is a very easy and simple test but there are

a couple of things that have to be done first.

The most important thing to do first, is to make sure your MAF Sensor isn't

contaminated with dirt and/or oil, since the tests in this article assume the MAF sensor

isn't contaminated. Why? Because this MAF Sensor is a hot-wire type that easily

becomes contaminated with dirt and stuff from the air filter not performing its job.

Cleaning this type of Sensor is easy since the hot-wires are clearly visible to the eye

(with the sensor removed).

This contamination will cause the sensor to produce a lower reading to the ECM

(Engine Control Module = Fuel Injection Computer). The most common symptom of this

contamination is a hesitation or a time-lag in engine responce that is felt after the

accelerator pedal is depressed. As stated in the list at the beginning of this article, other

symptoms may include but are not limited to: higher tailpipe emissions and diagnostic

codes that may illuminate the "Check Engine" light.

If cleaning the MAF Sensor, use an electronics spray cleaner to do it with. This in itself

may solve your problem. Don't use carb or brake clean spray. These solvents can

damage the sensor. Also, don't attempt to physically clean the sensor with anything.

Check your local autopart store, they will have MAF Sensor cleaning spray.

After having checked for contamination the other things that you must check for (and

eliminate if present) are:

1. That the engine does not have any vacuum leaks.

2. That there are no ignition system misfires. A misfire condition will skew

the results of the test you'll perform here.

If the above conditions exist, repairing them first will more than likely solve your

vehicle's drive-ability issue without having to test the MAF Sensor, if not continue with

the MAF Test in this article.

THE MAF TEST

OK, you're gonna' start by checking the Mass Air Flow (MAF) Sensor basics. These

are 12 Volts and Battery ground to the MAF Sensor. After that, we'll test the actual

performance of the MAF Signal as the engine is running. Use a digital multimeter for all

tests where a multimeter is called for.

The MAF sensor produces an analog voltage signal. At idle with the engine at its normal

operating temperature, the MAF sensor produces a signal of 1.0 volts to 1.7 volts. The

MAF Sensor's operating voltage range is from .0 to 5 volts.

The MAF Signal's voltage is directly related to amount of air the engine is breathing.

Common sense tells us that the engine will breathe in more air at 2500 RPMs than at an

idle of 900 RPMs.

So keeping this in mind, the Voltage value on the multimeter will be greater at 2500

RPMs than at 900 RPMs

Now, when testing this voltage signal, the important thing to know is not an actual volts

number at a specific RPM, but to look for crazy and extreme fluctuations in the voltage

signal that do not correspond to the actual air intake (RPM's) of the engine. For

example: If at Idle the voltage reading starts to spike up and down without you

accelerating the engine.

In the TEST 3 section of this article, I'll show how you'll use a base voltage reading at

idle from the MAF Sensor that will help you to confirm that the MAF Sensor is bad or

not.

Lastly, these tests are not designed to diagnose an intermittent problem with the MAF

sensor. They are designed to diagnose a hard fault with the sensor.

TEST INFO: A Description Of The Circuits

To effectively test the MAF Sensor, we

need to know what each wire does in

the MAF sensor connector.

The safest way to test these circuits, and

the method I always use, is using a wire

piercing probe. (click here to see a picture

of this tool). Using this probe, I don't have

to disconnect the MAF Sensor's connector

to probe the front of the female terminal

and possibly risk damaging it.

Independent of the method you use, be

careful not to damage the wire or the

female terminal. Take all safety precautions.

IMPORTANT- All of the tests are ON CAR TESTS, do not remove or disconnect the

mass air flow sensor from the vehicle or from its plumbing.

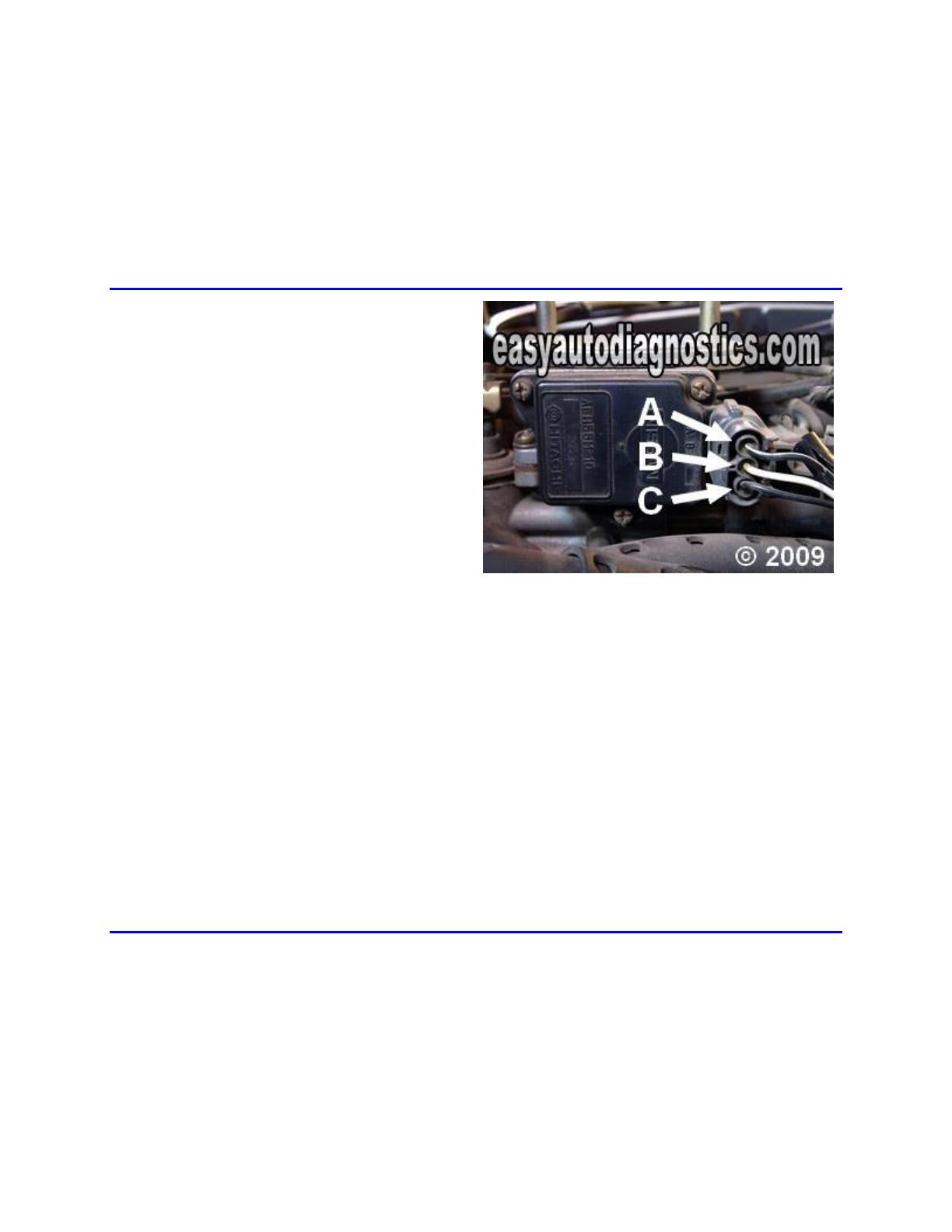

As you've already noticed, the photo (above) has the MAF Connector lettered A thru' C.

If you take a close look at the MAF Sensor, you'll see these same letters on it too. I'll be

using these letters for the circuit descriptions. Here's the description of each circuit

below.

 Letter A- 12 Volt battery power.

 Letter B- MAF Signal.

 Letter C- Ground. Provided by the ECM internally.

We're ready to get started...

Testing the Power

Circuit of the Mass Air Flow Sensor

The very first thing that we'll do is check that the MAF Sensor is receiving 12

volts. Again, the procedure I recommend to use (to accomplish all of the tests below) is

to use a test probe that pierces thru' the wire's insulation (click here to see a picture of

this tool). DO NOT insert anything into the female terminal.

Whatever method you use, the key here is not to damage the female terminal or the

wire. Again, be careful. Use common sense and take all necessary safety precautions.
