Analysis and Evaluation of Grad-CAM Explanations
Rajmund Nagy
rajmundn@kth.se
Doumitrou Daniil Nimara
nimara@kth.se
Livia Qian
liviaq@kth.se
Abstract
In this project, we reimplement the paper Grad-CAM: Visual Explanations from
Deep Networks via Gradient-based Localization from 2016 which introduced a vi-
sual explanation method for convolutional neural networks. Our experiments focus
on evaluating the reproducibility of the results shown in the paper (e.g. localization
task, pointing game, comparison with occlusion maps); moreover, we propose
novel experiments in order to better understand the strengths and weaknesses of
this technique. In this regard, we 1) analyze Grad-CAM’s ability to explain chest
X-Rays (medicine is a field in which localization is of utmost importance) and
compare its localization capability with other explanation methods; 2) measure its
fidelity and contrastivity; and 3) introduce a new metric (to the best of our knowl-
edge) based on the notion of sensitivity. Our results advocate for Grad-CAM’s
efficacy in CNNs and provide new information regarding its particularities; for
instance, we show that great network performance does not translate as smoothly to
good localization in the more specialized medical dataset (where we achieve results
comparable with other papers). Furthermore, our implementation of Grad-CAM++
provides a promising alternative, outperforming Grad-CAM in the aforementioned
difficult dataset. Lastly, our fidelity experiments propose that the method might get
outperformed by non-CNN based explanation methods when a large portion of the
network is non-convolutional.
1 Introduction
Despite the increase in the commercial use of deep learning, many neural networks are still treated as
black boxes. This is particularly problematic in tasks where mistakes are exceptionally costly (e.g.
self-driving cars). Many visual explanation methods have been developed in recent years to tackle
this issue. In this project, we investigate the paper "Grad-CAM: Visual Explanations from Deep
Networks via Gradient-based Localization" [1] from a reproducibility perspective and carry out three
new experiments to further evaluate the proposed technique. Our code is publicly available here
1
.
The remainder of this report is structured the following way: Section 2 will introduce related work
in order to better conceptualize Grad-CAM’s reasoning, approaches and strengths. We will then
summarize Grad-CAM in more detail in Section 3. After providing a firmer understanding of the
method, we will analyze the original paper’s reproducibility in Section 4. In Section 5, we will
explore new experiments to examine Grad-CAM in novel ways, both quantitatively and qualitatively.
Finally, we will summarize our findings and share our greatest challenges in Sections 6 and 7.
2 Related work
In 2016, Zhou et al. [2] showed that global average pooling layers (GAP) can help CNNs retain
their ability to localize objects despite being only trained for image classification. They proposed
Class Activation Maps (CAM), which visualize a network’s attention on a given image when making
1
GitHub Repository
HT20 Deep Learning Advanced, DD2412, KTH Royal Institute of Technology.

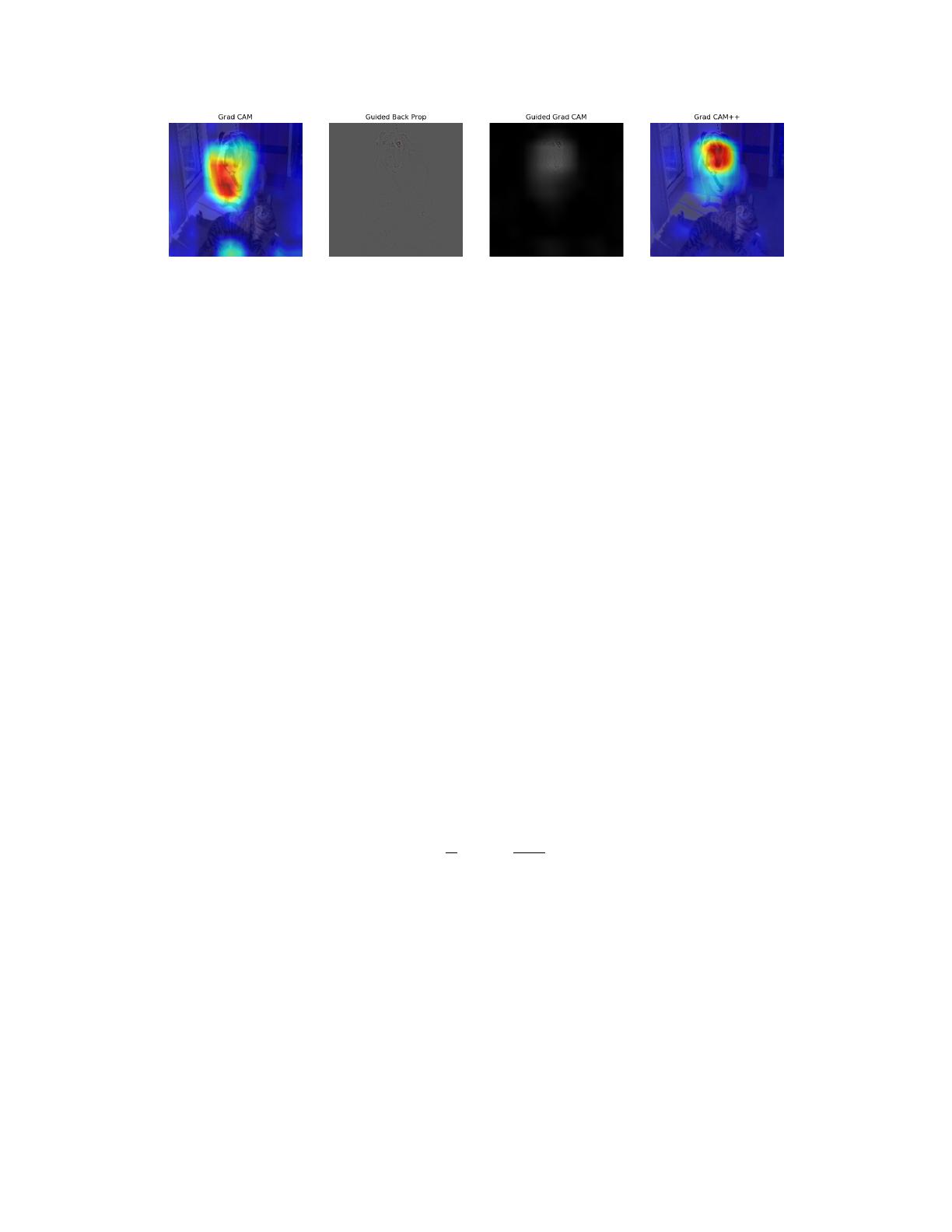

Figure 1: Exemplary visualization of the implemented methods on VGG-16 for one of the dog classes.
Grad-CAM++ focuses on more relevant dog features (face). See Appendix for more examples.
a certain prediction by combining feature maps in the final convolutional layer. However, as the
calculation of CAMs poses strict constraints on the network architecture, their technique cannot be
applied to most CNNs. In 2017, Selvaraju et al. [1] removed these constraints with Grad-CAM
(Gradient-weighted CAM) by using the gradient information to represent the importance of each
feature map. Two limitations of CAM explanations remained – namely, that they often fail to capture
the entire object and that there is a consistent drop in localization performance when multiple instances
of the same class are present. Chattopadhyay et al. [3] addressed them both with Grad-CAM++,
where positive pixel-wise gradients are incorporated into the weights.
The method of Integrated Gradients [4] proposes a more thorough inspection of the input. It considers
the linear path between a baseline image (e.g. full black) and the actual input, and calculates the
importance of each spatial location by accumulating the pixel-wise gradients along this path. On
the other hand, SHAP (SHapley Additive exPlanations) [5] aims to quantify the contribution of a
pixel
z
i
by taking its average marginal contributions across all possible feature subgroups (Shapley
value). The intuition is fairly simple. The features can be seen as agents cooperating in a game of
correctly classifying an image. Each agent can cooperate with 0, 1, ...,
|features| − 1
other features
toward the goal. Then, the importance of each agent can be viewed as their individual contribution to
the outcome, averaged over all possible groups. SHAP uses sampling techniques to measure these
quantities and return them as explanations.
3 Methods
Grad-CAM [1] is a visual explanation method that can argue for why a network has made a certain
prediction for a specific image. Given a pretrained CNN-based model, an image and a class of interest
c
, it generates a heatmap from the relevant layer’s feature map activations by first forward propagating
the image and then backpropagating the gradients to the layer of interest. Before backpropagation,
the gradients should be set to zero for every class except
c
. The heatmap is defined as the linear
combination of the feature map activations. The weight belonging to a specific feature map
A
k
is
denoted by the neuron importance weight α
c
k
:
α
c
k
=
1
Z
X
i
X
j
∂y
c
∂A
k
ij
(1)
where
y
c
is the class score belonging to
c
and
Z
is a normalization factor. Since we are only interested
in the features that have a positive influence on
c
, pixels with negative values can be canceled with
ReLU. The heatmap can then be calculated as
L
c
Grad-CAM
= ReLU
X
k
α
c
k
A
k
!
(2)
Grad-CAM is a generalization of CAM [2] as it works on any convolutional layer (CAM only worked
on the last convolutional layer if it was followed by a single fully connected softmax classification
layer). This makes it applicable to a wide range of CNN families and capable of generating heatmaps
of different detailedness. Another positive attribute it has is that it does not interfere with the base
network’s architecture, thus allowing for computational efficiency and adaptability.
Guided Grad-CAM, a method also presented by Selvaraju et al. [1], is a combination of Grad-CAM
and Guided Backpropagation [6]. It shows the fine-grained details and the relevant edges in an image
2
Table 1: Classification and localization errors measured on the ILSVRC-2015 validation dataset. We
always used the last convolutional ReLU layer for visualization.
Model
Classification error (%) Localization error (%)
Top-1 Top-5 Top-1 Top 5
AlexNet 44.58 (44.2) 21.69 (20.8) 68.04 (68.3) 56.18 (56.6)
GoogLeNet 32.46 (31.9) 11.82 (11.3) 56.89 (60.09) 45.44 (49.34)
VGG-16 30.94 (30.38) 10.87 (10.89) 55.82 (56.51) 44.82 (46.41)
at the same time as localizing the important areas by overlaying the Grad-CAM heatmap on the
image created by Guided Backpropagation. In accordance with this, it can be calculated by taking the
element-wise product of the outputs of these two methods.
Lastly, Grad-CAM++ [3] is a proposed improvement of Grad-CAM which applies a ReLU on the
gradients
∂y
c
∂A
k
i,j
to filter out gradients that have a negative influence on the output class (similarly to
Guided Backpropagation). Figure 1 presents examples of images produced by the methods mentioned.
Throughout our experiments, we used VGG-16/VGG-16-BN, AlexNet and GoogLeNet (all three
pretrained on ImageNet), DenseNet (pretrained on NHS Chest-X-ray14 [7]) and trained a simple
three-layer convolutional network on MNIST (see Section 5). For the reproducibility tasks, we
used the ILSVRC 2015 validation dataset [8] that contains 50k images of 1,000 categories and the
corresponding bounding boxes. Chest-X-ray14 contains 112,120 X-ray images of 14 + 1 different
classes (14 of them representing detectable diseases and one implying "no findings"). As bounding
boxes are only available for 984 images, our experiment on medical images was restricted to them.
The images were resized to 224 × 224 and the bounding boxes were modified accordingly.
4 Reproducibility study
Localization ability
An intuitive application of Grad-CAM’s heatmaps is in localization tasks
where we are interested in not only the occurrence but also the location of an object. This task can
be approached with bounding boxes; it can be viewed as a supervised regression problem where the
label
y = (x
min
, y
min
, x
max
, y
max
)
is compared against ground truth bounding boxes. Generating
labeled bounding boxes can be costly, especially in fields where expertise is needed (e.g., medical
data). Because of this, it can be interesting to use them in a weak localization task where the network
is not explicitly trained on bounding boxes. Given an image, we can generate a heatmap and convert it
to a binary map by e.g. using a
15%
threshold. This binary image will then contain multiple clusters
around which bounding boxes may be drawn. We isolate the one with the largest area and compare it
with the true bounding box by computing the Jaccard similarity
J(box
1
, box
2
) =
|box
1
∩box
2
|
|box
1
∪box
2
|
, also
known as IoU score. We can then regard this as a binary classification problem where
(m, n)
is the
size of box
real
and positive predictions can be counted as:
box
predicted
≃ box
real
⇐⇒ J(box
predicted
, box
real
) ≥ min
0.5,
m · n
(m + 10)(n + 10)
(3)
Our results are shown in Table 1. The numbers generally lie within
±1%
of those found in the original
paper (these are in parentheses in the table). The slight differences can be attributed to the lack of
information about the layer that was used (in the case of VGG) and more importantly preprocessing
(image rescaling). We rescaled the images to
256 × 256
before applying a
224 × 224
center crop as
this is standard procedure for ImageNet. Overall, Grad-CAM provided fairly impressive localization
results, considering that the model was not explicitly trained for this task.
Pointing game
Pointing game is another technique for investigating Grad-CAM’s localization
ability. Originally introduced by Zhang et al. [9], this method extracts the maximally activated point
from a heatmap and checks whether it is within the bounding box of the target object category – which,
in this case, is a ground truth label. The localization accuracy is then defined as
Acc =
#Hits
#Hits+#Misses
where a point within the bounding box is counted as a hit. In the Grad-CAM paper [1], this metric –
henceforth referred to as recall – is extended with the fact that now the top-5 predictions are used
3
/ 16
